Tips
Repeat the above steps to add more presets to the tour. Click Del preset button to remove it
from the tour. Please note some protocols do not support delete preset function.

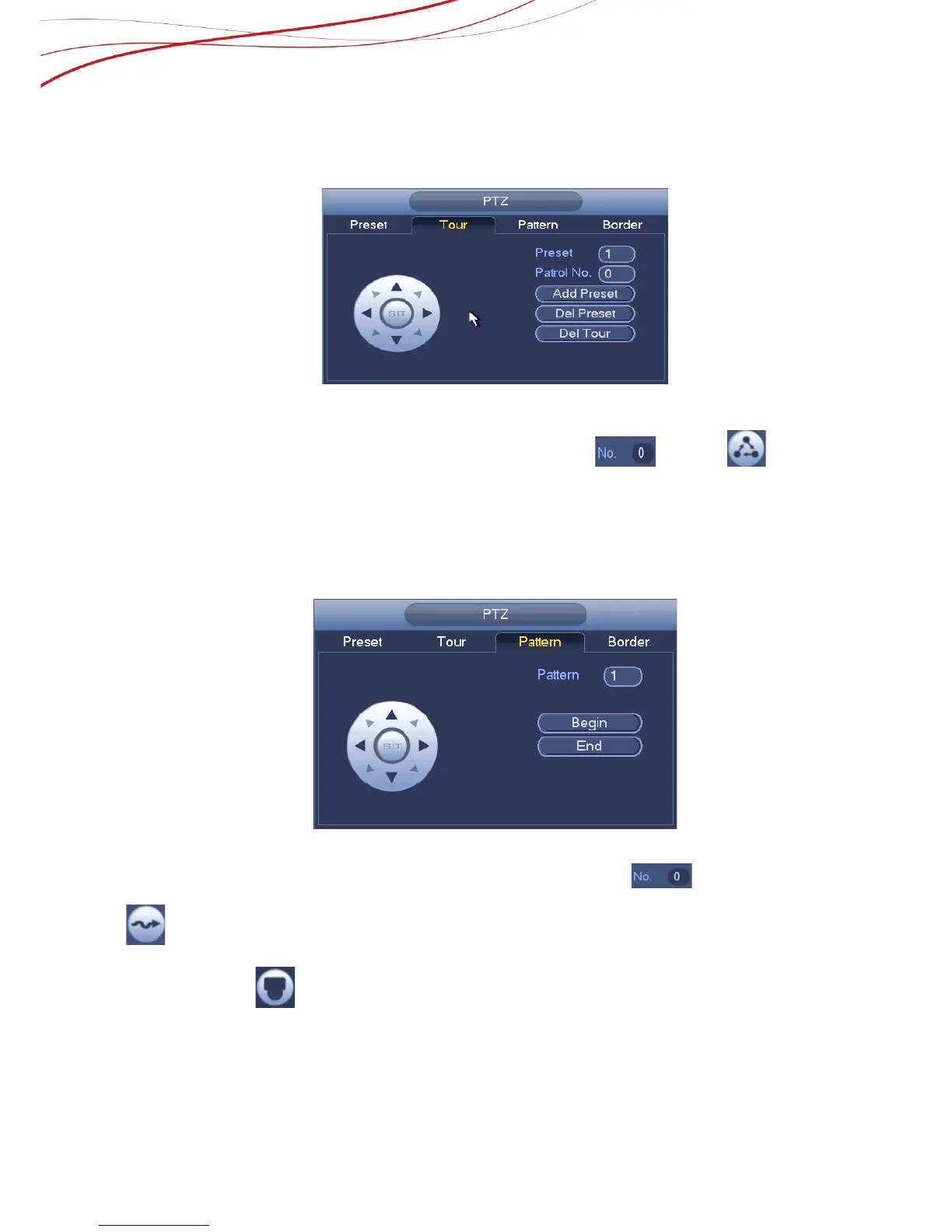

Figure 8-12
In the interface shown as Figure 8-9, enter the Tour number and click to
call. Click it again to stop.
8.6 How to set Pattern and call
In Figure 8-13, click Pattern button and input pattern number.
Click Begin button to start direction operation. Or you can go back to Figure 8-9 to operate
zoom/focus/iris/direction operation.
In Figure 8-13, click End button.
Figure 8-13
In the interface is shown as in Figure 8-9, enter the Tour number and click to
call. Click it again to stop.
8.7 How to set Idle Function and call
In Figure 8-9, click to open the OSD menu, as it is shown in Figure 8-13.
