Dahua NVR4216-16P-4 User Manual

92

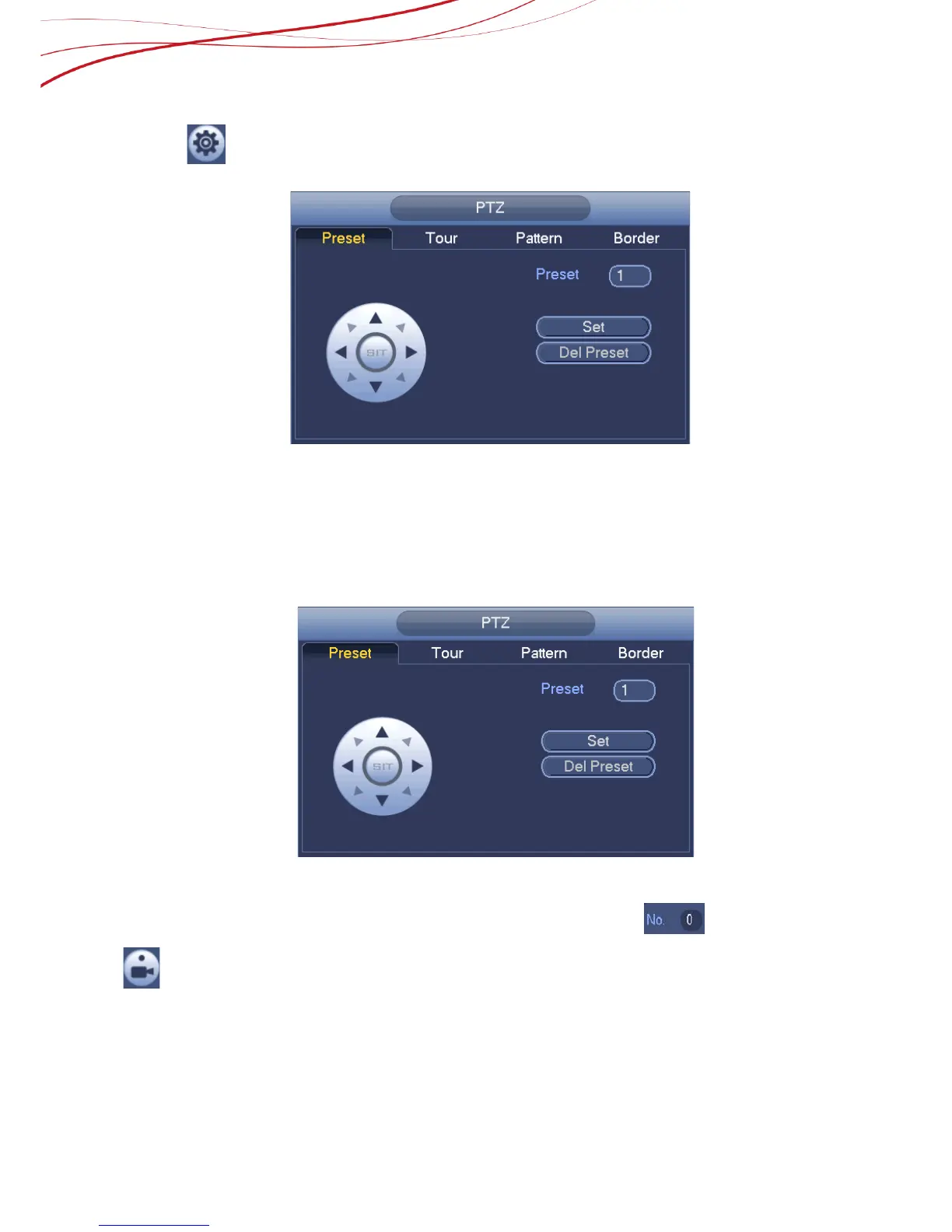

Click in Figure 8-9, you can go to the following interface to set preset, tour, pattern, and
scan. See Figure 8-9.
Figure 8-10
In Figure 8-10, click preset button and use eight direction arrows to adjust camera to the
proper position. The interface is shown as in Figure 8-11.
Click Set button and then input preset number.
Click Set button to save current preset.
Figure 8-11
In the interface is shown as in Figure 8-9, enter the preset number and click to
call.
8.5 How to set Tour and call
In Figure 8-12, click Tour button.
Input tour value and preset No. Click Add preset button to add current preset to the tour.

Dahua NVR4216-16P-4 Specifications

General

Brand	Dahua
Model	NVR4216-16P-4
Category	DVR
Language	English
