2.2 Electrical connection diagram
2-9
WB-A350P / WB-P5WB-A500P (without TIG filler feeding unit)
EMSTOP
PCB1
WB-A350P / WB-A500P
EXT_0V
B3
B2
B1
CAN_H
CAN_L
Com.line
Control cable 5
Torch
Workpiece
出力
+
-
Robot controller
CNWEL
Sequence board
A2
B2
CNCAN2
4
2
Storage board
CNCAN1
4
2
Welding interface
(Digital) board
CNCAN
4
2
Manipulator
CN1 CN2
A3
STOP
CN17/18

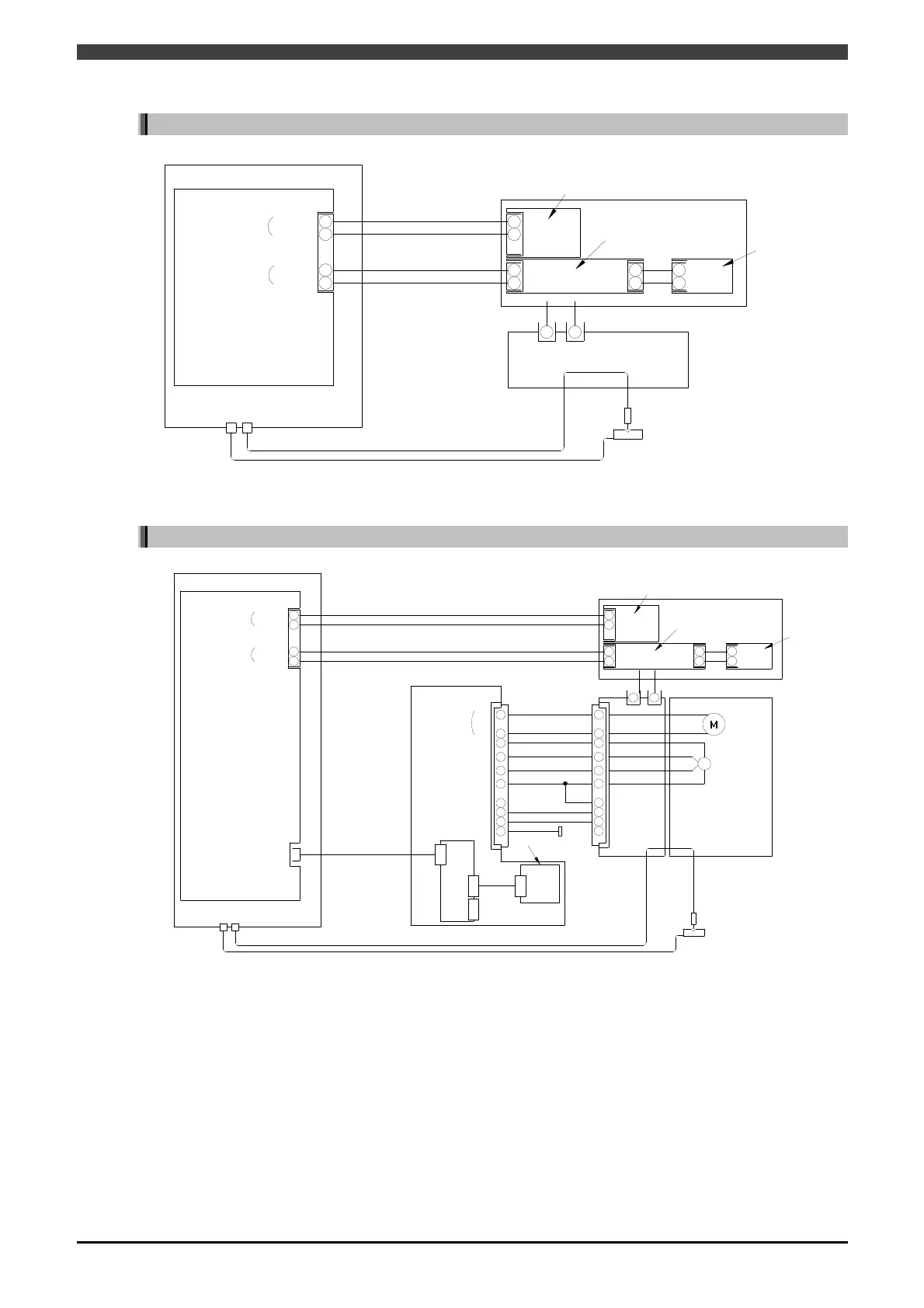

Figure 2.2.3 Electrical connection diagram of WB-A350P / WB-A500P
WB-A350P / WB-A500P (with TIG filler feeding unit)
Com.line
Robot controller
Sequence board
Storage board
Control cable 4
Torch
Workpiece
N.C.
4
2
CNCAN1
4
2
Welding interface
(Digital) board
CNCAN
4
2
Wire feeding
motor
－
＋
3
4
8
7
6
5
1
2
TIG filler controller
HC-71D
CAN communication
calbe
GND
Encoder B phase
Encoder A phase
+5V
CN4
CN2
PCB4
CN1
N.C.
CN2
L23306B00
CN17/18
+
-
CON1
CNWEL
A2
B2
CNCAN2
A3
STOP
CN17/18
EMSTOP
PCB1
WB-A350P / WB-A500P
EXT_0V
B3
B2
B1
CAN_H
CAN_L
Control cable 5
Manipulator
Wire
feeding
motor
Encoder line
Wire feeding unit
出力
CAN I/F board
9
10
CN1 CN2
CN4
FG
5
3
2
4
7
8
6
9
10
1
Figure 2.2.4 Electrical connection diagram of WB-A350P / WB-A500P
