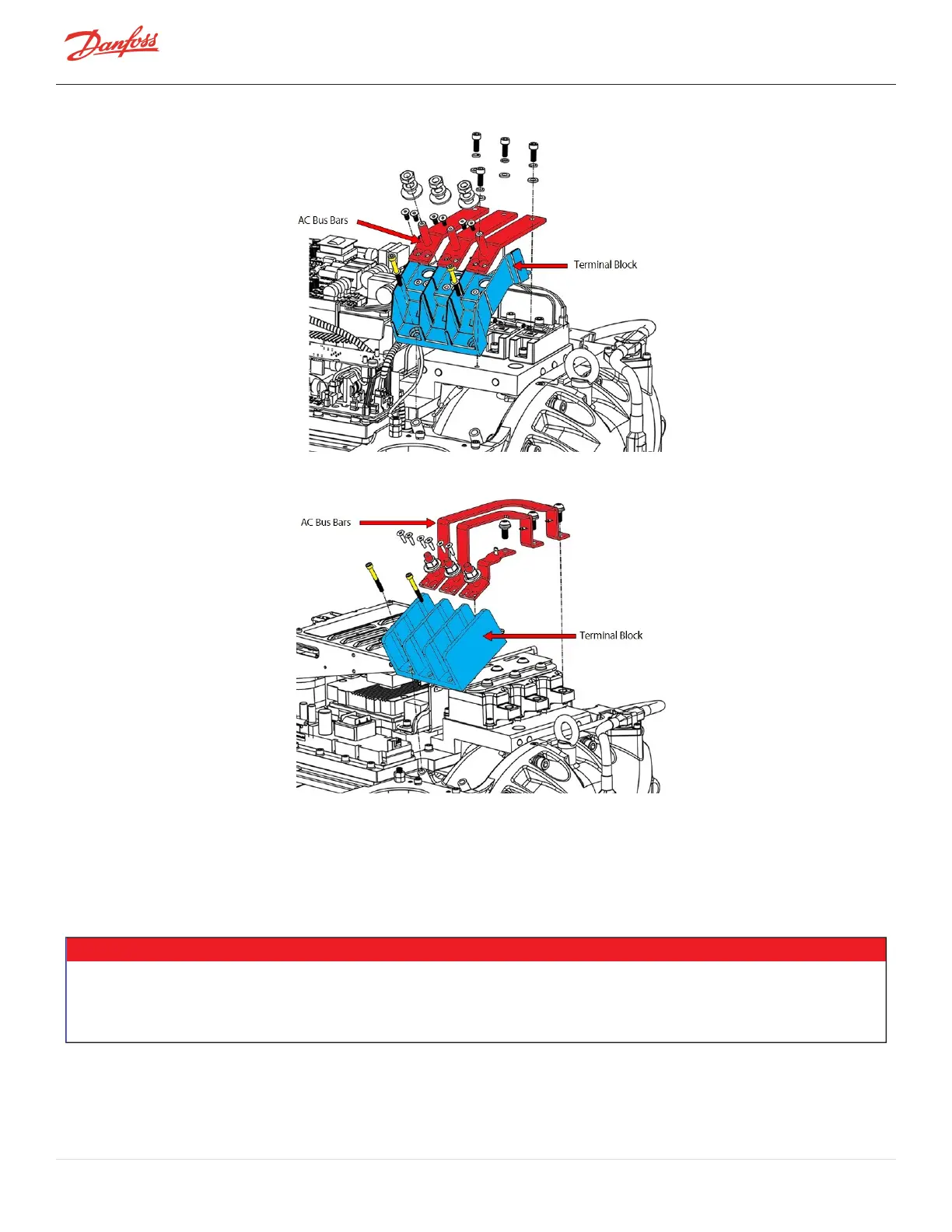

Figure 4-77 Input Terminal Block - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)

Figure 4-78 Input Terminal Block - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)

4.11.1 3-Phase Main Voltage Input Terminal Block Verification



4.11.1.1 3-Phase AC input Verification

Thecompressorrequiresa3-phasepowersourcewithUL-approvedorCE-approvedcomponentsinthecircuitwith

code-compliantprotection.

• • • DANGER!• • •

l

Thisequipmentcontainshazardousvoltagesthatcancauseinjuryordeath.Exerciseextremecautionwhenworkingon

energizedcircuits.

l

Alwayswearsafetyglasseswhenworkingaroundcomponentsenergizedbyhighvoltage.Faultycomponentscanexplode

andcauseseriouseyeinjuries.

4.11.1.2 Connecting the AC Input Cable

1. Isolatecompressorpower.

2. EnsuretheACcablesaresecurelyfastenedtotheinputTerminalBlock.

Page 100 of 294 - M-SV-001-EN Rev. H 1/23/2023
