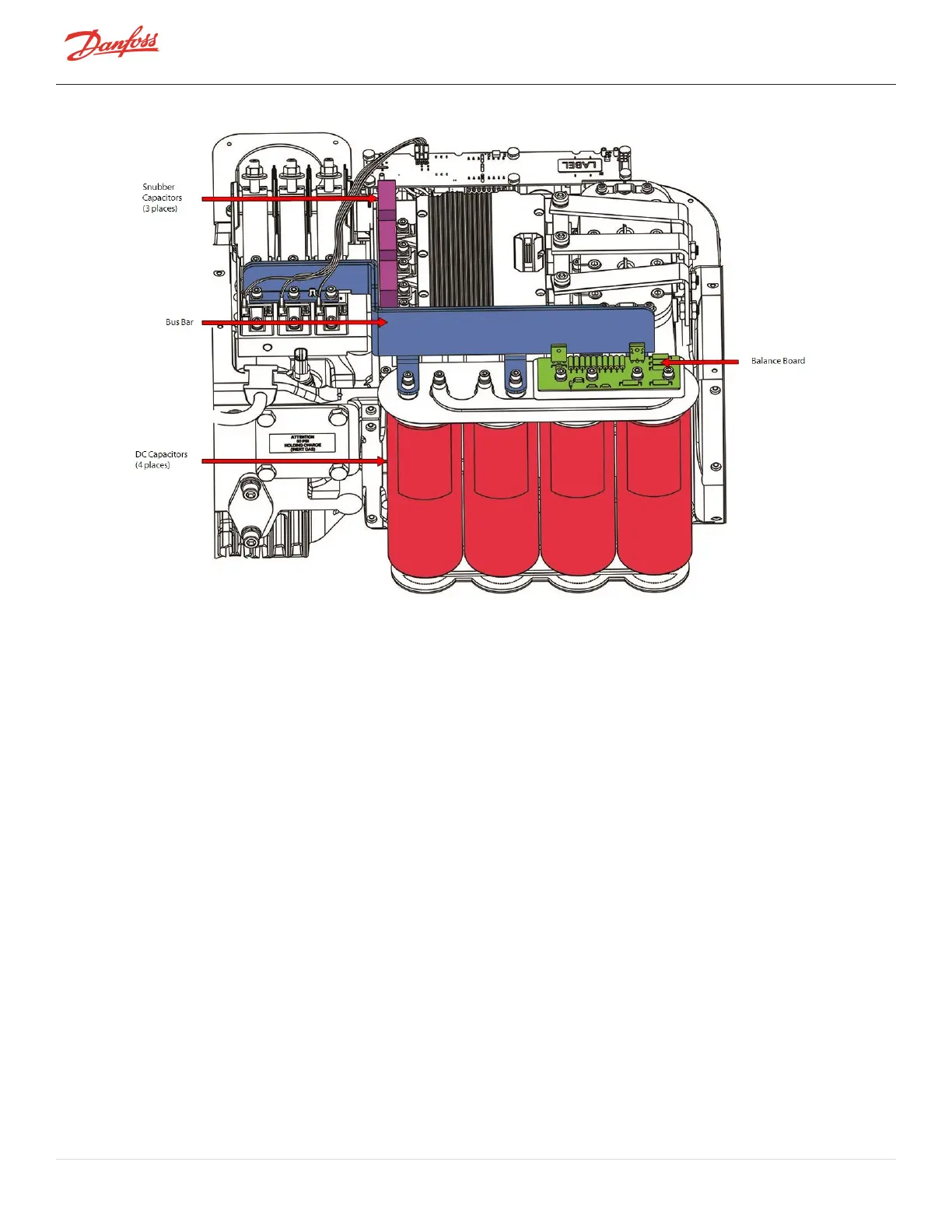

Figure 4-177 DC Bus Components Identification TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)
4.21.1 DC Capacitor DC Bus Bar Connections
RefertoFigure4-178SoftStartCableHarnesstoDCBusonpage167.forthelocationoftheconnectionslisted
below.
1. +DCtoSoftStart
2. -DCtoSoftStartandDC-DC
3. DCbustoInverter

