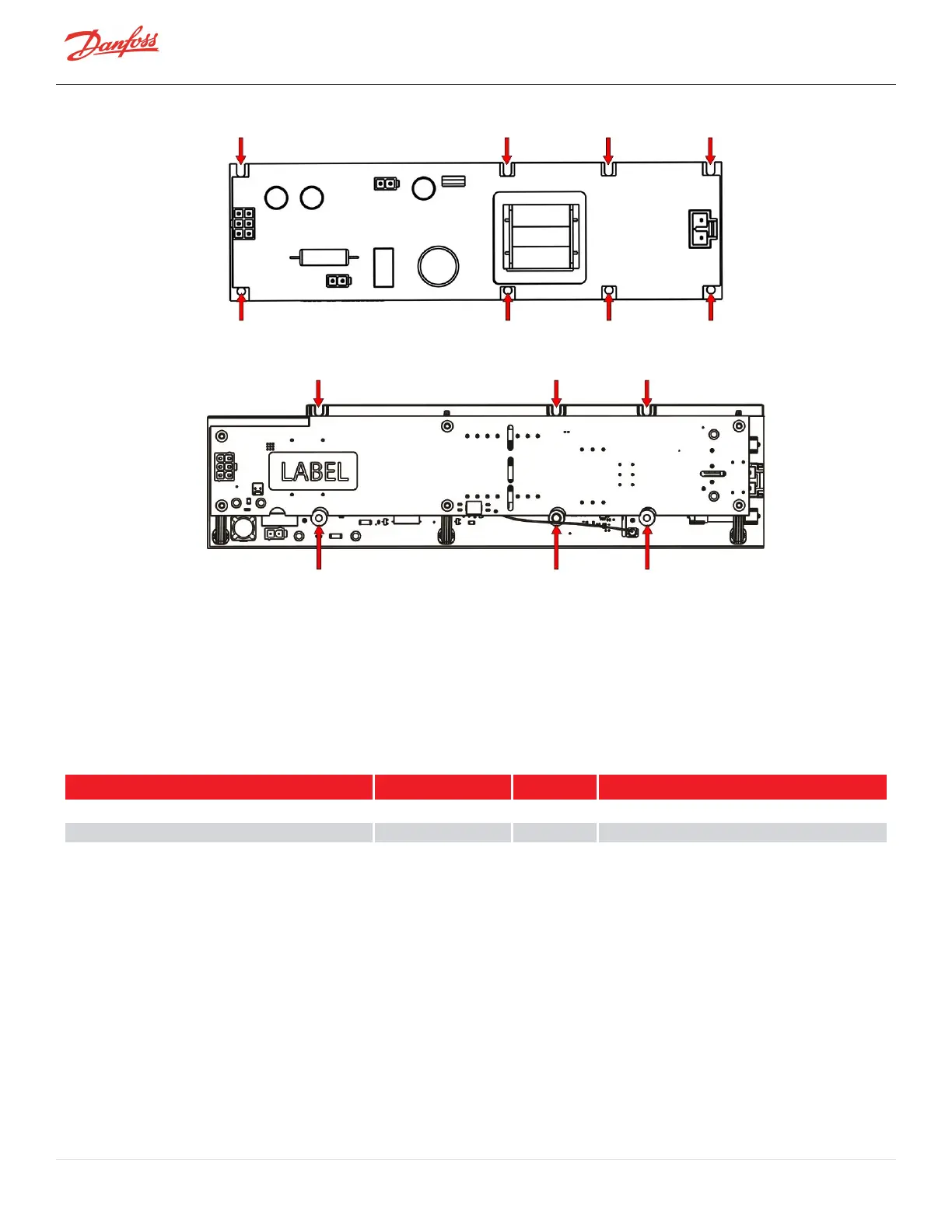

Figure 4-233 Potted DC-DC - Top View
Figure 4-234 Open Frame DC-DC - Top View
6. ConnecttheDC-DCcables.
7. InstalltheSoftStart.RefertoSection4.14.3SoftStartRemovalandInstallationonpage117.
8. Installthetopcovers.RefertoSection4.1CompressorCoversonpage52.
9. Returnthecompressortonormaloperation.
4.24.3.1 DC-DC Torque Specifications

Table 4-38 Table 4-39 DC-DC Torque Specifications
Description Nm Ft.Lb. In.Lb.
SoftStartMountingfastener,M5X15 5 - 44
DC-DCMountingfastener,M3x10 0.5 - 4
CoverFastener 1.5 - 13

Page 208 of 294 - M-SV-001-EN Rev. H 1/23/2023
