Danfoss TTS400 User Manual

4.2 Cooling Adapter
Toprovidecoolingforthemotorandpowerelectronics,aliquidfeedlineisconnectedtothecompressorviathe
CoolingAdapter.Thisadaptercontainsastrainertocollectanydebristhatmaybepresent.
• • • CAUTION • • •
Afilter/driermustbeusedinconjunctionwiththeCoolingInletAdapterstrainer.Thestrainerisusedasabackuptopreventdamageto
thesolenoidorificesshouldanydebrisgetpastthefilter/drier.


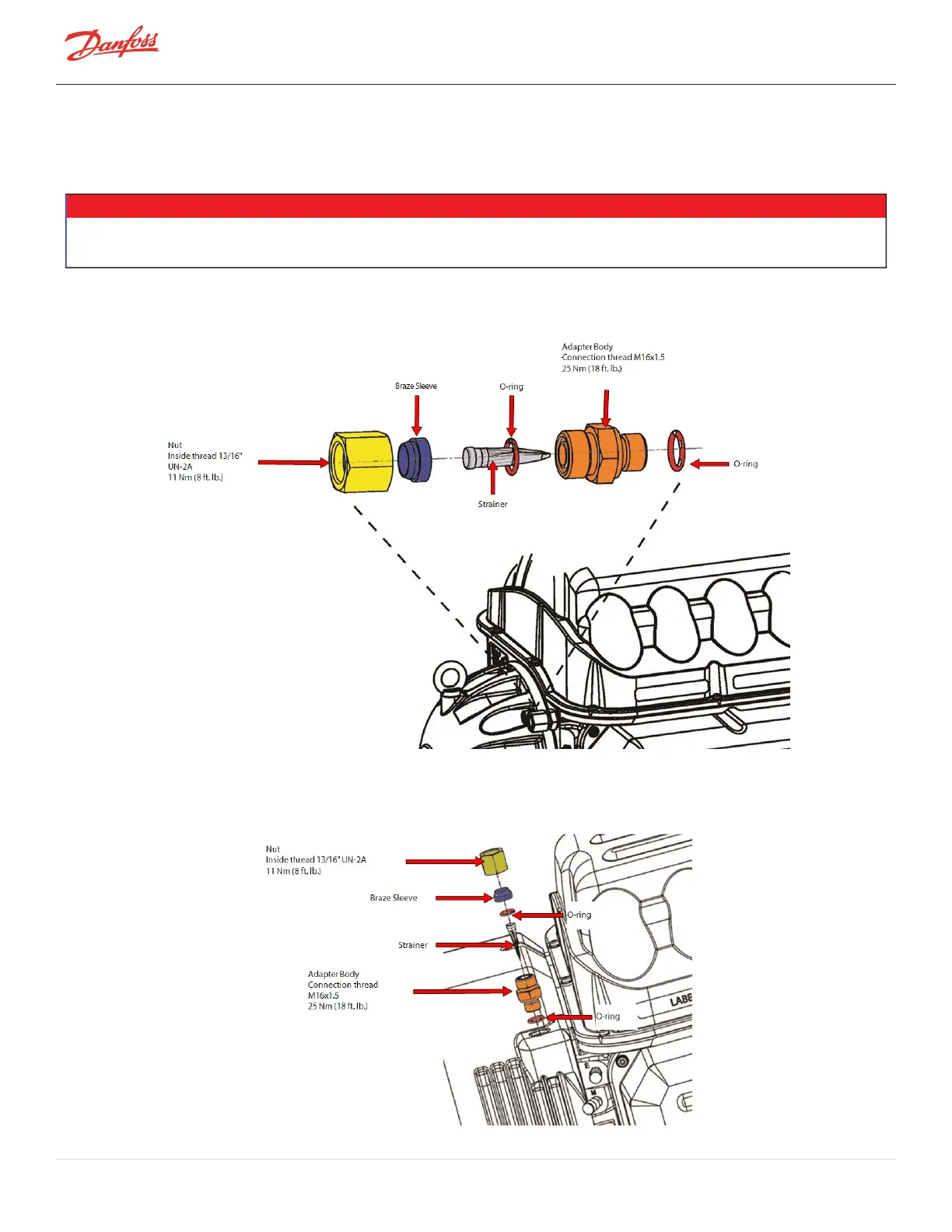

Figure 4-16 Cooling Adapter - Excludes TTH375/TGH285

Figure 4-17 Cooling Adapter - TTH375/TGH285)
Page 58 of 294 - M-SV-001-EN Rev. H 1/23/2023
