1.10.3 DC Bus Test Harness Installation for Open-Top Soft Starts
1. DisconnecttheJ8connectorfromtheSoftStart.RefertoFigure1-17J8SoftStartConnection(Open
Top).

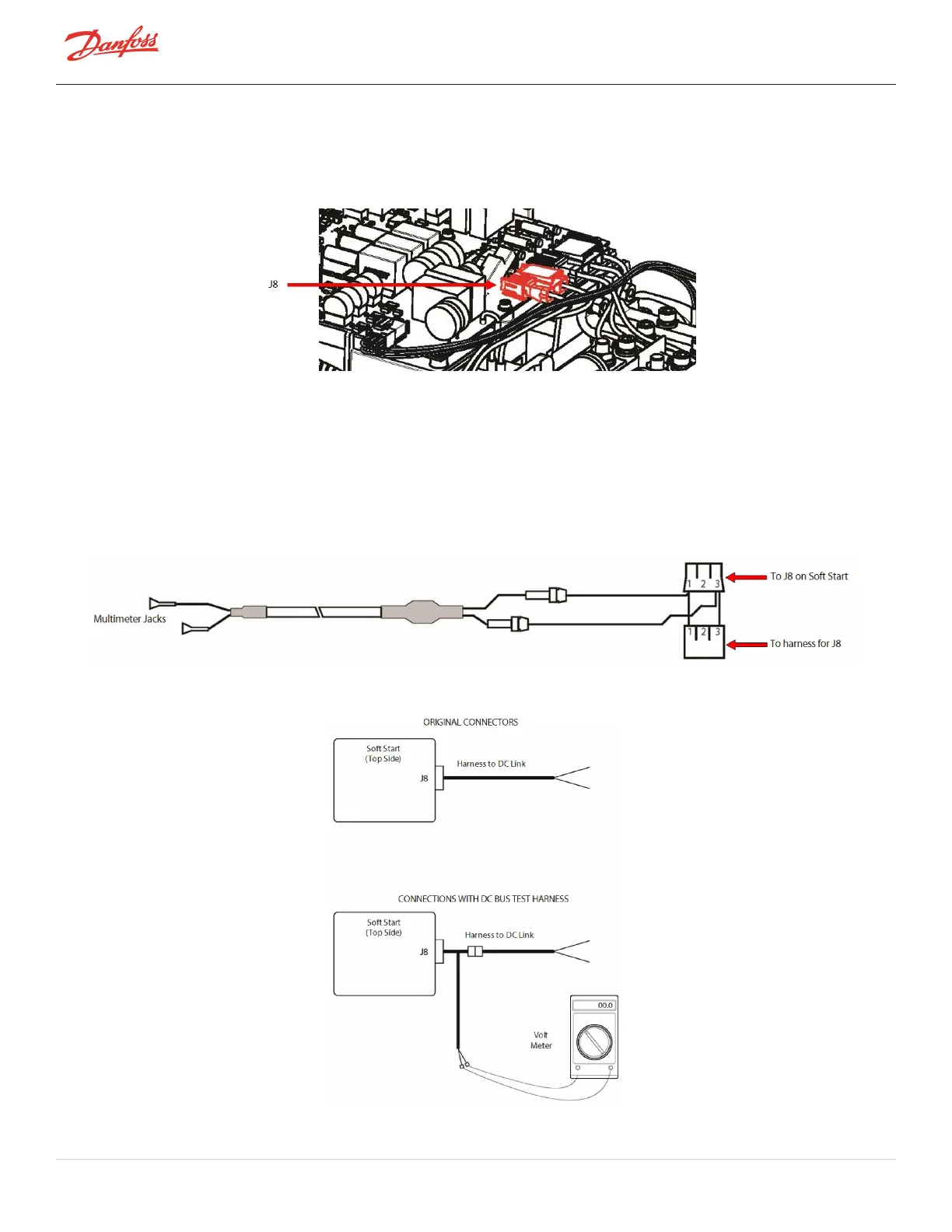

Figure 1-17 J8 Soft Start Connection (Open Top)

2. ConnecttheplugofthecompressorcableharnessintothecorrespondingsocketoftheDCbustest
harness.RefertoFigure1-18ConnectDCBusTestHarness(Open-TopSoftStart)andFigure1-19DC
BusTestHarnessConnectionDiagram(Open-TopSoftStart)forthisandthefollowingstep.
3. ConnecttheplugoftheDCbustestharnessintotheSoftStart.

Figure 1-18 Connect DC Bus Test Harness (Open-Top Soft Start)
Figure 1-19 DC Bus Test Harness Connection Diagram (Open-Top Soft Start)
