Danfoss TTS400 User Manual

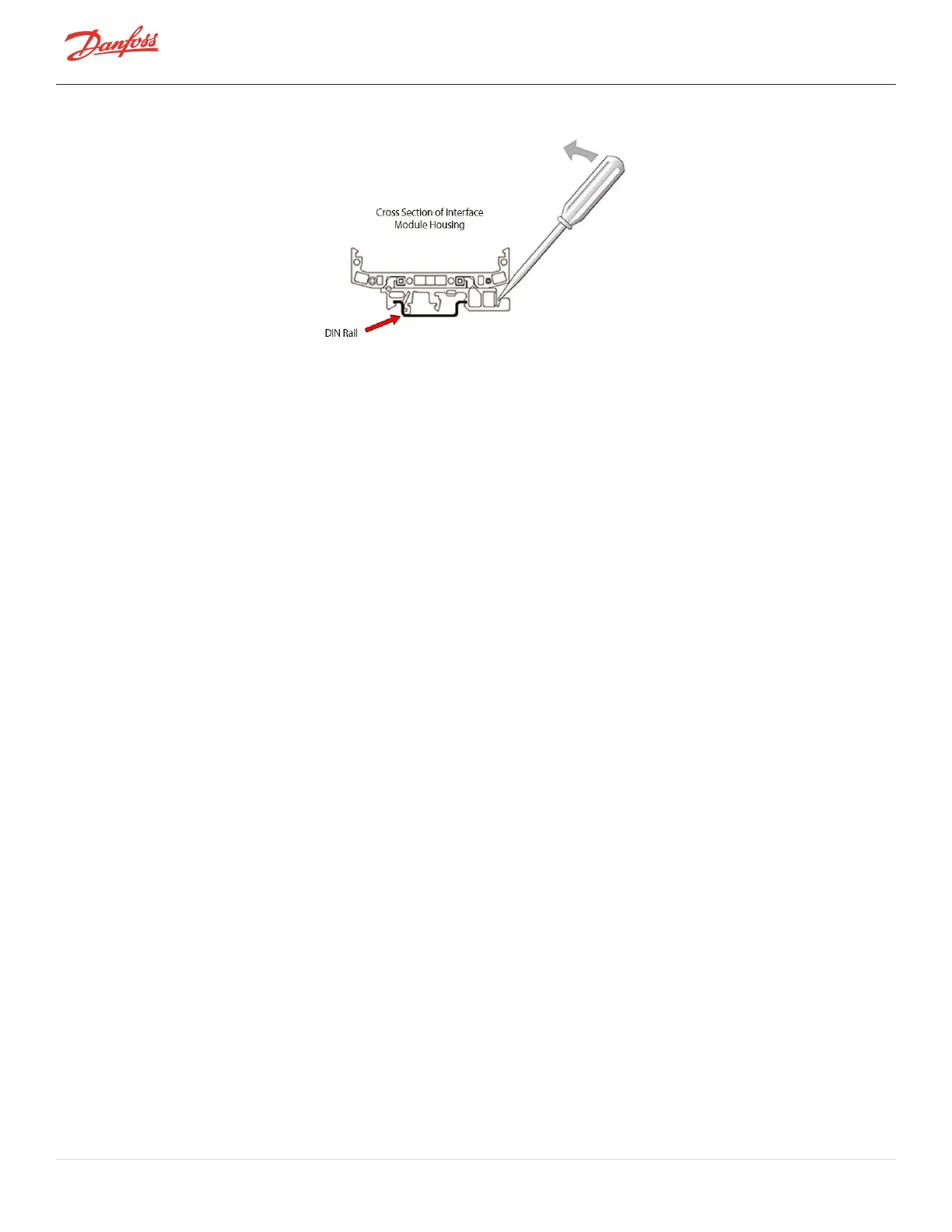

Figure 4-19 Removing the Compressor Interface Module from the DIN Rail
4.3.3.2 Compressor I/O Board Installation
1. Installtheleftfootofthereplacementboardintotherailandpresstherightsideoftheboarddown
untilitengagestherail.
2. ReconnectallexternalconnectionsandwiringontheCIM.
3. Returnthecompressortonormaloperation.

Page 64 of 294 - M-SV-001-EN Rev. H 1/23/2023
