Danfoss TTS400

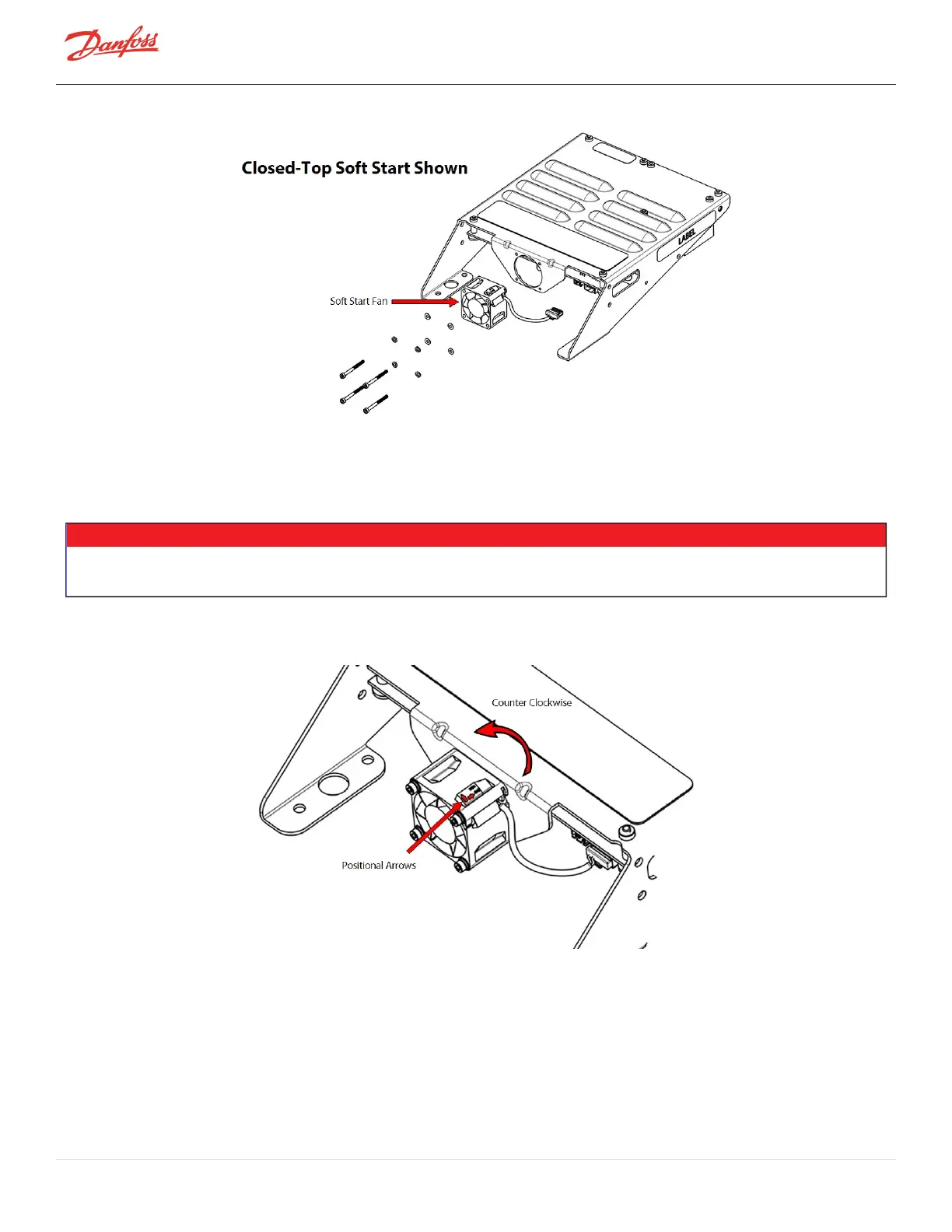

Figure 4-111 Soft Start Without Adapter
4.14.10 Soft Start Fan Installation
1. OrientthefansothearrowsarepointingcounterclockwiseandtowardtheSoftStart.Figure4-112Soft
StartFanOrientationshowsaviewoftheClosed-TopSoftStartwherethefanarrowsshouldbe
pointing.
NOTE
OncethefanisinstalledonOpen-TopSoftStarts,thefanarrowswillbelocatedonthebottomrightcornerofthefanandwillnolongerbe
visible.Whentheadapterboardsareused,thearrowswillonlybevisiblefromthebottomsideoftheSoftStart.

Figure 4-112 Soft Start Fan Orientation
2. Installthefour(4)fastenerstosecurethefanandadapterboard(ifequipped)totheSoftStartand
torqueto6in.lb.RefertoFigure4-113SoftStartFanInstallationonpage125.

Page 124 of 294 - M-SV-001-EN Rev. H 1/23/2023
