Danfoss TTS400 User Manual

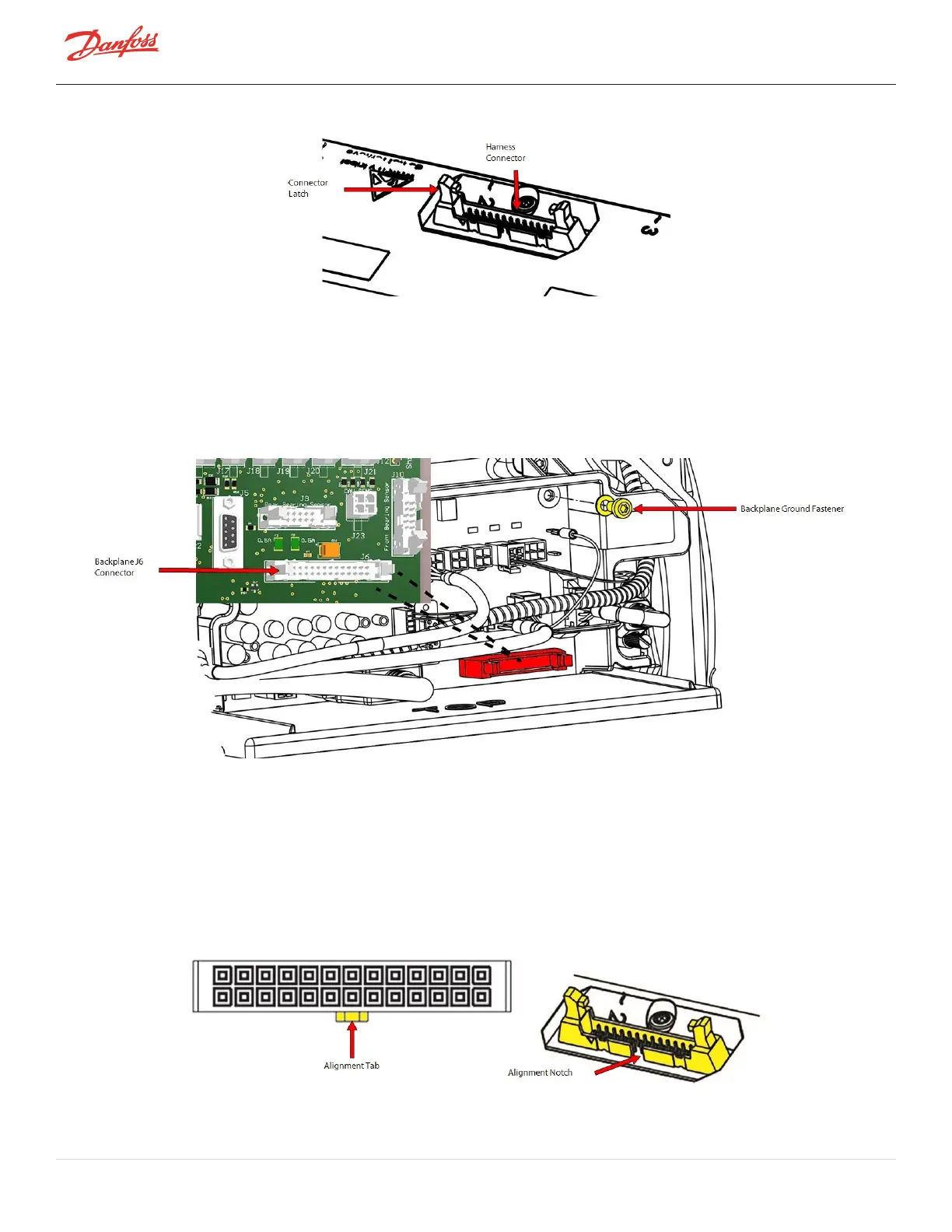

Figure 4-192 Harness Removal from Inverter
5. Verifytherearenobentorbrokenpinconnectors.
6. UsethesameprocesstodisconnecttheInverterCableHarnessfromtheBackplaneJ6connection.
7. Verifytherearenobentorbrokenpinconnectors.
8. RemovetheInverterCableHarnessgroundconnectionfromtheBackplane.RefertoFigure4-193
HarnessRemovalfromBackplane.
Figure 4-193 Harness Removal from Backplane
9. CutanycabletiessecuringtheInverterCableHarnessandpullthroughthecompressorhousing
passage.
4.22.4.2 Inverter Cable Harness Installation
1. InserttheInverterCableHarnessthroughthecompressorpassagekeepinginmindtheground
connectionendneedstogototheBackplane.
2. AligntheInverterCableHarnesstotheInverterconnectorusingthealignmenttabontheconnector.
RefertoFigure4-194InverterConnectorAlignment.
Figure 4-194 Inverter Connector Alignment
Page 178 of 294 - M-SV-001-EN Rev. H 1/23/2023
