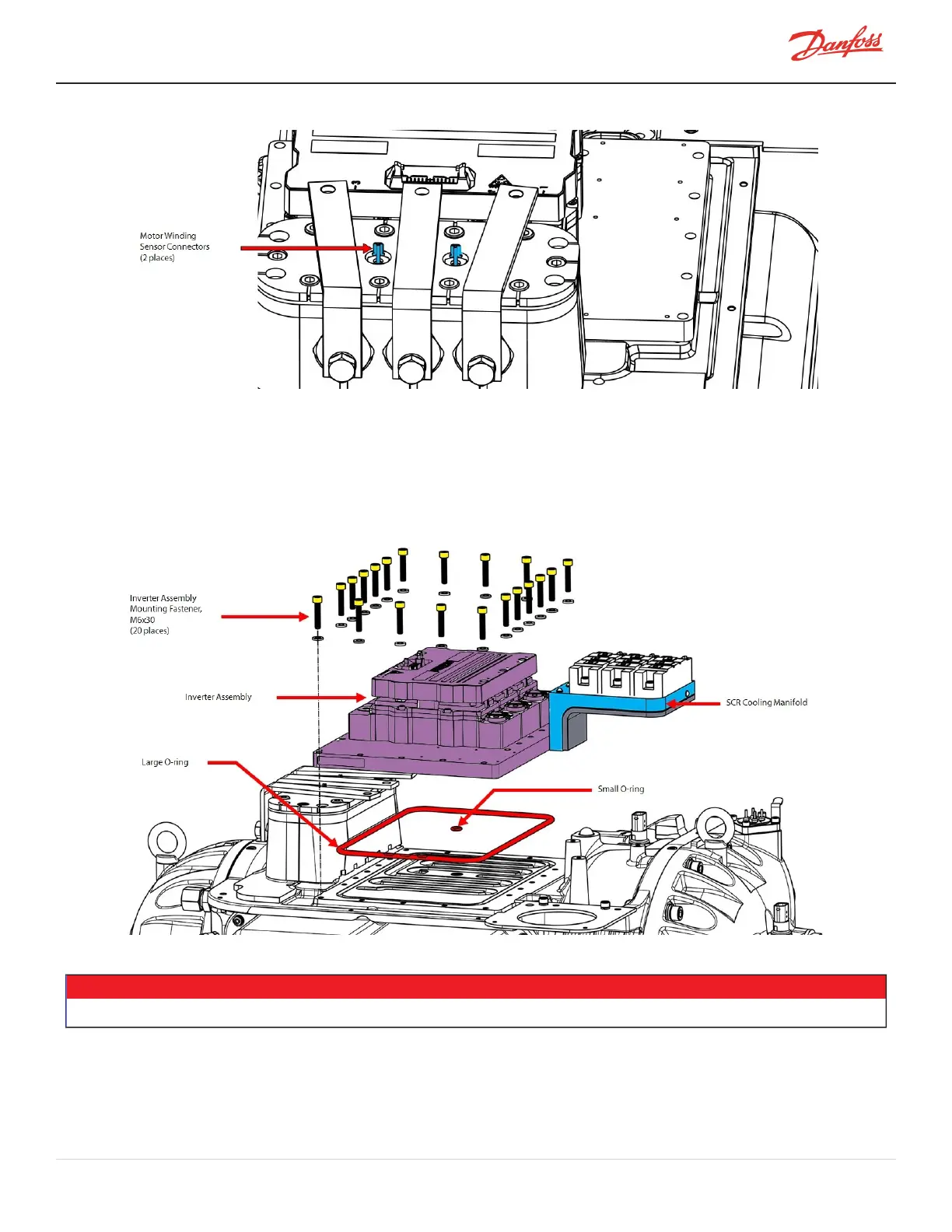

Figure 4-197 Motor Winding Sensor Connector Removal

9. Removetheupperhalfofthecompressorcableharness.RefertoSection4.5.2CompressorController
CableHarnessRemovalandInstallationonpage68.
10. Removethe20M6x30fastenersthatsecuretheInvertertothecompressormainhousingandcarefully
removetheInverterandremoveanddiscardthetwo(2)O-ringsunderneath.
Figure 4-198 Inverter Assembly Removal - TTS300/TGS230

NOTE
TheSCRsdonotneedtoberemovedfromtheSCRCoolingManifoldwhenremovingtheInverter.

11. RemovetheSCRCoolingManifold.RefertoSection4.19.2SCRCoolingManifoldSpecificRemovalSteps
-TTS300/TGS230onpage157.
M-SV-001-EN Rev. H-1/23/2023 Page 181 of 294
