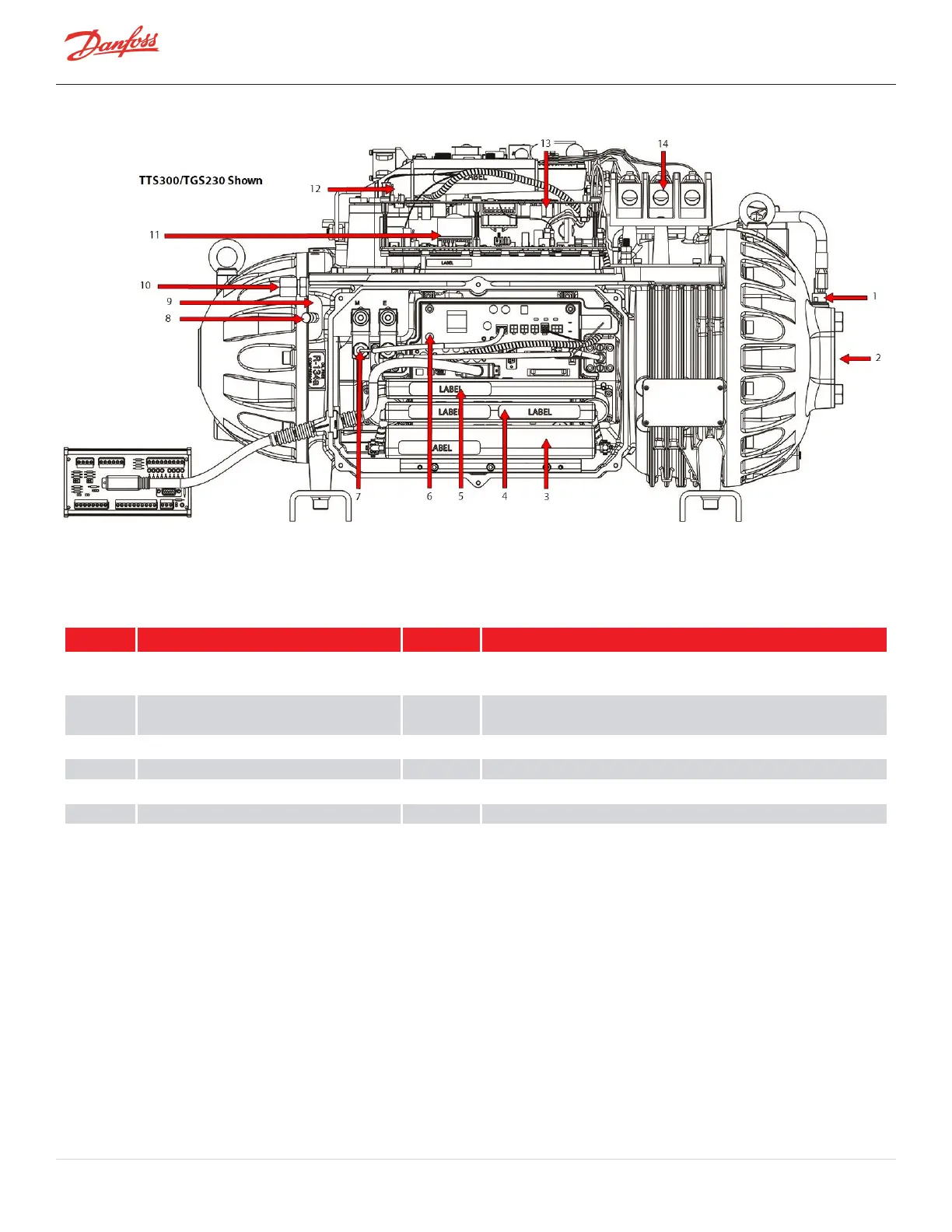

Figure 4-2 Compressor Component Identification (Excludes TTH/TGH Compressors)


Table 4-2 Compressor Components(Excludes TTH/TGH Compressors)
No. Component No. Component
1 Suction/Pressure/TemperatureSensor 8 CompressorCoolingAccessPortAccess
Port#1(NOTE:TTS300/TGS230haveonlyoneaccessport)
2 IGVSuctionPort 9 CompressorCoolingAccessPort#2
(notavailableonTTS300/TGS230compressors)NOT SHOWN
3 PWMAmplifier 10 CoolingInletAdapter
4 BMCC 11 DC-DCConverter
5 SerialDriver 12 SoftStart
6 Backplane 13 Inverter
7 Motor-CoolingSolenoids 14 Fast-ActingFuses(TTS300/TGS230only)







Page 48 of 294 - M-SV-001-EN Rev. H 1/23/2023
