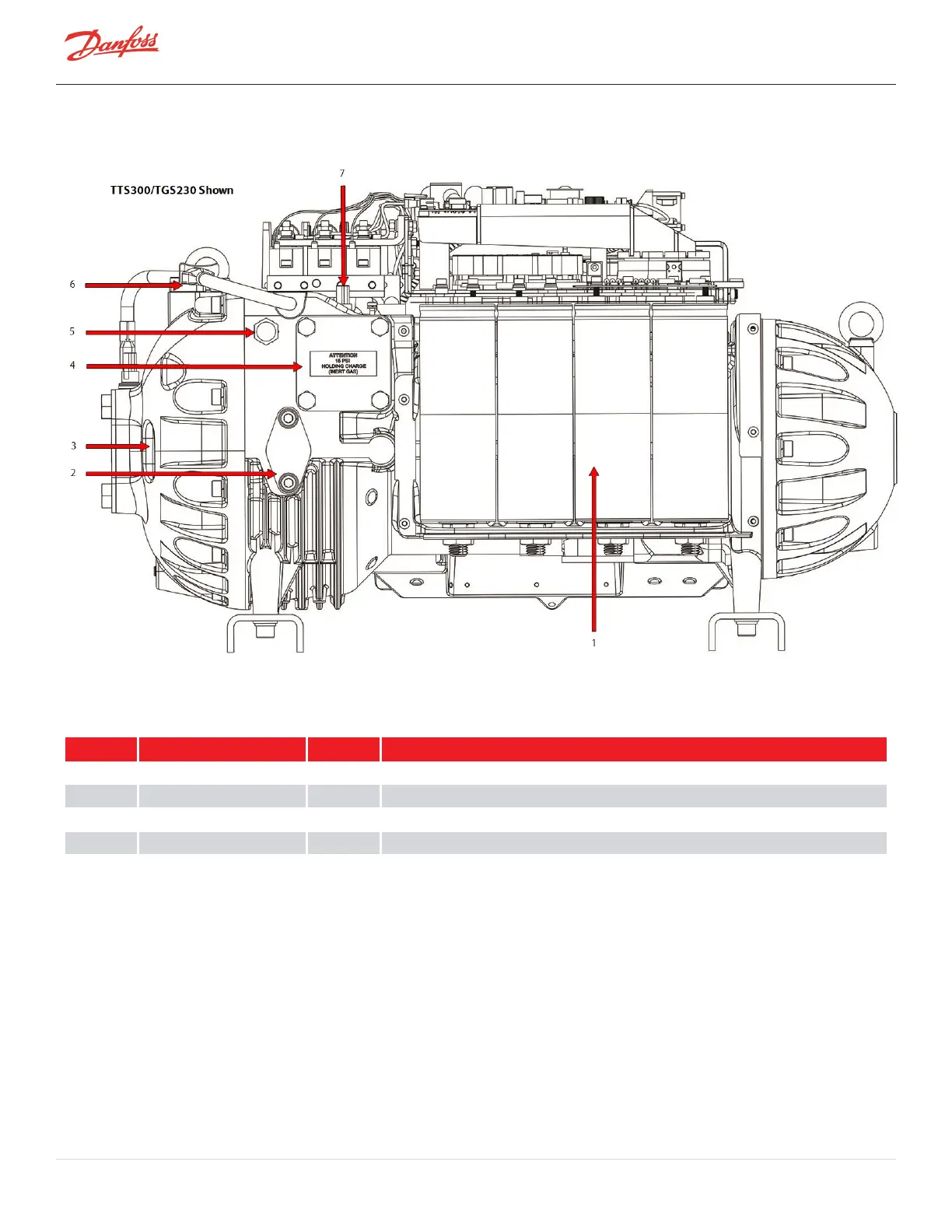

Figure 4-4 Compressor Component Identification - Capacitor Side (Excludes TTH/TGH)


Table 4-4 Compressor Components Capacitor Side (Excludes TTH/TGH)
No. Component No. Component
1 Capacitors 5 Optional(Medium-Tempapplication)CoolingPathPressureRegulatingPort
2
EconomizerPort
6 IGVMotorFeedthrough
3 IGVPositionIndicator 7 DischargeTemperature/PressureSensor
4 DischargePort
 









