13-20 SL Controller Timer
Array [8]
Range: Function:
Size
related*
[ 0 -
0 ]
Enter the value to dene the duration of
the false output from the programmed
timer. A timer is only false if it is started
by an action (for example [29] Start timer
1) and until the given timer value has
elapsed.
3.12.5 13-4* Logic Rules
Combine up to 3 boolean inputs (true/false inputs) from
timers, comparators, digital inputs, status bits, and events
using the logical operators AND, OR, and NOT. Select
boolean inputs for the calculation in parameter 13-40 Logic
Rule Boolean 1, parameter 13-42 Logic Rule Boolean 2, and
parameter 13-44 Logic Rule Boolean 3. Dene the operators
used to logically combine the selected inputs in
parameter 13-41 Logic Rule Operator 1 and
parameter 13-43 Logic Rule Operator 2.
. . .
. . .
. . .
. . .
Par. 13-43
Logic Rule Operator 2
Par. 13-41
Logic Rule Operator 1
Par. 13-40
Logic Rule Boolean 1
Par. 13-42
Logic Rule Boolean 2
Par. 13-44
Logic Rule Boolean 3
130BB673.10

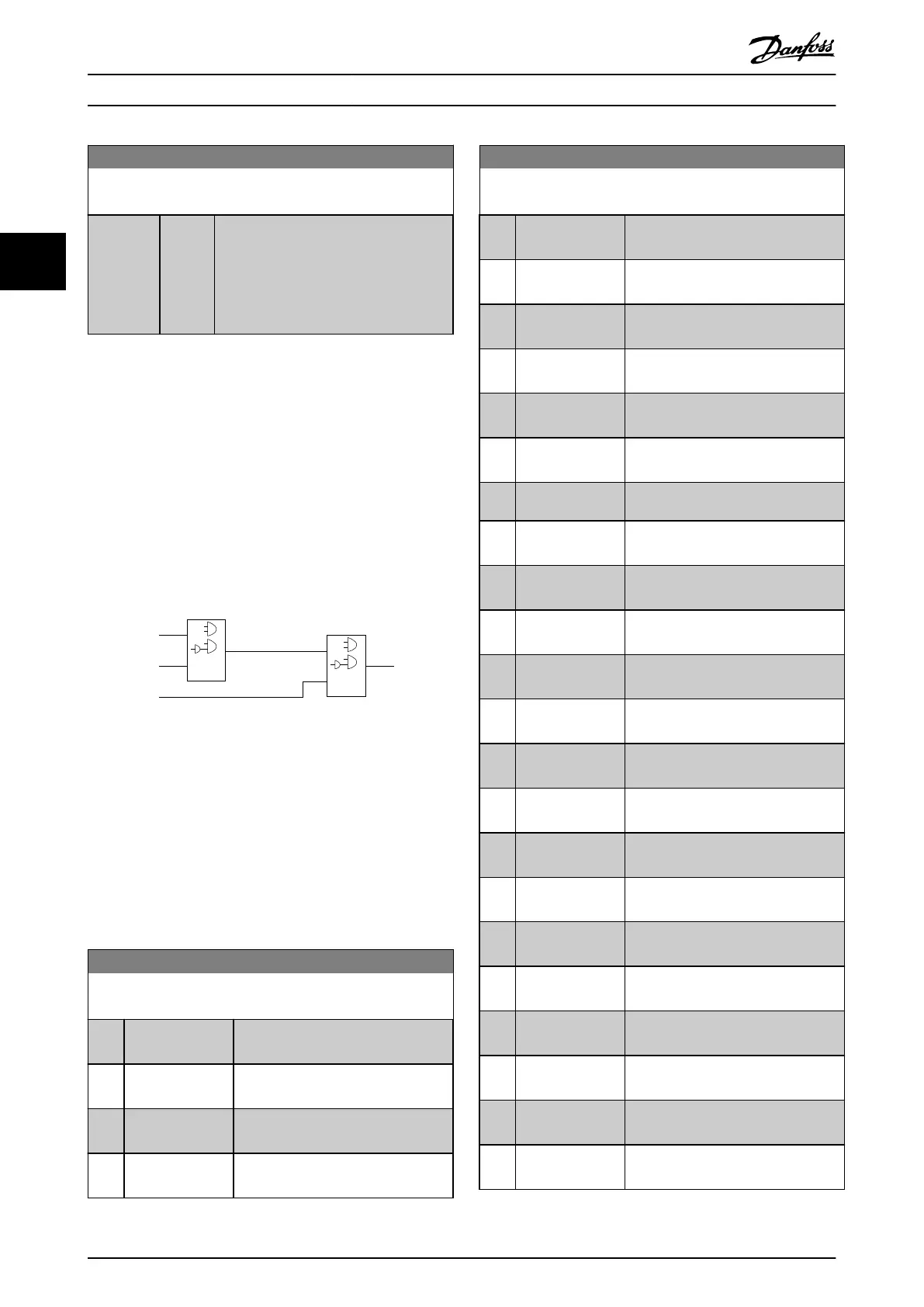

Illustration 3.44 Logic Rules
Priority of calculation
The results of parameter 13-40 Logic Rule Boolean 1,
parameter 13-41 Logic Rule Operator 1, and
parameter 13-42 Logic Rule Boolean 2 are calculated rst.
The outcome (true/false) of this calculation is combined
with the settings of parameter 13-43 Logic Rule Operator 2
and parameter 13-44 Logic Rule Boolean 3, yielding the nal
result (true/false) of the logic rule.
13-40 Logic Rule Boolean 1
Array [6]
Option: Function:
[0] False Enters the xed value of false in the
logic rule.
[1] True Enters the xed value of true in the
logic rule.
[2] Running See parameter group 5-3* Digital
Outputs for further description.
[3] In range See parameter group 5-3* Digital
Outputs for further description.
13-40 Logic Rule Boolean 1
Array [6]
Option: Function:
[4] On reference See parameter group 5-3* Digital
Outputs for further description.
[5] Torque limit See parameter group 5-3* Digital
Outputs for further description.
[6] Current Limit See parameter group 5-3* Digital
Outputs for further description.
[7] Out of current
range
See parameter group 5-3* Digital
Outputs for further description.
[8] Below I low See parameter group 5-3* Digital
Outputs for further description.
[9] Above I high See parameter group 5-3* Digital
Outputs for further description.
[10] Out of speed
range
[11] Below speed low See parameter group 5-3* Digital
Outputs for further description.
[12] Above speed high See parameter group 5-3* Digital
Outputs for further description.
[13] Out of feedb.
range
See parameter group 5-3* Digital
Outputs for further description.
[14] Below feedb. low See parameter group 5-3* Digital
Outputs for further description.
[15] Above feedb. high See parameter group 5-3* Digital
Outputs for further description.
[16] Thermal warning See parameter group 5-3* Digital
Outputs for further description.
[17] Mains out of
range
See parameter group 5-3* Digital
Outputs for further description.
[18] Reversing See parameter group 5-3* Digital
Outputs for further description.
[19] Warning See parameter group 5-3* Digital
Outputs for further description.
[20] Alarm (trip) See parameter group 5-3* Digital
Outputs for further description.
[21] Alarm (trip lock) See parameter group 5-3* Digital
Outputs for further description.
[22] Comparator 0 Use the result of comparator 0 in the
logic rule.
[23] Comparator 1 Use the result of comparator 1 in the
logic rule.
[24] Comparator 2 Use the result of comparator 2 in the
logic rule.
[25] Comparator 3 Use the result of comparator 3 in the
logic rule.
Parameter Description
