Danfoss VLT AQUA Drive FC 202 Programming Guide

NOTICE
•
For the best adaptation of the frequency
converter, run AMA on a cold motor.
•
AMA cannot be performed while the motor is
running.
NOTICE
Avoid generating external torque during AMA.
NOTICE
If 1 of the settings in parameter group 1-2* Motor Data is
changed, parameter 1-30 Stator Resistance (Rs) to
parameter 1-39 Motor Poles return to the default setting.
This parameter cannot be adjusted while the motor is
running.
NOTICE
Full AMA should be run without lter only, while reduced
AMA should be run with lter.
See the chapter Automatic Motor Adaptation in the VLT
®
AQUA Drive FC 202 Design Guide.
3.3.8 1-3* Adv. Motor Data
Parameters for advanced motor data. The motor data in
parameter 1-30 Stator Resistance (Rs) to
parameter 1-39 Motor Poles must match the relevant motor
to run the motor optimally. The default settings are gures
based on common motor parameter values from normal
standard motors. If the motor parameters are not set
correctly, a malfunction of the frequency converter system
may occur. If the advanced motor data is not known,
running an AMA is recommended. See the chapter
Automatic Motor Adaptation in the VLT
®
AQUA Drive FC 202
Design Guide. The AMA sequence adjusts all motor
parameters except the inertia moment of the rotor and the
iron loss resistance (parameter 1-36 Iron Loss Resistance
(Rfe)).
130BA375.11
R
S
P 1-30
R
1s
X
h
P1-35
R
1
X
2
X
1
U
1
I
1

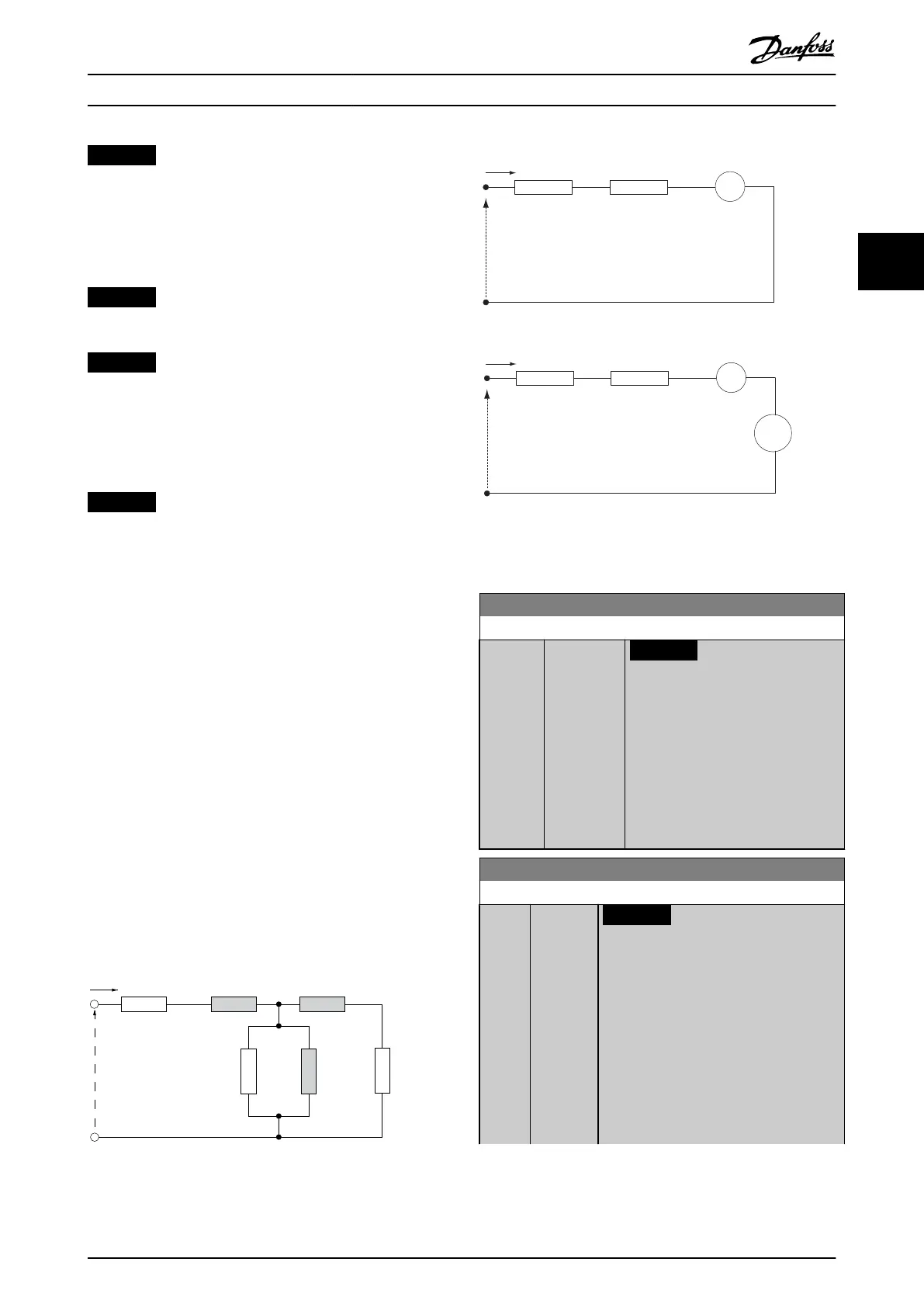

Illustration 3.4 Motor Equivalent Diagram for an Asynchronous
Motor
I
R
s
Par. 1-30
L
d
Par. 1-37
ω
s
L
q
I
q
U
d
I
R
s
Par. 1-30
L
q
=L
d
Par. 1-37
ω
s
L
d
I
d
+
-
+ -
+ -
Par. 1-40
ω
s
λ
PM
U
q
q
q
d-axis equivalent circuit
q-axis equivalent circuit
130BC056.11
Illustration 3.5 Motor Equivalent Circuit Diagram for a PM
Non-salient Motor
1-30 Stator Resistance (Rs)
Range: Function:
Size
related*
[ 0.0140 -
140.0000
Ohm]
NOTICE
This parameter cannot be
adjusted while the motor is
running.
For PM motors, see the description in
parameter 1-37 d-axis Inductance (Ld).
Set the stator resistance value. Enter
the value from a motor datasheet or
perform an AMA on a cold motor.
1-31 Rotor Resistance (Rr)
Range: Function:
1.0000
Ohm*
[0.0100 -
100.0000
Ohm]
NOTICE
Parameter 1-31 Rotor Resistance (Rr)
has no eect when
parameter 1-10 Motor Construction is
set to [1] PM, non-salient SPM, [5]
Sync. Reluctance.
Set the rotor resistance value R
r
to improve
shaft performance using 1 of these
methods:
•
Run an AMA on a cold motor. The
frequency converter measures the
Parameter Description Programming Guide
MG20OB02 Danfoss A/S © 05/2018 All rights reserved. 49
