1-36 Iron Loss Resistance (Rfe)
Range: Function:
Size
related*
[ 0 -
10000.000
Ohm]
NOTICE
This parameter cannot be
adjusted while the motor is
running.
Enter the equivalent iron loss resistance
(R
Fe
) value to compensate for iron
losses in the motor.
The R
Fe
value cannot be found by
performing an AMA.
The R
Fe
value is especially important in
torque control applications. If R
Fe
is
unknown, leave parameter 1-36 Iron
Loss Resistance (Rfe) on default setting.
1-37 d-axis Inductance (Ld)
Range: Function:
Size
related*
[0.000 -
1000.000
mH]
NOTICE
This parameter is only active
when parameter 1-10 Motor
Construction is set to [1] PM,
non-salient SPM.
Enter the value of the d-axis
inductance. Obtain the value from the
PM motor datasheet.
For asynchronous motor, stator resistance, and d-axis
inductance values are normally described in technical
specications as between line and common (startpoint).
For PM motors, they are typically described in technical
specications as between line-line. PM motors are typically
built for star connection.
Parameter 1-30 Stator
Resistance (Rs)
(line to common).
This parameter gives stator winding
resistance (R
s
) similar to asynchronous
motor stator resistance. The stator
resistance is dened for line-to-
common measurement. For line-line
data, where stator resistance is
measured between any 2 lines, divide
by 2.
Parameter 1-37 d-axis
Inductance (Ld)
(line to common).
This parameter gives direct axis
inductance of the PM motor. The d-
axis inductance is dened for phase-
to-common measurement. For line-
line data, where stator resistance is
measured between any 2 lines, divide
by 2.
Parameter 1-40 Back EMF
at 1000 RPM
RMS (line to line value).
This parameter gives back EMF across
stator terminal of PM motor at 1000
RPM mechanical speed specically. It
is dened between line-to-line and
expressed in RMS value.
Table 3.6 Parameters Related to PM Motors
NOTICE
Motor manufacturers provide values for stator resistance
(parameter 1-30 Stator Resistance (Rs)) and d-axis
inductance (parameter 1-37 d-axis Inductance (Ld)) in
technical specications as between line and common
(startpoint) or line between line. There is no general
standard. The dierent set-ups of stator winding
resistance and induction are shown in Illustration 3.6.
Danfoss frequency converters always require the line-to-
common value. The back EMF of a PM motor is dened
as induced EMF developed across any of 2 phases of
stator winding of a free-running motor. Danfoss
frequency converters always require the line-to-line RMS
value measured at 1000 RPM, mechanical speed of
rotation. This is shown in Illustration 3.7.

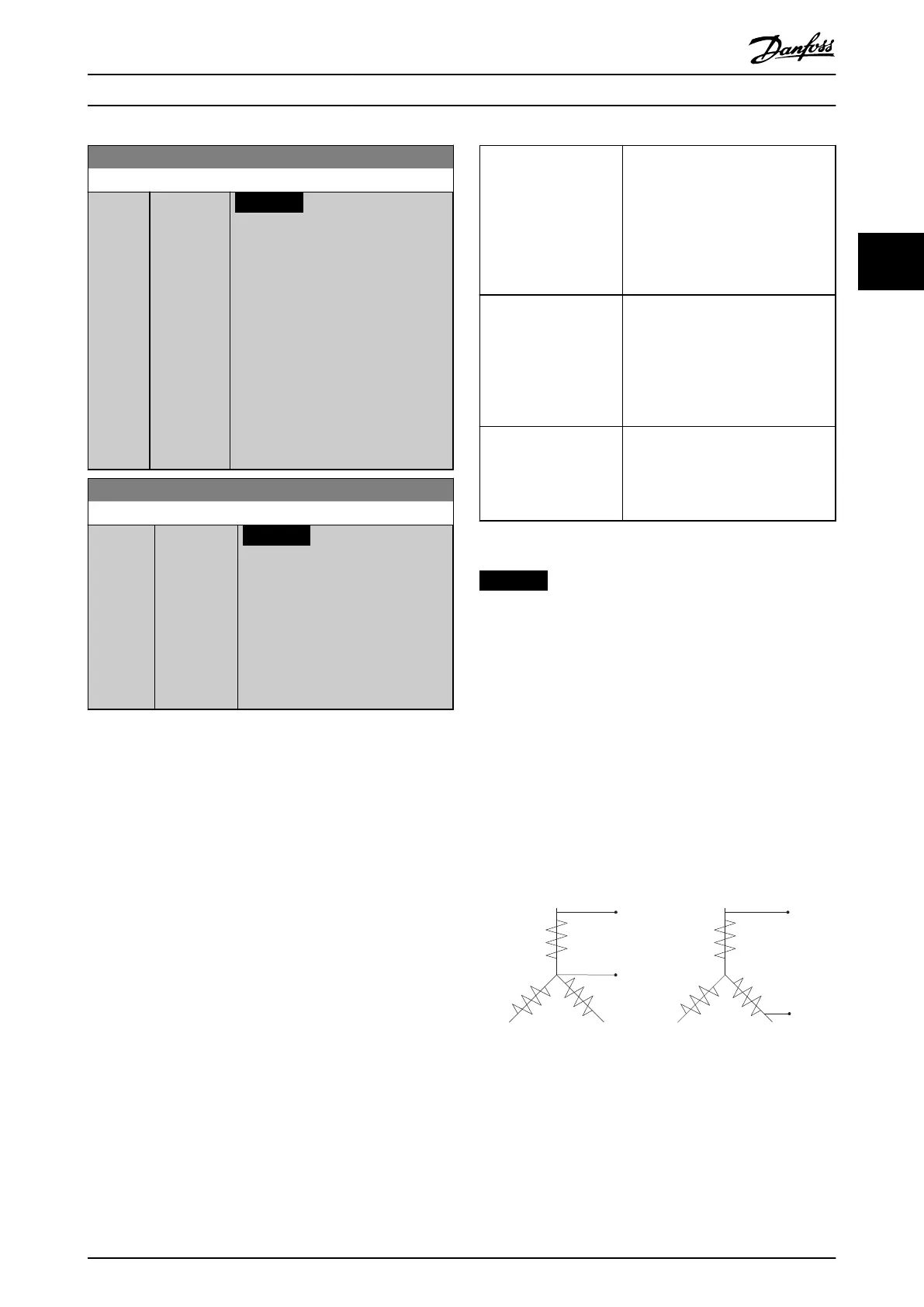

Line to common (starpoint)
Line-to-line values
Rs and Ld
Rs and Ld
e30bc008.12
Illustration 3.6 Stator Winding Set-ups
Parameter Description Programming Guide
MG20OB02 Danfoss A/S © 05/2018 All rights reserved. 51
3 3
