Datalogic Magellan 800i User Manual

Symbologies
96 Magellan
TM
800i
Code 128 — continued
Transmit Function Characters
Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Function codes are transmitted as follows:
• FNC1 = 80 hex
• FNC2 = 81 hex
• FNC3 = 82 hex
• FNC4 = 83 hex
NOTE
If the label starts with a function 3 character, it is con-
sidered a programming label and no modificatoins are
made to the label data. Other than that, if this configu-
ration item is set to disable, then all function characters
are stripped from the label data.
Disabled is the recommended setting for all interfaces.

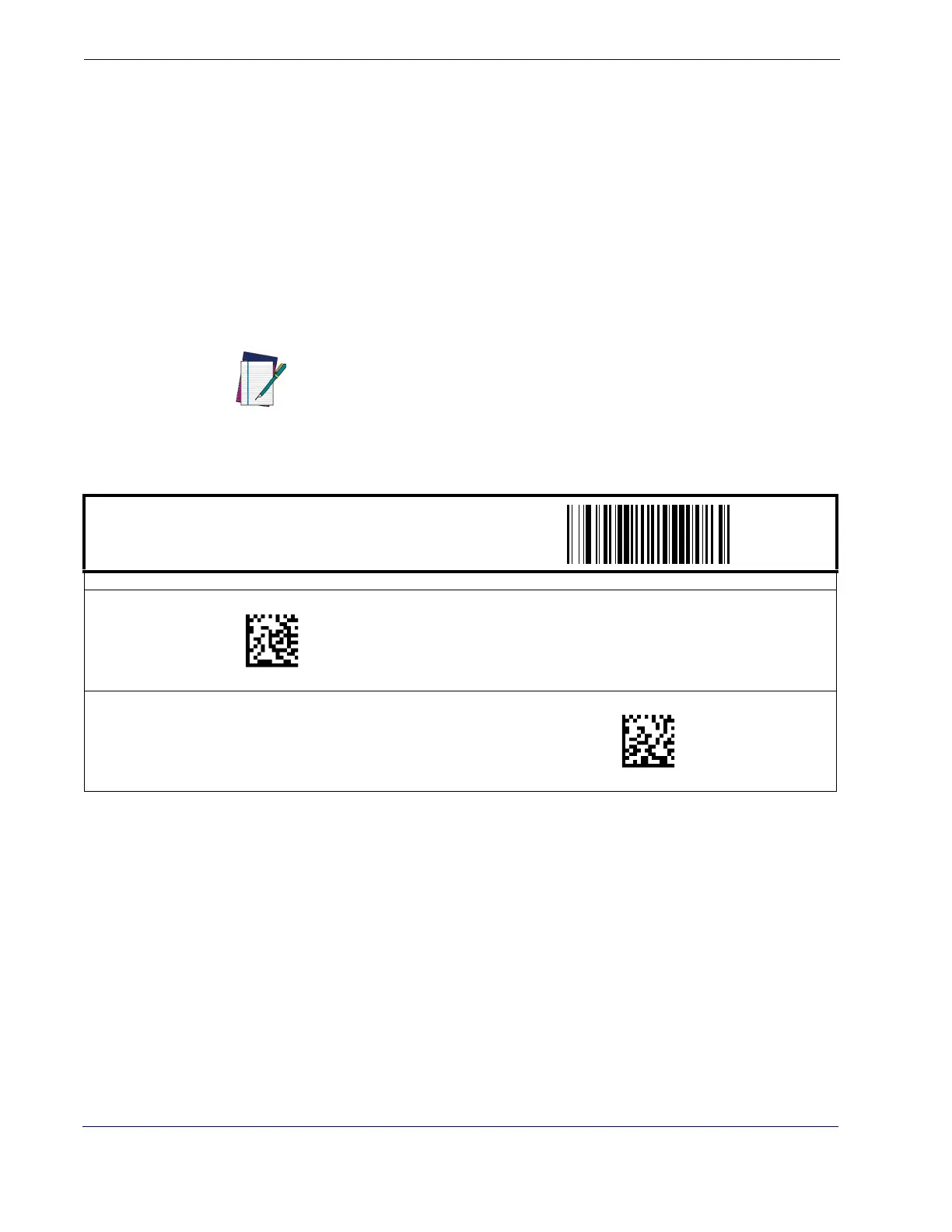

START / END
PROGRAMMING BAR CODES
Don’t Transmit Function Characters
DEFAULT
Transmit Function Characters
02C700(CR)
02C701(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
