PDF 417 — continued

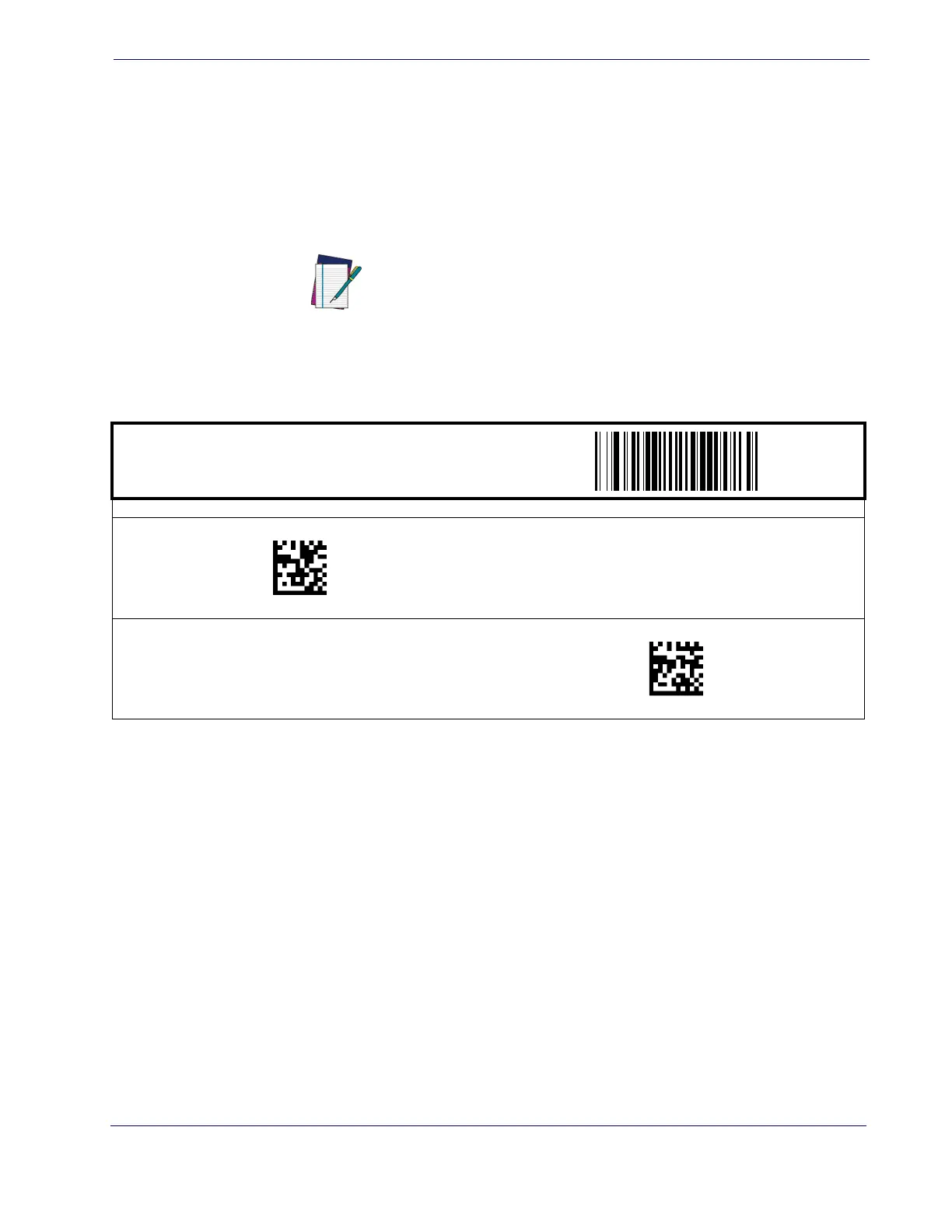

PDF 417 Length 1, Length 2 Programming Instructions
1. Scan the START bar code.
2. Scan either the Set Length 1 or Set Length 2 bar code.
3. Turn to
Alphanumeric Pad and scan the four digits (zero-padded) representing the length.
Scan the END bar code.
NOTE
For PDF 417 bar codes, only the data characters are included in the
length calculations.
Any value set higher than 2710 will be considered to be 2710.
START / END
PROGRAMMING BAR CODES
DEFAULT SETTING FOR THIS FEATURE: 0001
Set Length 1
Set Length 2
DEFAULT SETTING FOR THIS FEATURE: 2710
05A6(CR)
05A7(CR)
