Interface Features
Product Reference Guide 45
USB Keyboard — cont.
Control Characters
Affects suffix and prefix characters. When disabled, only ASCII characters between 20H and
127H inclusive (space... delete) plus special characters 0DH (carriage return), 08H (backspace),
27H (ESC), 09H (right tab) and 0BH (left tab) are transmitted.
Choices are:
• Disable Control Characters
• Enable transmission of control characters to host
• Send characters between 00H and 1FH according to a special function-key mapping
table. (This is used to send keys that are not in the normal ASCII set; a unique set is pro-
vided for each available scancode set. Reference
Appendix E, USB Keyboard Function Key
Mappings
.)

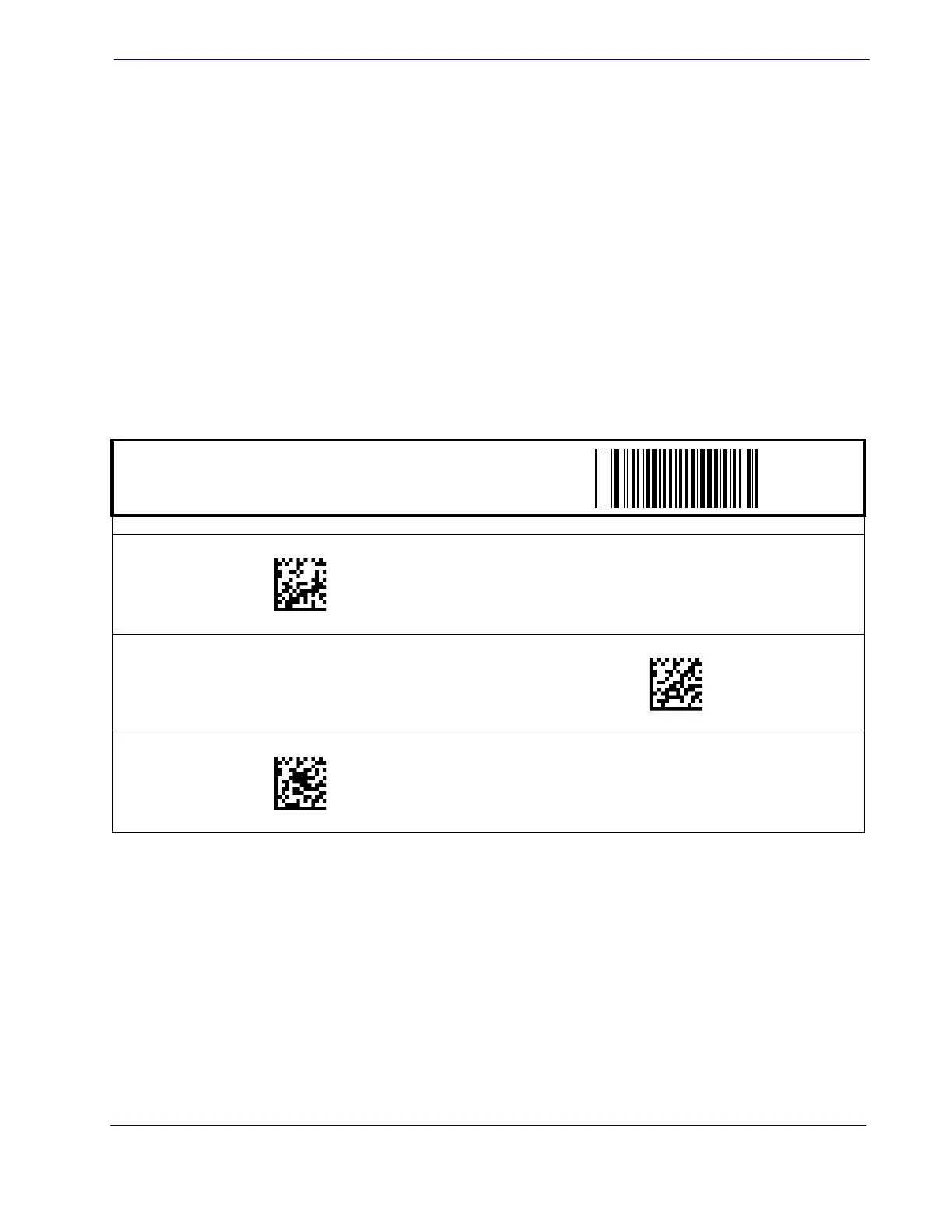

START / END
PROGRAMMING BAR CODES
Disable Control Characters
DEFAULT
Enable Transmission of Control Characters
Enable Function Key Mapping
02C500(CR)
02C501(CR)
02C502(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
