Datalogic Magellan 800i User Manual

Interface Features
Product Reference Guide 37
RS-232 Interface Features — cont.
Retry on ACK NAK Timeout
Specifies the action the scanner performs after the configurable ACK NAK Timeout Value (set
in the following feature) has expired.
ACK NAK Timeout Value

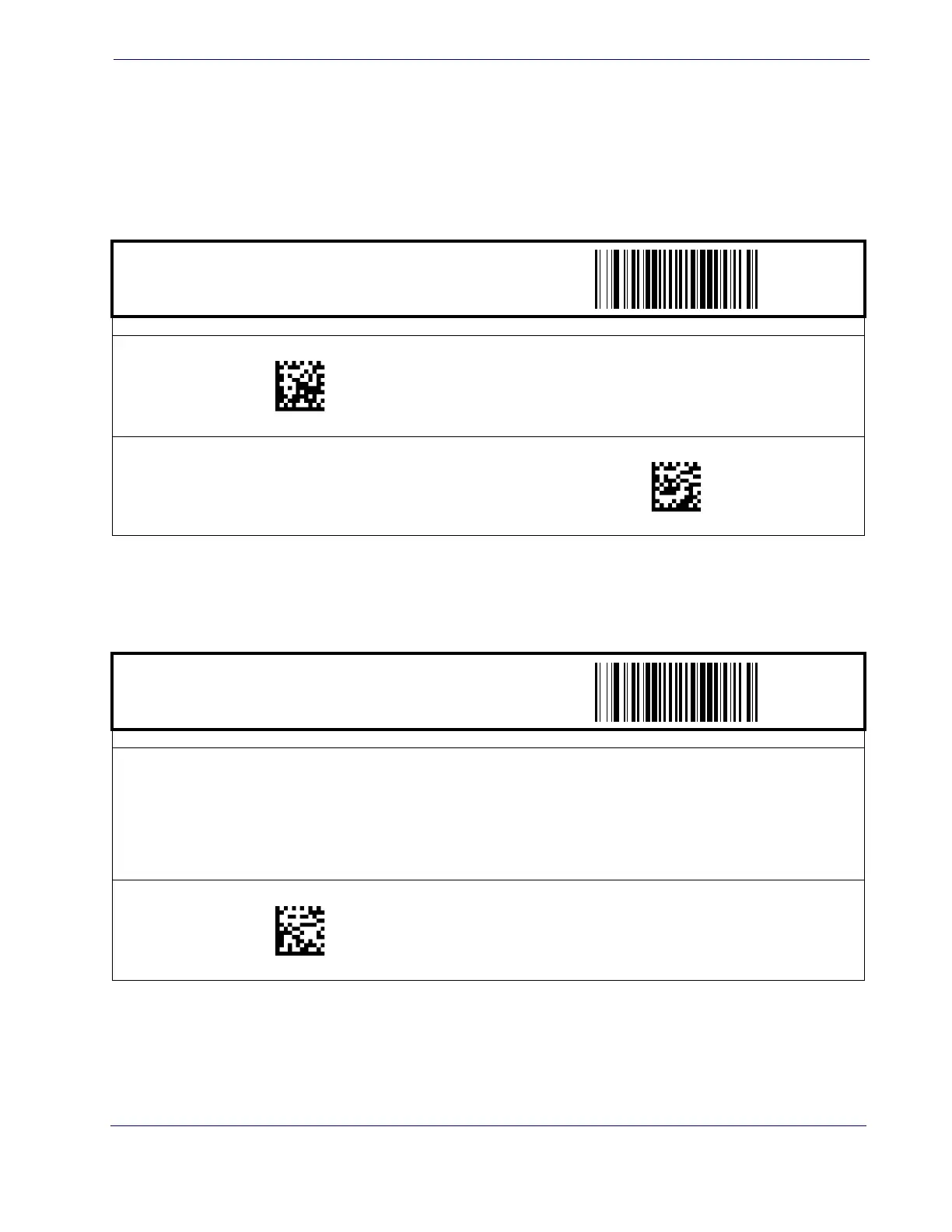

START / END
PROGRAMMING BAR CODES
Disable Retry on ACK NAK Timeout
(Transmission failure occurs)
Enable Retry on ACK NAK Timeout
DEFAULT
032100(CR)
032101(CR)
START / END
PROGRAMMING BAR CODES
This item specifies the time the scanner will wait for an ACK character from the host following a label transmission.
00 = Infinite timeout
01 - 75 = Timeout in 200-millisecond increments
To configure this feature, scan the “START/END” bar code above to place the unit in Programming Mode, then the “Set ACK NAK
Timeout Value,” followed by the two digits (zero padded) from the Alphanumeric table in
Appendix C, Alphanumeric Pad repre-
senting your desired value. Exit programming mode by again scanning the “START/END” bar code above.
DEFAULT SETTING FOR THIS FEATURE: 01 (200 msec)
Set ACK NAK Timeout Value
0606(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
