Interface Related Features
38
Magellan
TM
800i
RS-232 Interface Features — cont.
ACK NAK Retry Count
START / END

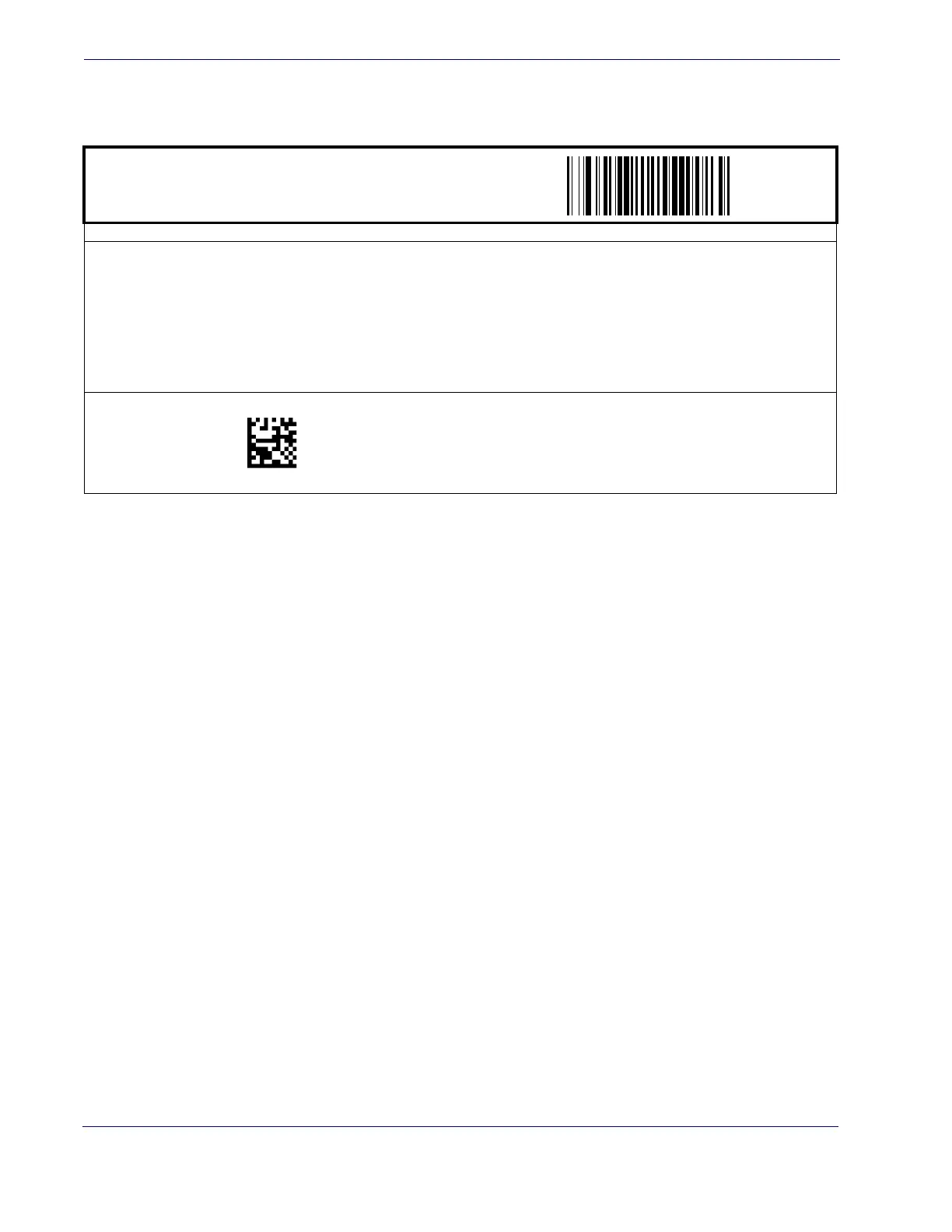

PROGRAMMING BAR CODES
This feature sets the number of times for the scanner to retry a label transmission under a retry condition.
000 = No retry
001 - 254 = Retry for the specified number of times
255 = Retry forever
To configure this feature, scan the “START/END” bar code above to place the unit in Programming Mode, then the “Set ACK NAK
Retry Count,” followed by the three digits (zero padded) from the Alphanumeric table in
Appendix C, Alphanumeric Pad represent-
ing your desired retry count. Exit programming mode by again scanning the “START/END” bar code above
DEFAULT SETTING FOR THIS FEATURE: 003
Set ACK NAK Timeout Value
0608(CR)
