Datalogic Magellan 800i User Manual

Symbologies
100 Magellan
TM
800i
Interleaved 2 of 5
The following options apply to the Interleaved 2 of 5 (I 2 of 5) symbology.
Disable/Enable Interleaved 2 of 5
When this feature is disabled, the scanner will not read Interleaved 2 of 5 bar codes.
Check Digit Calculation
When enabled, the scanner will calculate the check digit of the labels. When disabled, any check
character in the label is treated as a data character
START / END

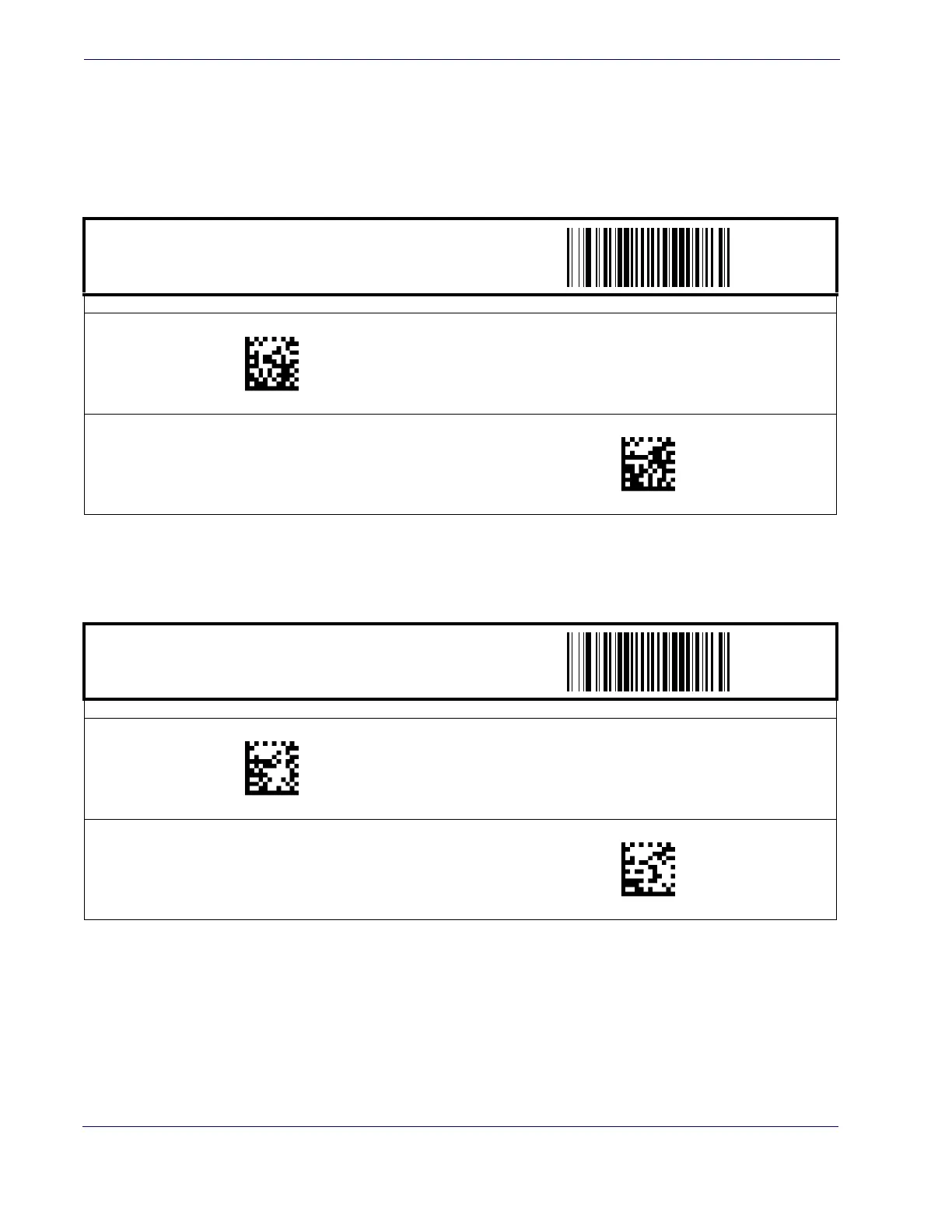

PROGRAMMING BAR CODES
Disable Interleaved 2 of 5
DEFAULT
Enable Interleaved 2 of 5
009000(CR)
009001(CR)
START / END
PROGRAMMING BAR CODES
Disable Check Digit Calculation
DEFAULT
Enable Check Digit Calculation
007000(CR)
007001(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
