Datalogic Magellan 800i User Manual

160 Magellan
TM
800i
USB-OEM, USB Keyboard, USB COM & USB TEC
External Read Indicator (ERI)
1D+
2
3D-
4
5
6
7
8 VBUS_VIN
9GND
10
NOTE
This feature is available only through use of a special cable.
1
2
3
4
5
6
7 ERI_OUT
8 VCC_IN (5V ONLY)
9GND
10

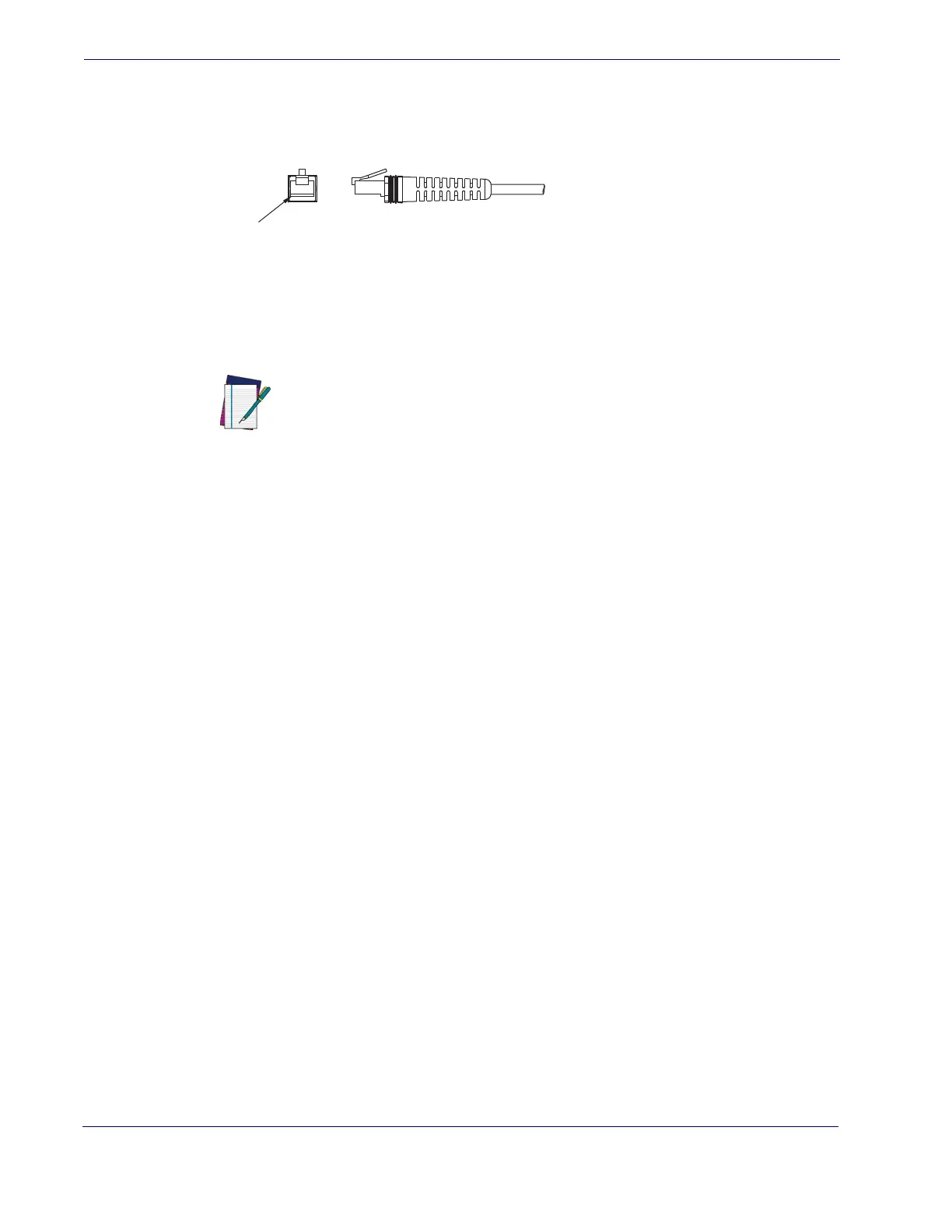

Pin 1
10 Position RJ
(Scanner End)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
