Datalogic Magellan 800i User Manual

Symbologies
122 Magellan
TM
800i
Standard 2 of 5 — continued
Length Control
Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a
bar code if the label length matches one of the configurable fixed lengths.
Variable Length Decoding— When variable length decoding is enabled, the scanner will
decode a bar code if the label length falls in the range of the configurable minimum and maxi-
mum length.
Standard 2 of 5 Length 1, Length 2 Programming Instructions
See page 156 for detailed instructions on setting this feature.

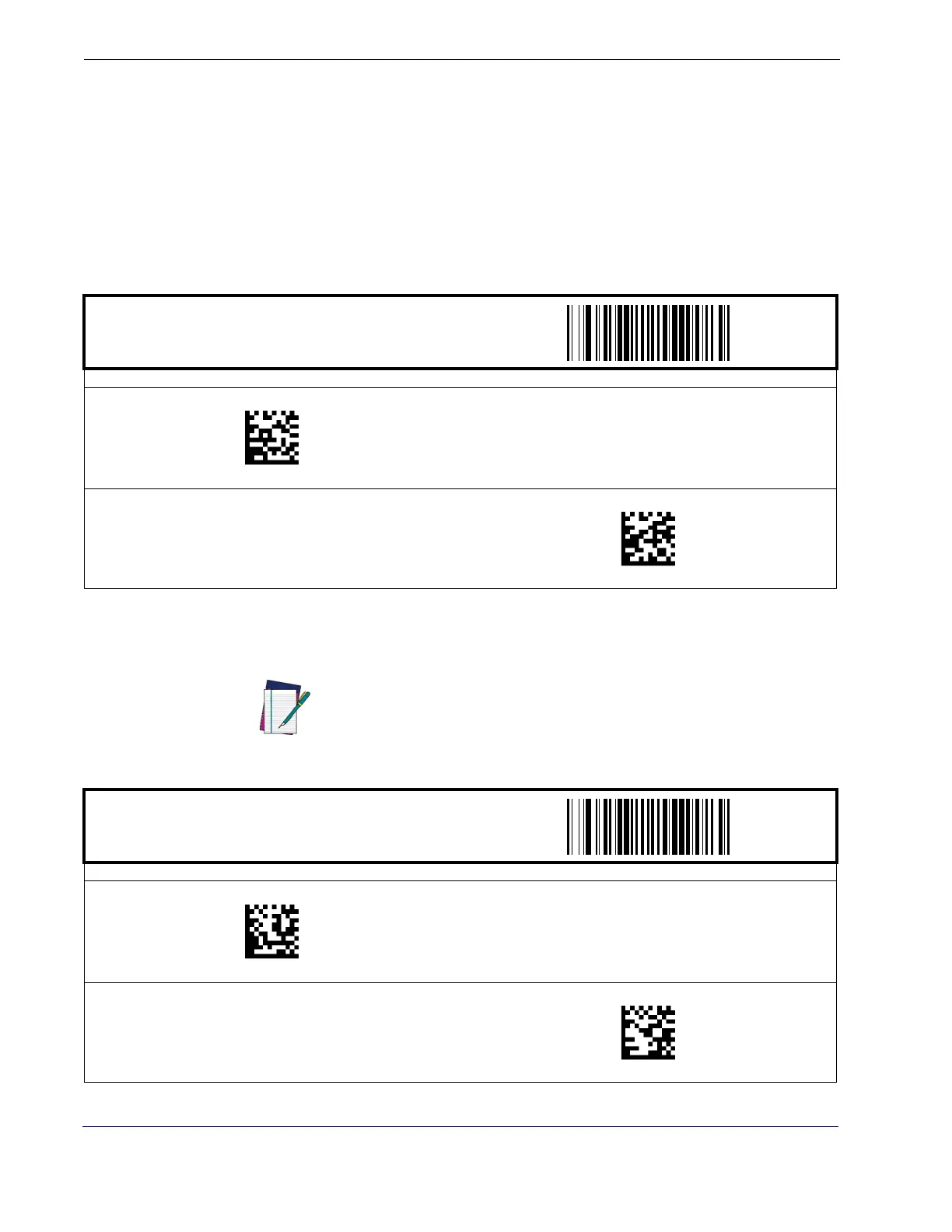

START / END
PROGRAMMING BAR CODES
Variable Length Decoding
DEFAULT
Fixed Length Decoding
049700(CR)
049701(CR)
NOTE
For Standard 2 of 5 BAR CODES, all check and
data characters are included in the length calcu-
lations.
START / END
PROGRAMMING BAR CODES
DEFAULT SETTING FOR THIS FEATURE: 08
Set Length 1
Set Length 2
DEFAULT SETTING FOR THIS FEATURE: 50
0498(CR)
0499(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
