Code 39 — continued
Length Control
Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a
bar code if the label length matches one of the configurable fixed lengths.
Variable Length Decoding— When variable length decoding is enabled, the scanner will
decode a bar code if the label length falls in the range of the configurable lengths 1 and 2.
Code 39 Length 1, Length 2 Programming Instructions
See page 156 for detailed instructions on setting this feature.
START / END

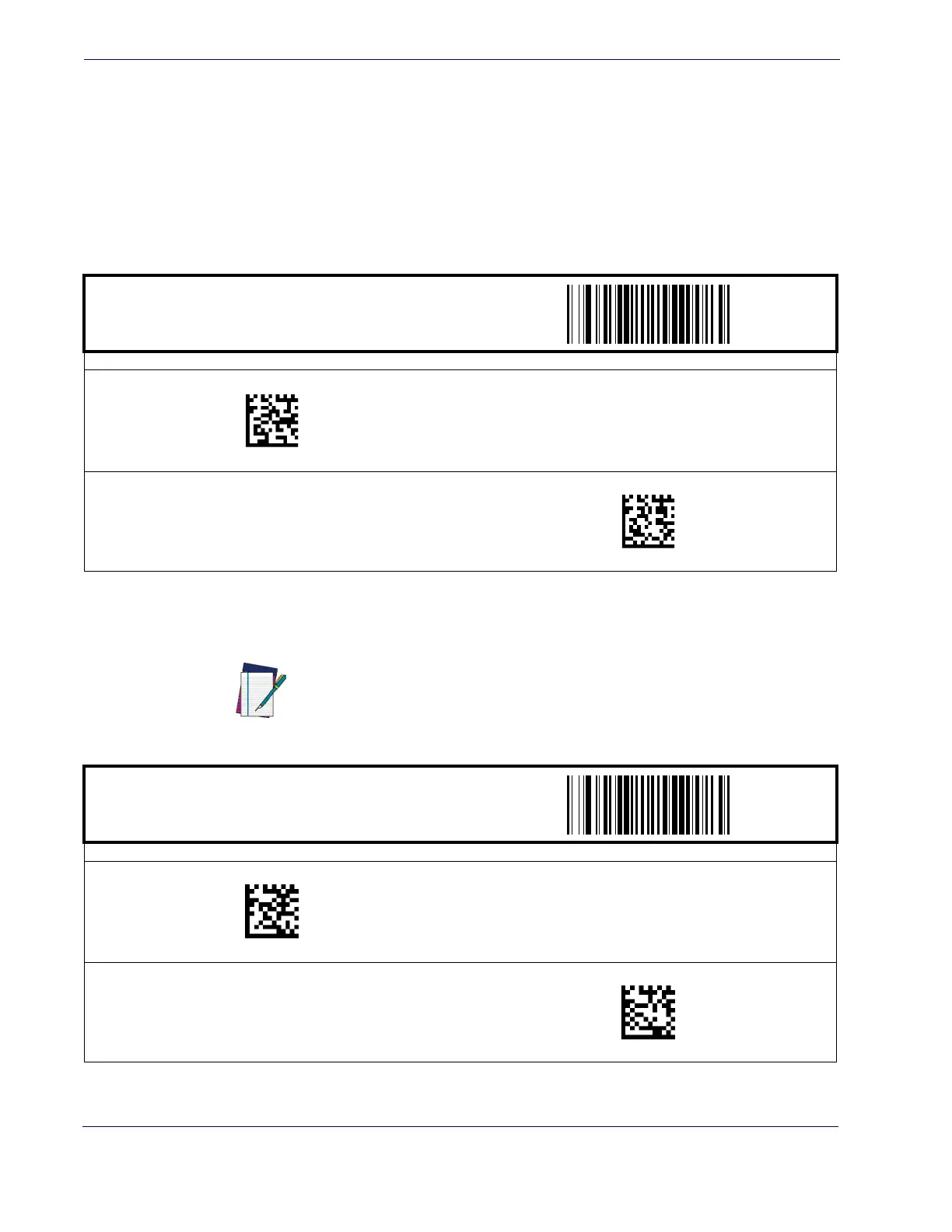

PROGRAMMING BAR CODES
Variable Length Decoding
DEFAULT
Fixed Length Decoding
04B100(CR)
04B101(CR)
NOTE
For Code 39 bar codes, all check, data and full ASCII
shift characters are included in the length calculations.
Start/Stop characters are not included.
START / END
PROGRAMMING BAR CODES
DEFAULT SETTING FOR THIS FEATURE: 02
Set Length 1
Set Length 2
DEFAULT SETTING FOR THIS FEATURE: 50
04B2(CR)
04B3(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
