Symbologies
108
Magellan
TM
800i
Codabar continued

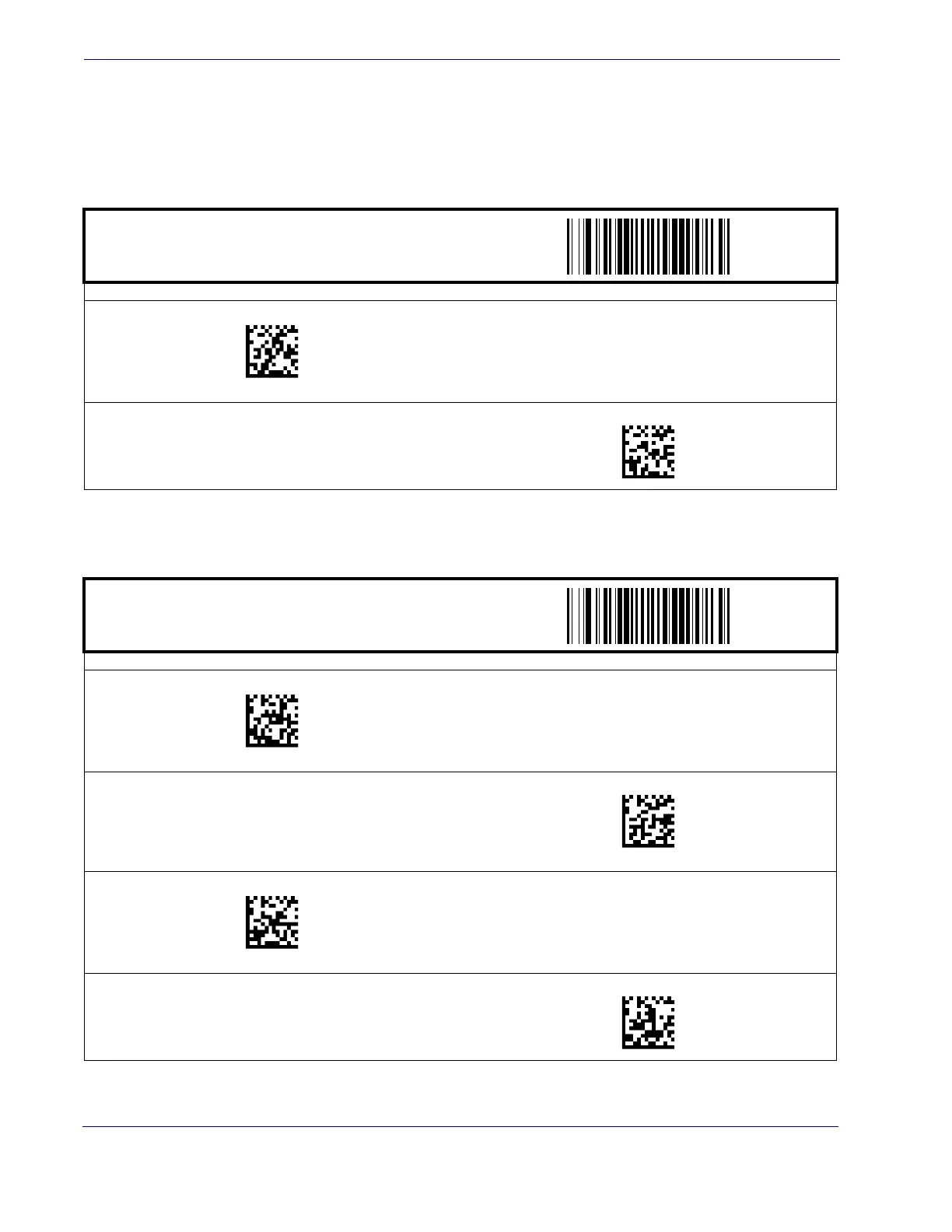

Quiet Zones
This feature enable/disables the requirement that quiet zones must be present for Codabar bar
codes.
Start/Stop Character Type
Codabar has four pairs of Start/Stop patterns. Select one pair to match your application.
START / END
PROGRAMMING BAR CODES
Don’t require Quiet Zones
DEFAULT
Require Quiet Zones
068D00(CR)
068D01(CR)
START / END
PROGRAMMING BAR CODES
Start/Stop Type: ABCD/TN*E
Start/Stop Type: ABCD/ABCD
Start/Stop Type: abcd/tn*e
Start/Stop Type: abcd/abcd
DEFAULT
022E00(CR)
022E01(CR)
022E02(CR)
022E03(CR)
