Interleaved 2 of 5
Product Reference Guide 103
Interleaved 2 of 5 — continued

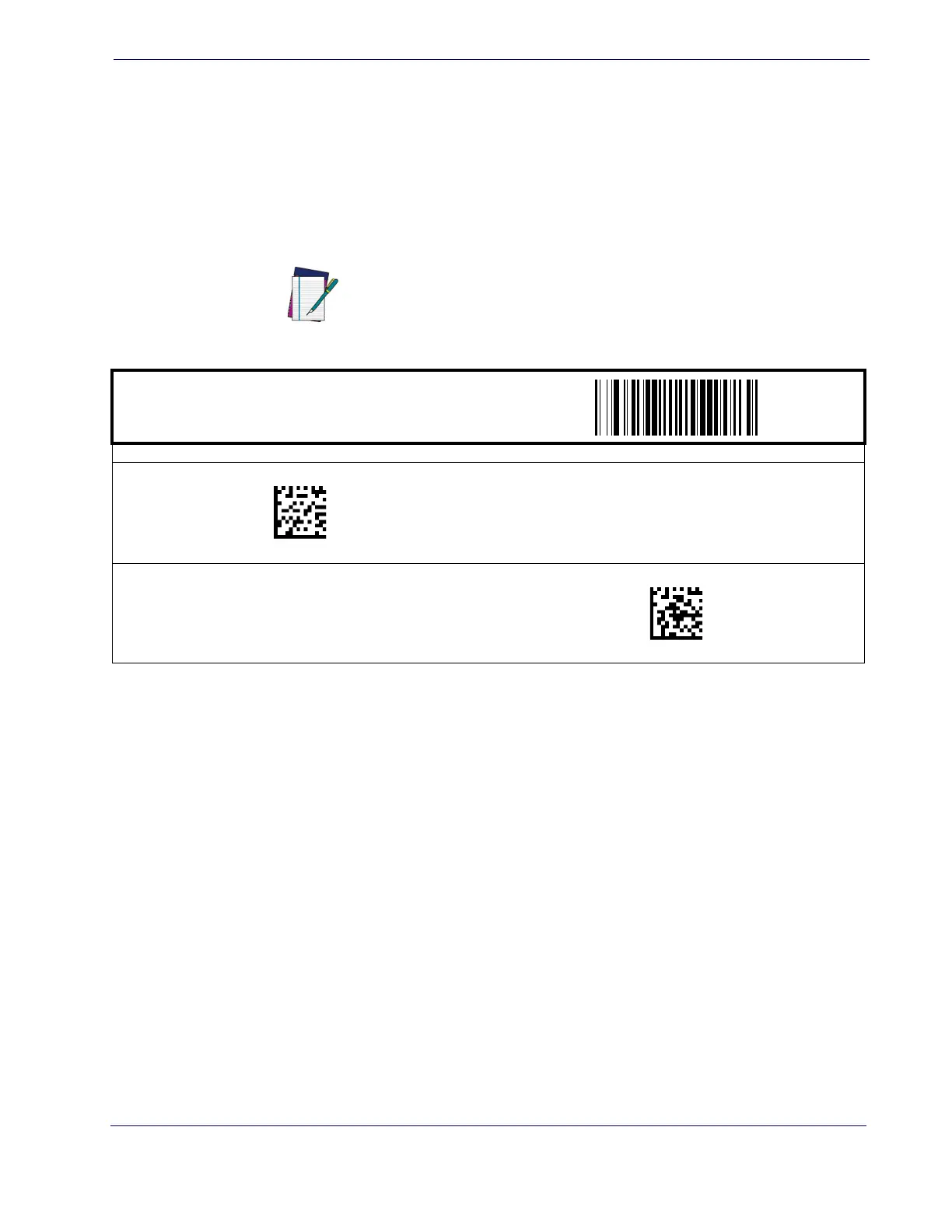

Interleaved 2 of 5 Stitching
Enables/disables stitching for Interleaved 2 of 5 labels. When parts of an Interleaved 2 of 5 bar
code are presented to the scanner with this feature enabled, the bar code parts will be assembled
by the scanner’s software, and the data will be decoded if all bar code proofing requirements are
met.
NOTE
Only functions when
Fixed Length Decoding is enabled.
START / END
PROGRAMMING BAR CODES
Disable Interleaved 2 of 5 Stitching
DEFAULT
Enable Interleaved 2 of 5 Stitching
06AF00(CR)
06AF01(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
