Interface Related Features
40
Magellan
TM
800i
RS-232 Interface Features — cont.
Transmission Failure Indication
Enables/disables bad-label indication upon transmission failure.
USB-OEM Interface Features
USB-OEM Device usage
The USB-OEM protocol allows for the scanner to be identified as one of two different types of
bar code scanners. Changing this value from the factory setting may be necessary when connect-
ing two of the same scanner type to a POS system.
Options are:
Table Top Scanner
Handheld Scanner

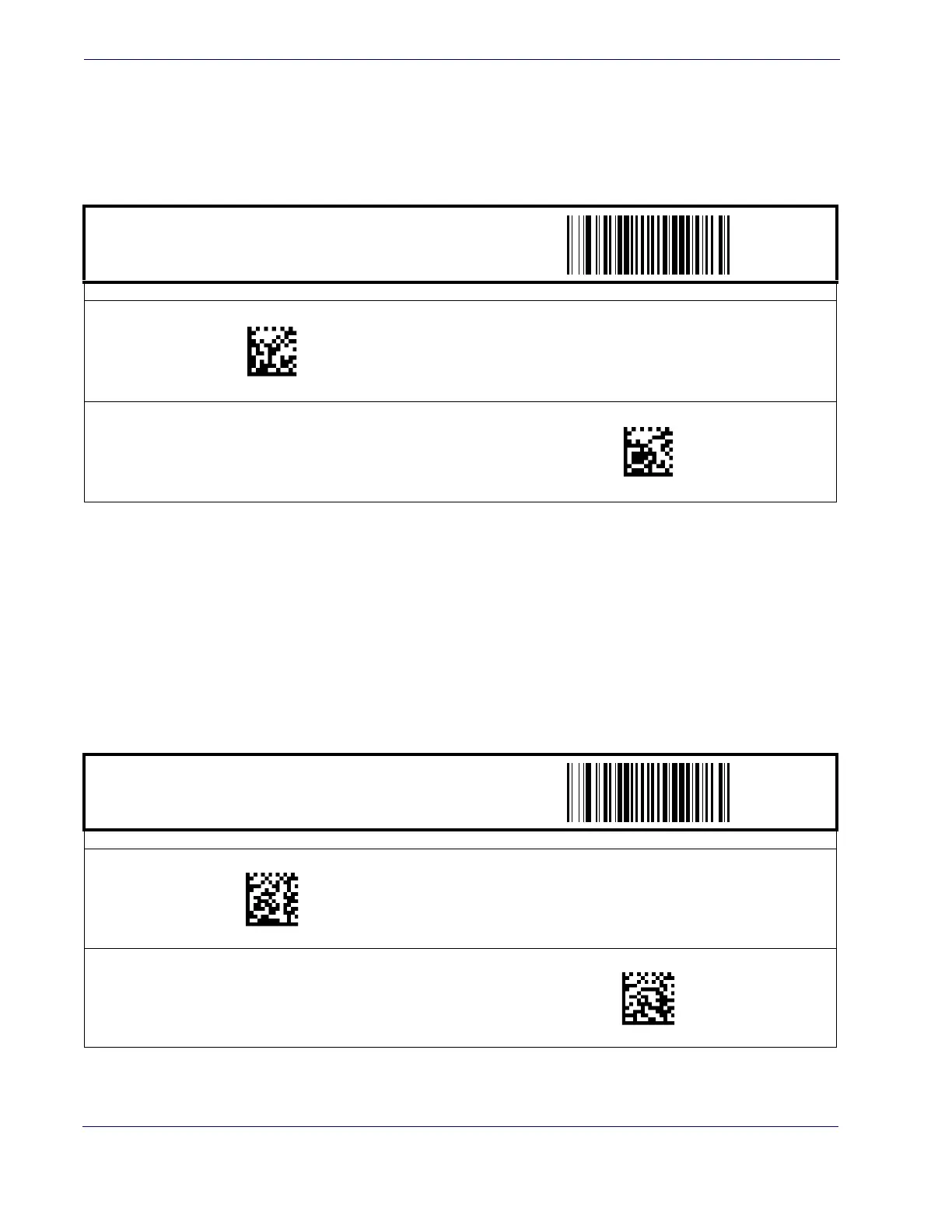

START / END
PROGRAMMING BAR CODES
Disable Transmission Error Indication
Enable Transmission Error Indication
DEFAULT
032200(CR)
032201(CR)
START / END
PROGRAMMING BAR CODES
Configure as Table Top Scanner
DEFAULT
Configure as Handheld Scanner
050D00(CR)
050D01(CR)
