Datalogic Magellan 800i User Manual

Label ID
Product Reference Guide 155
Label ID
A Label ID is used to identify a bar code (symbology) type. See Appendix D, Default Settings, for
a listing for common symbologies. It can be appended previous to or following the transmitted
bar code data depending upon how this option is enabled. This feature provides options for
configuring custom Label IDs individually per symbology. If you wish to program the scanner
to always include an industry standard label identifier for ALL symbology types, see the feature,
AIM ID.
The Label ID is a customizable code of up to three ASCII characters (each of which are 00-7F)
followed by a control character (00-01), This control character, when set to zero, does nothing.
When set to one, it appends the symbology’s AIM ID to the Label ID.
To configure a Label ID:
1. Scan the START bar code.
2. Select Label ID position as either BEFORE or AFTER by scanning the appropriate bar
code.
3. Scan a bar code to select the symbology for which you wish to configure a custom Label
ID.
4. Determine the desired character(s) (you may choose up to three) which will represent the
Label ID for the selected symbology. Next, turn to the
ASCII Chart on the inside back
cover of this manual and find the equivalent hex digits associated with your choice of
Label ID. For example, if you wish to select an equal sign (=) as a Label ID, the chart indi-
cates its associated hex characters as 3D.
5. Turn to
Appendix C, Alphanumeric Pad and scan the bar codes representing the hex charac-
ters determined in the previous step. For example, to make an equal sign (=), scan ‘3’ and
‘D’ followed by ‘0’ six times. Since this is a three-character buffer, ‘00’ is scanned for char-
acter two, ‘00’ for character three and ‘00’ for the control character. (‘00’ indicates no
character.)
6. Scan the END bar code to exit programming mode.

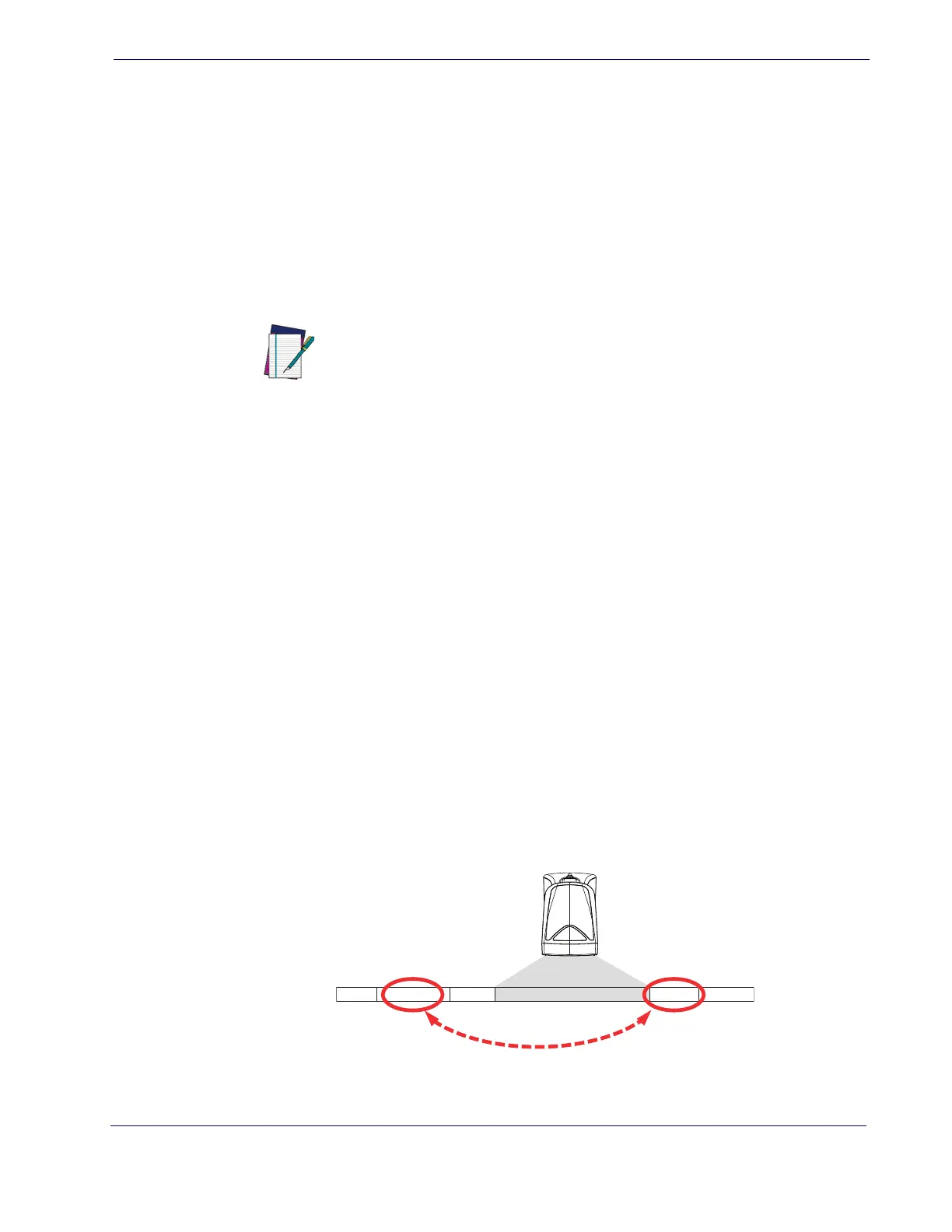

Figure 8. Label ID Position Options
NOTE
When the control character is set to 01 for UPC-A and
UPC-E, it expands the label to EAN-13 and thus follows
the EAN-13 Label ID settings.
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
