Datalogic Magellan 800i User Manual

Interface Related Features
36 Magellan
TM
800i

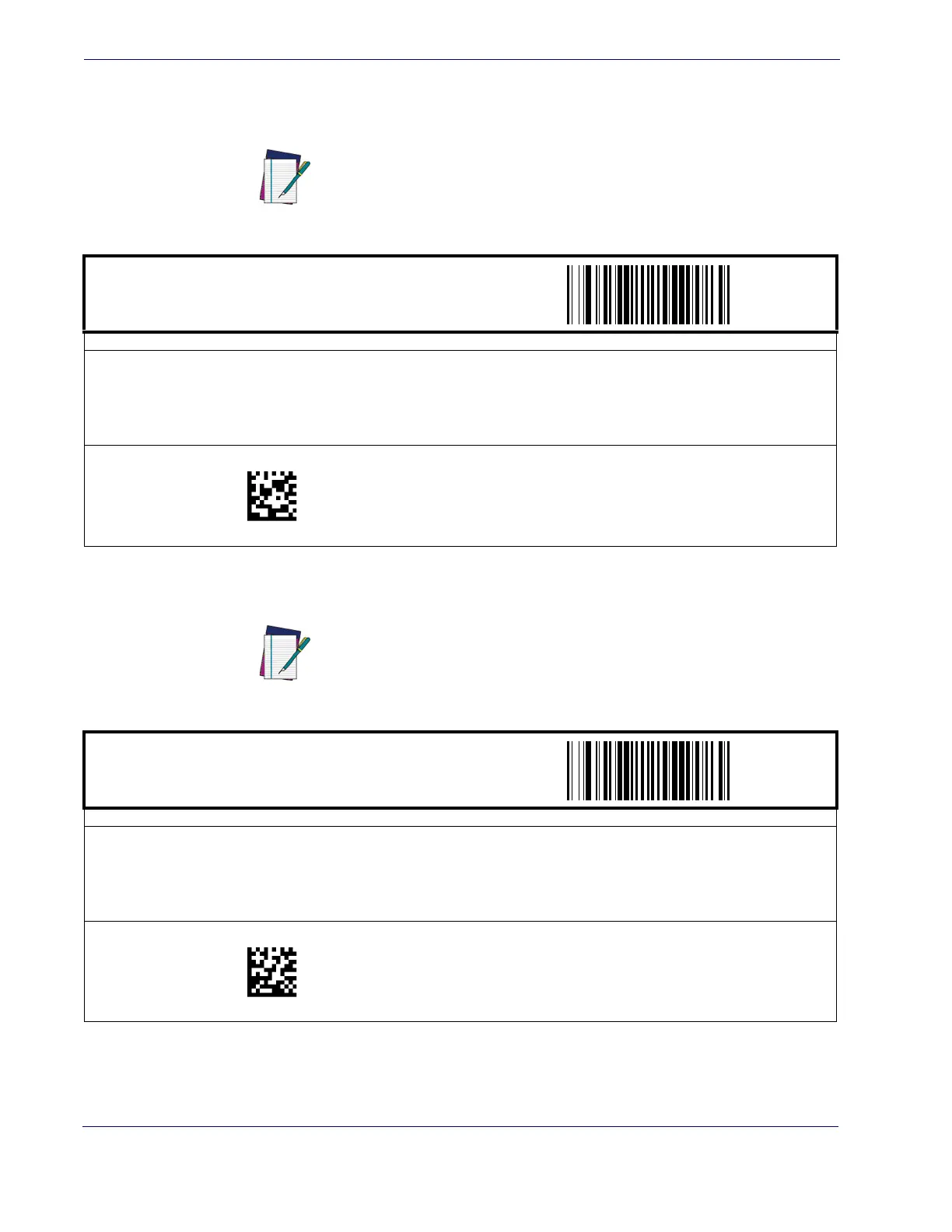

RS-232 Interface Features — cont.
ACK Character
NAK Character
NOTE
Setting to previously defined characters such as
XON, XOFF, or host commands conflicts with normal
operation of these characters; 8-bit data is not recog-
nized when the Number of Data Bits = 7 ASCII charac-
ters or any hex value from 0 to FF.
START / END
PROGRAMMING BAR CODES
Sets the ACK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits
with zeros, as in “005”. To configure this feature, scan the “START/END” bar code above to place the unit in Programming Mode,
then the “Set ACK Character,” followed by the digits from the Alphanumeric table in
Appendix C, Alphanumeric Pad representing
your desired character. Exit programming mode by again scanning the “START/END” bar code above.
DEFAULT SETTING FOR THIS FEATURE: 006
Set ACK Character
031F(CR)
NOTE
Setting to previously defined characters such as
XON, XOFF, or host commands conflicts with normal
operation of these characters; 8-bit data is not recog-
nized when the Number of Data Bits = 7 ASCII charac-
ters or any hex value from 0 to FF.
START / END
PROGRAMMING BAR CODES
Sets the NAK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits
with zeros, as in “005”. To configure this feature, scan the “START/END” bar code above to place the unit in Programming Mode,
then the “Set NAK Character,” followed by the digits from the Alphanumeric table in
Appendix C, Alphanumeric Pad representing
your desired character. Exit programming mode by again scanning the “START/END” bar code above.
DEFAULT SETTING FOR THIS FEATURE: 021
Set NAK Character
0320(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
