Label ID
Product Reference Guide 55

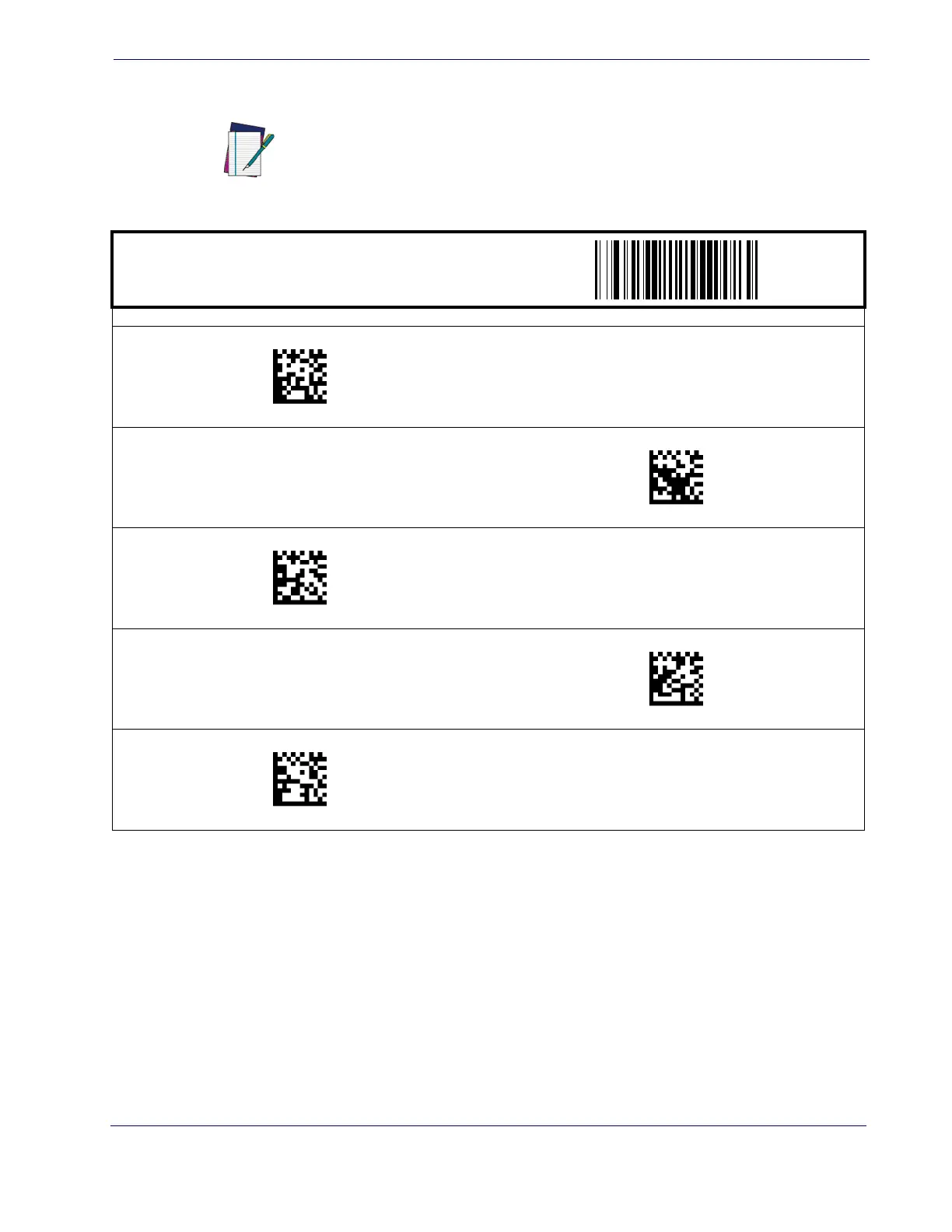

Label ID — cont.
NOTE
For the 2D symbologies on this page, the Label ID is 4 bytes. The first 3
bytes are characters for the label ID. A 00 (hex) value in the first 3 bytes indi-
cates the end of the label ID characters. The 4th byte is a control byte.
The use of the control byte is as follows:
bit 0-if set to 1, the AIM Id is appended for that label type
START / END
PROGRAMMING BAR CODES
DEFAULT SETTING FOR THIS FEATURE: mP (6D500000 hex)
Set Micro PDF 417 Label ID Character(s)
Set QR Code Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: QR (51520000 hex)
DEFAULT SETTING FOR THIS FEATURE: $Q (2451 hex)
Set Micro QR Code Label ID Character(s)
Set Maxicode Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: MC (4D430000 hex)
DEFAULT SETTING FOR THIS FEATURE: Az (417A0000 hex)
Set Aztec Label ID Character(s)
0353(CR)
03DC(CR)
0429(CR)
03D5(CR)
0435(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
