Datalogic MAGELLAN 8300 Product Reference Guide

4-14 Magellan
®
8300/8400

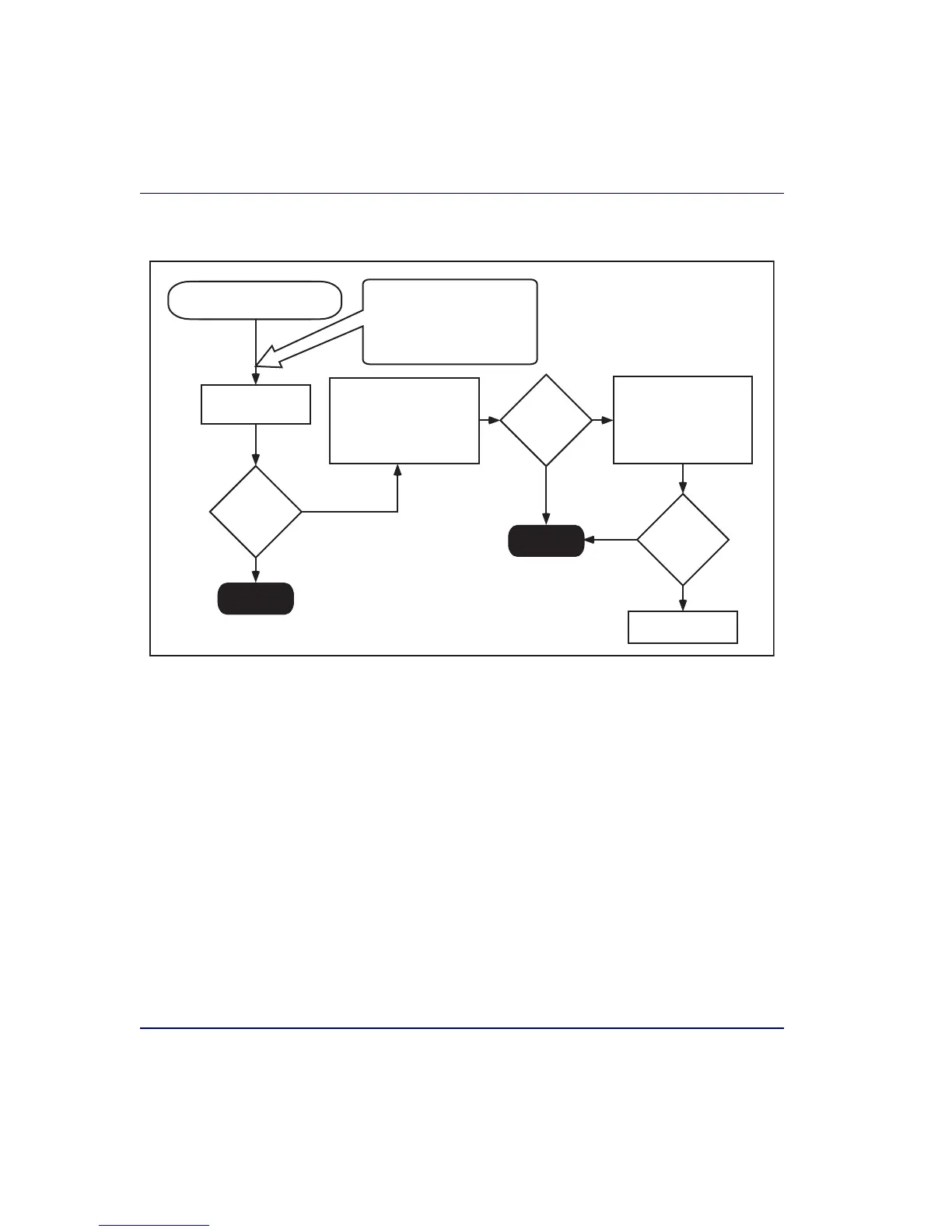

Figure 4-8. Problem Isolation: EAS System
DONE
DONE
NO EAS DEACTIVATION
START
Verify programmable
parameters using the
information and programming
bar codes provided in Section
6. Check EAS options, and
other configurable features.
Call Tech Support.
YES
YES
NO
NO
Does the
EAS Antenna
deactivate
labels
?
Does the
EAS Antenna
deactivate
labels
?
Check all EAS
cable connections.
If possible, retest the
system substituting
known-good EAS cable
and/or other EAS
equipment.
YES
NO
Does the
EAS Antenna
deactivate
labels
?
Before proceeding, verify the EAS
Antenna and associated equipment
have been correctly installed (ref.
Chapter 2). Ensure operator has
been trained in proper EAS system
use (ref. Chapter 3).

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
