MATRIX 300N™ REFERENCE MANUAL
86
5

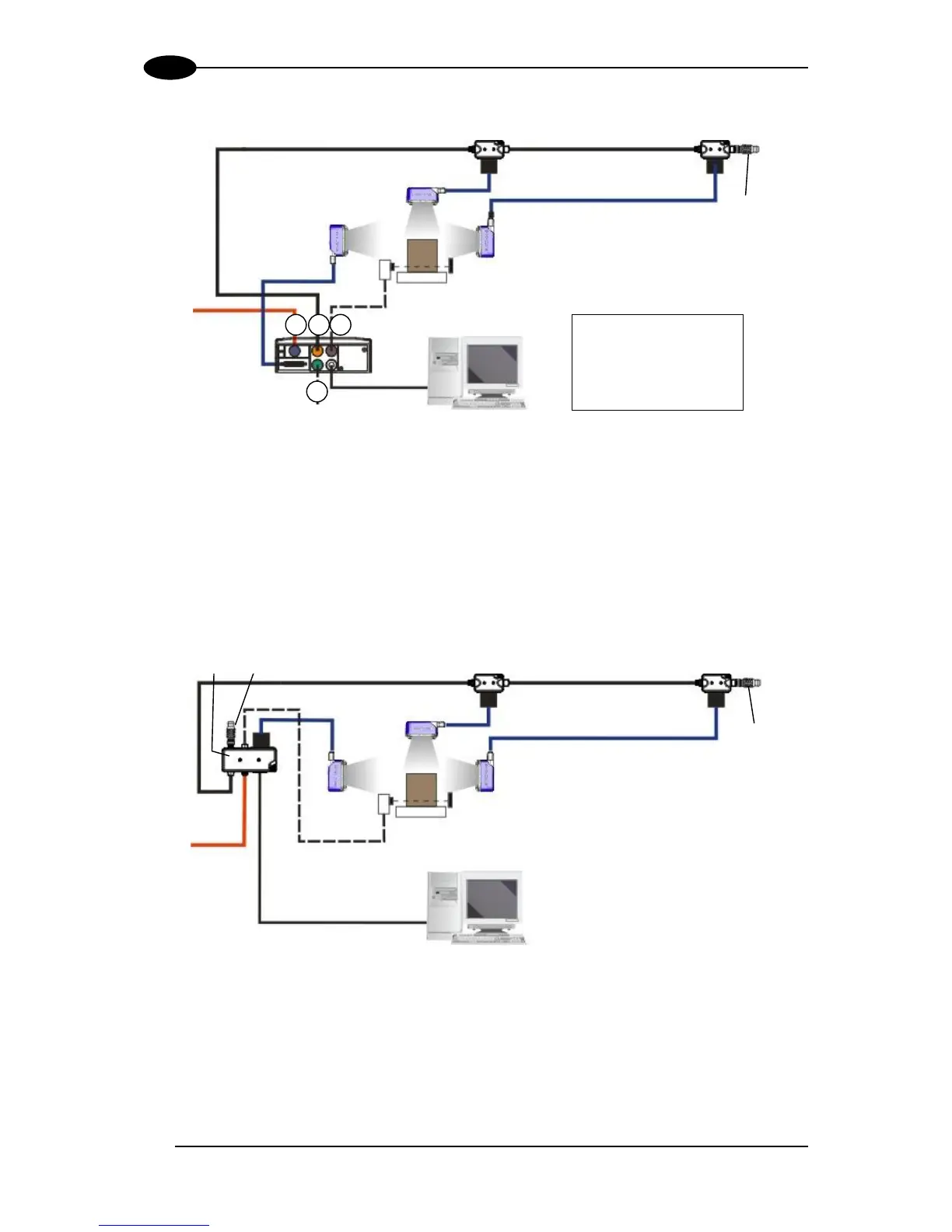

Figure 64 - ID-NET Synchronized Layout
Matrix 300N Master with CBX500 + Matrix 300N Slaves with QL100
If the Backup and Restore function is not required, then a QL300 can be used to connect the
master reader.
Figure 65 - ID-NET Synchronized Layout
Matrix 300N Master with QL300 + Matrix 300N Slaves with QL100
Host
QL100
PS
Power
Main Interface
The ID-NET network must be terminated inserting an
ID-NET terminator into the QL300 (Master) and into the
last QL in the network.
Slave Nodes
CBL-1480-xx
CAB-PW-EXT
CBL-1480-xx
Master
QL100
CBL-1490
ID-NET
Terminator
CBL-1496
ID-NET
Terminator
QL300
ID-NET
Host
QL100
2
1
3
PS
Power
CBX500
CBL-1490
ID-NET
Terminator
The ID-NET network must be terminated through the
internal switch of the CBX500 and inserting an ID-NET
terminator into the last QL in the network.
Slave Nodes
4
CBL-1480-xx
CAB-PW-EXT
CAB-AUX03
CBL-1480-xx
 BA600 ID-NET Out
 BA400 Ext. Power
 BA500 Trigger
 BA300 Service
QL100
Master
Main
ID-NET
CAB-DSxx-S

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
