TYPICAL LAYOUTS
87
5
The same configuration can be made to a Host using the on-board Ethernet interface to the
Master. The TCP/IP Ethernet and ID-NET interfaces are connected as shown in the figure
below.

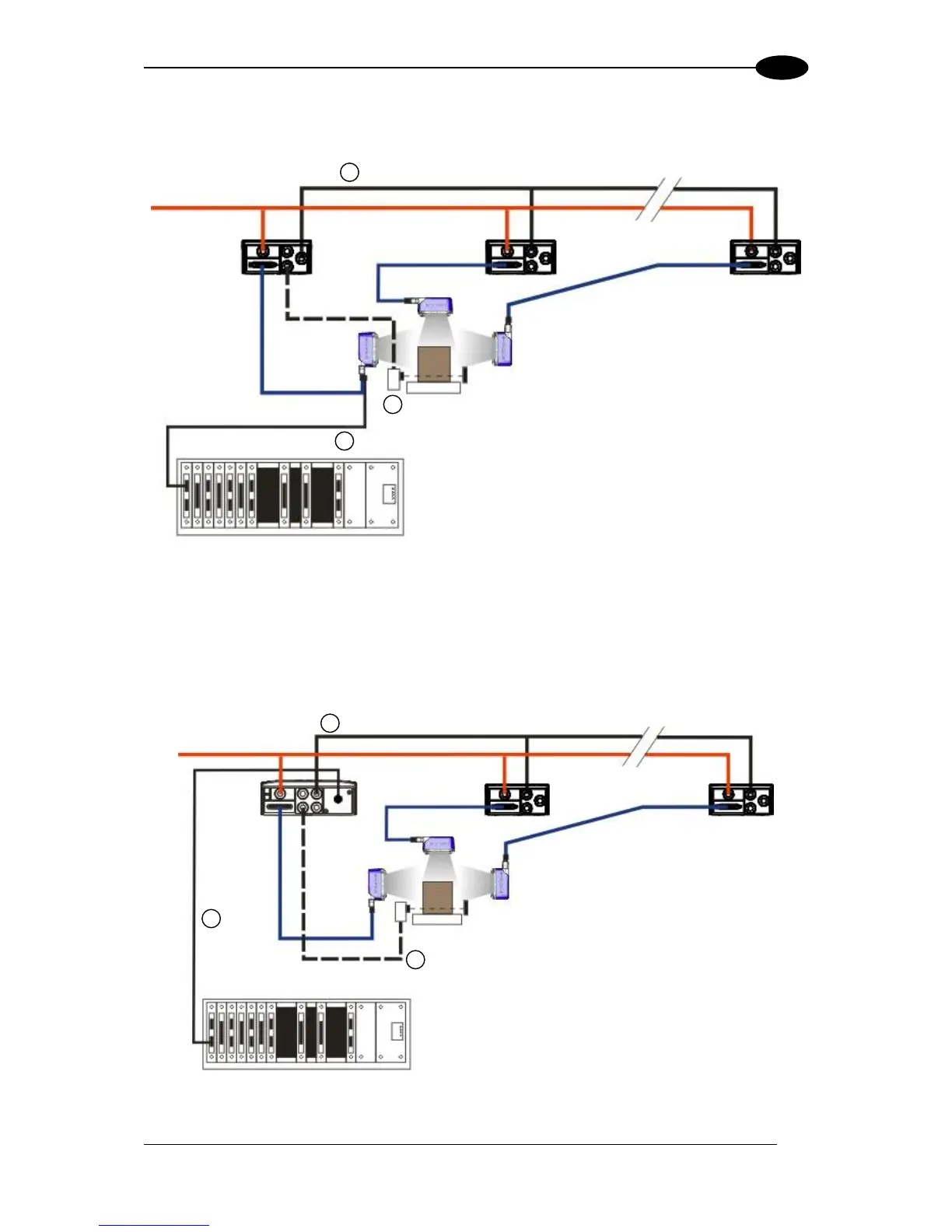

Figure 66 – ID-NET M/S Synchronized Layout with on-board TCP/IP Ethernet Interface to Host
Alternatively, the Master reader can communicate to the Host as a Slave node on a Fieldbus
network. This requires using an accessory Fieldbus interface board installed inside the
CBX500 connection box. System configuration can be accomplished through the Ethernet
interface of each individual reader using the DL.CODE configuration program or Host Mode
programming.
Figure 67 – ID-NET Fieldbus M/S Synchronized Layout
Host
 TCP/IP on-board Ethernet Interface
 External Trigger
 ID-NET (up to 16 devices - practical limit)
1
3
2
Master
Slave#1
Slave#n
Power
CBX100
CBX500
 Fieldbus Interface
 External Trigger (for One Shot or Phase Mode)
 ID-NET (up to 16 devices - practical limit)
Host
2
Master
Slave#1
Slave#n
Power
1
3

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
