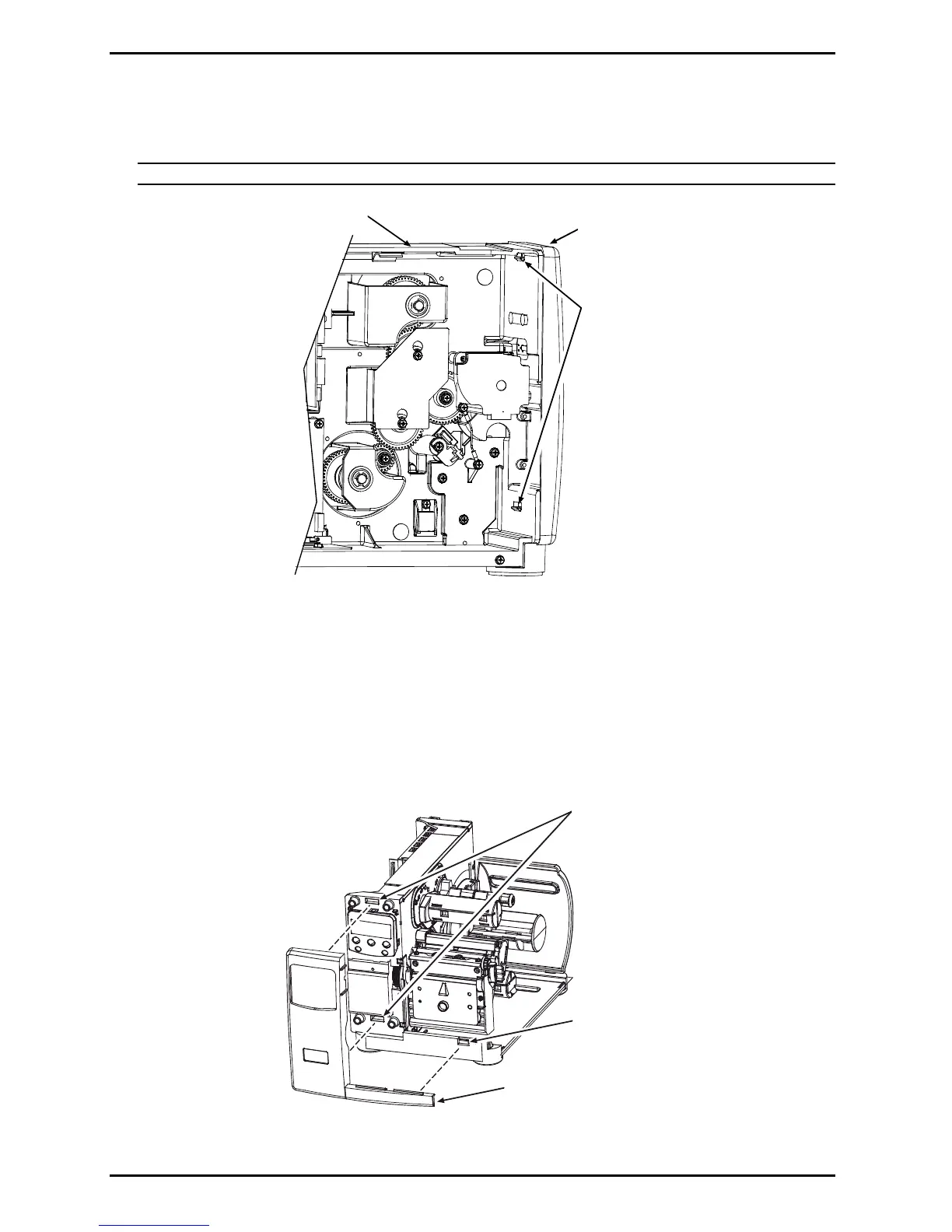

Removal and Replacement
4-3
3. Slightly bend the Tabs that extend through notches in the Centerplate and Baseplate then
remove the Front Panel.
Note: Use care when removing the panel from the Baseplate Notch, as Tab access is limited.
Front Panel
Tabs
Centerplate
Replacement:
1. Align the Tabs of the Front Panel to the Centerplate Notches and the Baseplate Notch.
2. Press firmly until the Tabs of the Front Panel lock into place.
3. Reinstall the Cover Assembly (see Section 4.1) and the Fascia (see Section 4.3).
Baseplate
Notch
Centerplate
Notches
Front Panel
Cover
