Datamax I-Class Maintenance Manual

Removal and Replacement
4-16

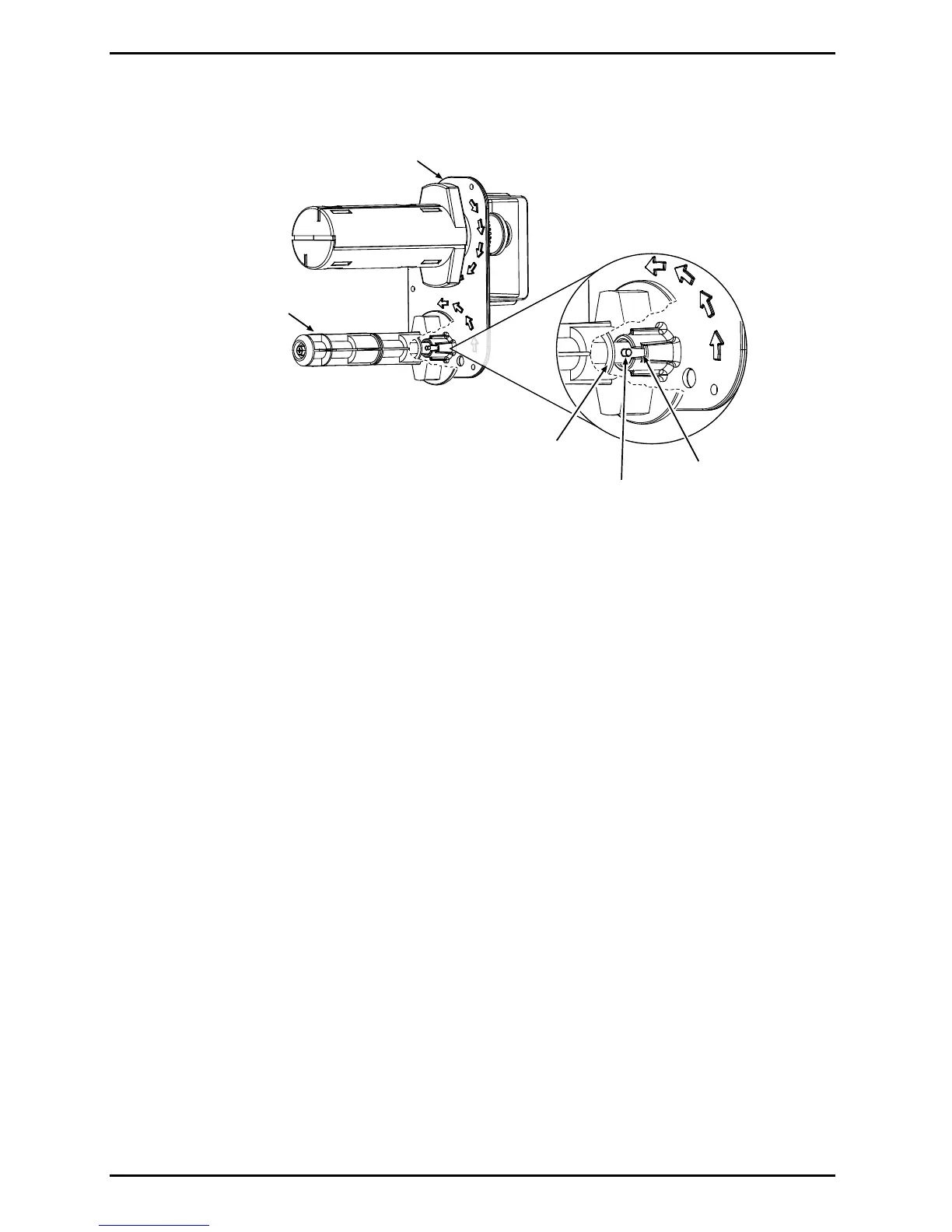

3. Rotate the Ribbon Supply Hub until the Pin engages the Notch in the Housing.
Housing
Nylon
Washer
Pin
Notch
Ribbon
Supply Hub
4. Secure the Ribbon Supply Hub to the Housing with the Metal Washer and Screw.
5. Reinstall the Thermal Transfer Assembly; see Section 4.5.
4.5.2 Ribbon Take-up Hub & Clutch Assembly
Removal:
1. Remove the Thermal Transfer Assembly; see Section 4.5.
2. Remove the E-Ring from the Take-Up Hub shaft and then remove the Inner Bearing.
3. Remove the Take-Up Hub and the Outer Bearing from the Thermal Transfer Housing.
4. Slightly compress the Take-Up Hub Clutch then remove it from the Thermal Transfer Housing.

Datamax I-Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi, or 600 dpi
Max Print Speed	10 inches per second (254 mm/s)
Interface	USB, Serial, Parallel
Media Types	Paper, Polyester, Polypropylene, Vinyl, Nylon
