Datamax I-Class Maintenance Manual

Removal and Replacement
4-4
4.2.1 Front Panel PCB
Removal:
1. Remove the Front Panel; see Section 4.2.
2. Slightly bend the Bezel Tabs, and then remove the Bezel (and Button Panel) from the Front Panel
PCB.
3. Remove the two Screws that secure the Front Panel PCB to the Centerplate then disconnect the
Front Panel Cable and remove the Front Panel PCB.

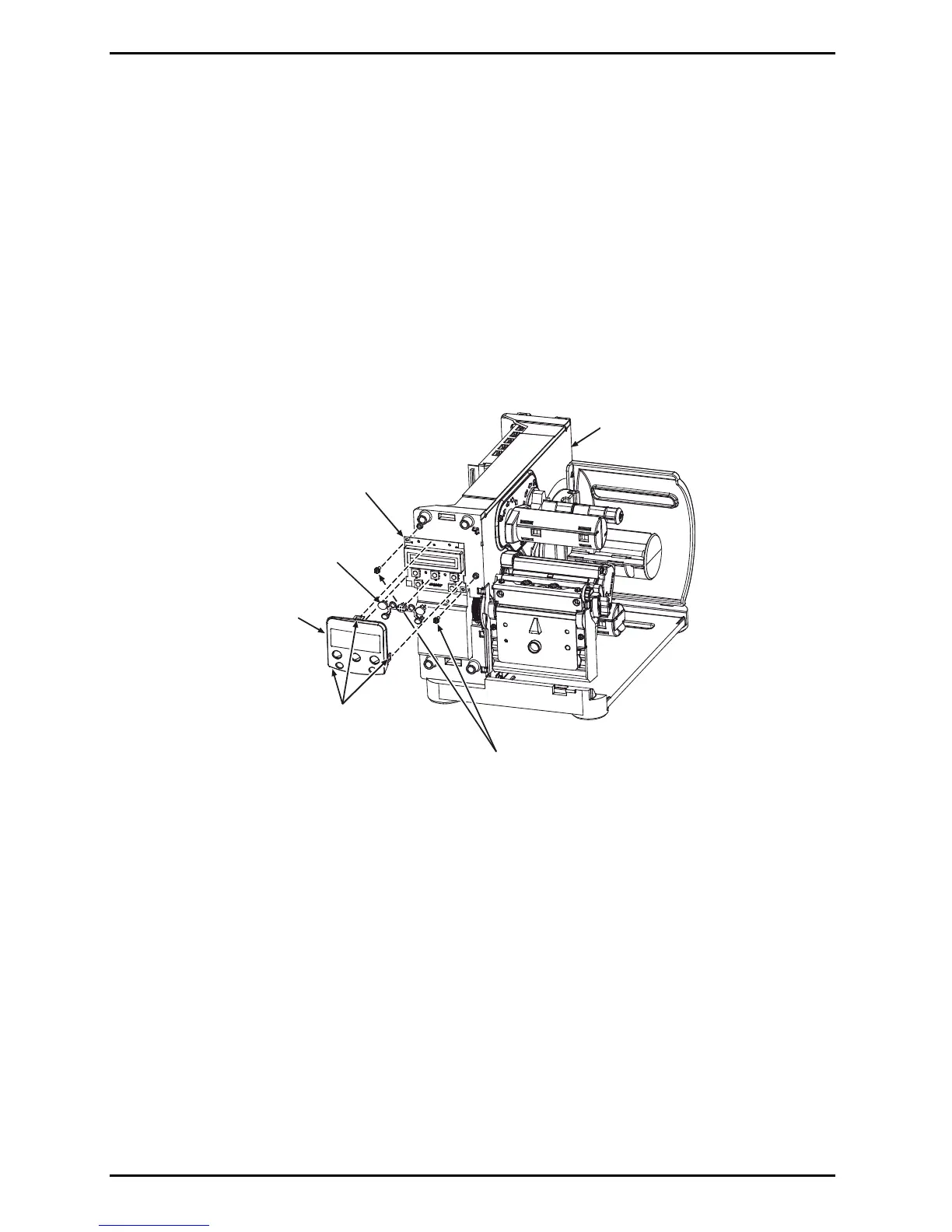

Centerplate
Bezel
Button
Panel
Screws
Front Panel
PCB
Bezel
Tabs
Replacement:
1. Connect the Front Panel Cable to the Front Panel PCB and then attach the Front Panel PCB to the
Centerplate with two Screws.
2. Press firmly until the Bezel Tabs lock into place around the Front Panel PCB.
3. Reinstall the Front Panel; see Section 4.2.

Datamax I-Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi, or 600 dpi
Max Print Speed	10 inches per second (254 mm/s)
Interface	USB, Serial, Parallel
Media Types	Paper, Polyester, Polypropylene, Vinyl, Nylon
