Removal and Replacement
4-11
4.4.1.1 Head Pressure Cams and Springs
Removal:
1. Remove the Printhead Assembly; see Section 4.4.1.

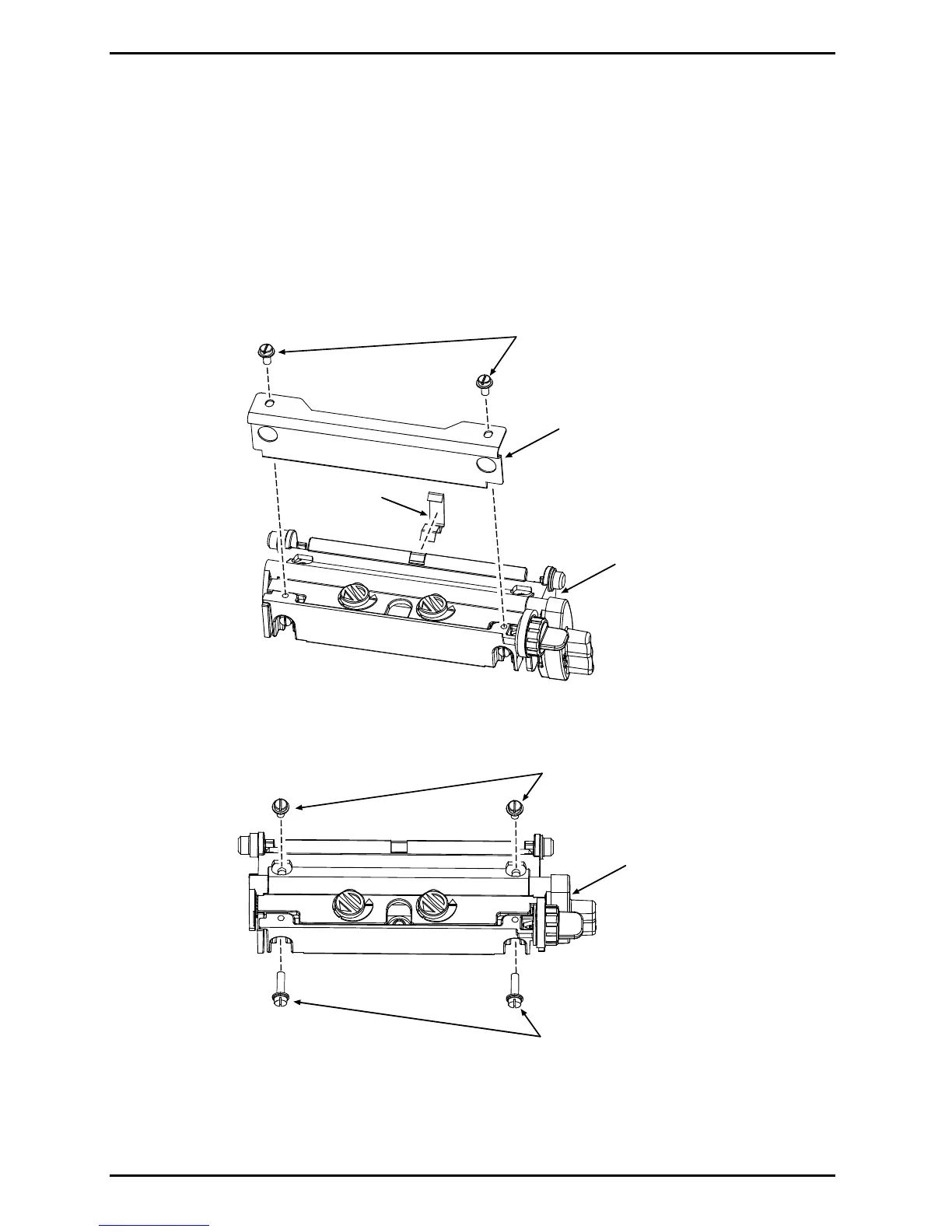

2. Carefully pry the Clip from the Printhead Assembly. Also, remove the two Screws that secure the
Ribbon Shield and then remove it from the Printhead Assembly.
Printhead
Assembly
Ribbon
Shield
Clip
Screws
3. Remove the Locking Screws and the Alignment Screws.
Printhead
Assembly
Alignment
Screws
Locking
Screws
