Datamax I-Class - Rewind Hub, Clutch Assembly, and Spur Gear

Removal and Replacement
4-18

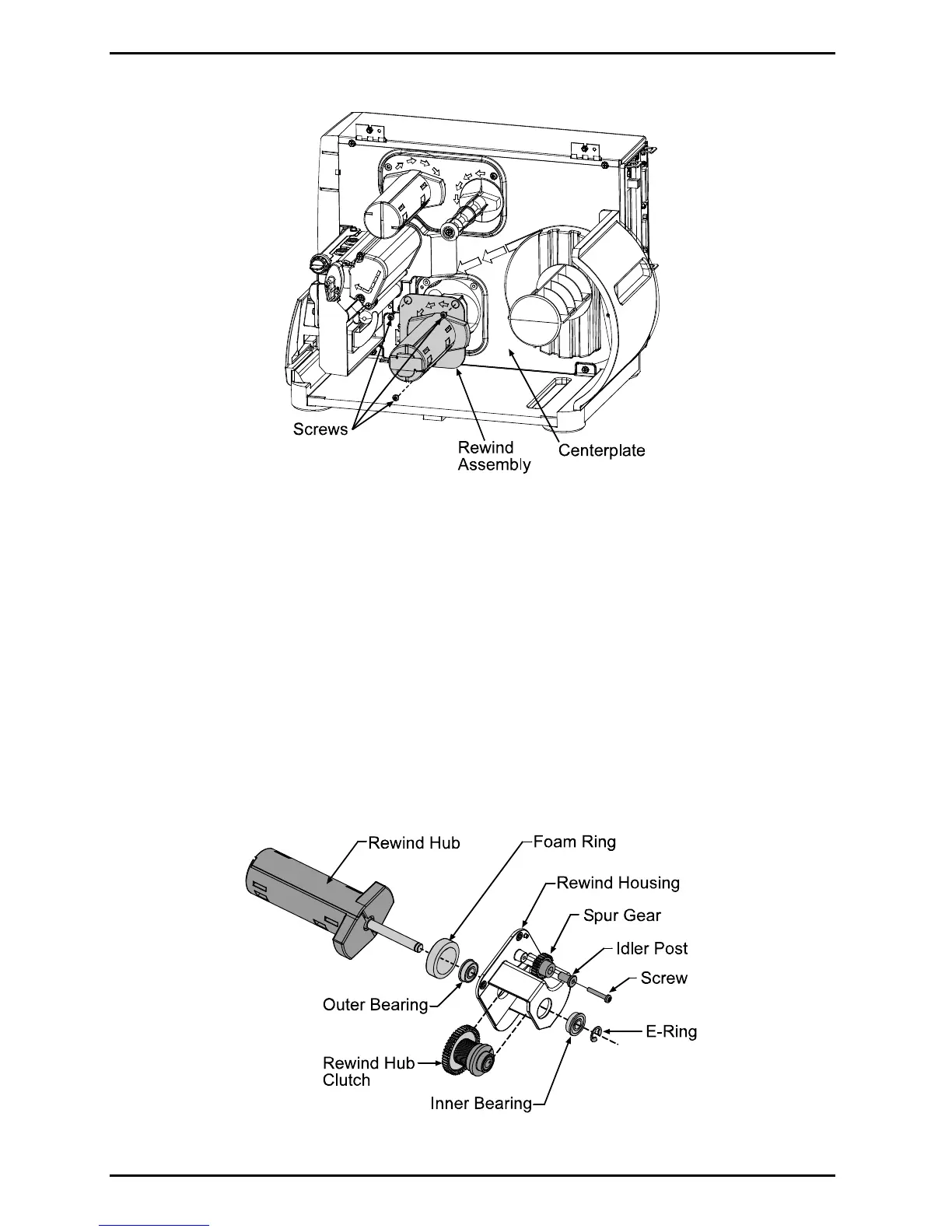

Replacement:
Reinstall the Rewind Assembly in the Centerplate, carefully engaging the gears, and secure it using
the three Screws.
4.6.1 Rewind Hub, Clutch Assembly, and Spur Gear
Removal:
1. Remove the Rewind Hub Assembly; see Section 4.6.
2. Remove the E-Ring from the Rewind Hub shaft and remove the Inner Bearing.
