Removal and Replacement
4-21
3. Raise the lock then reconnect the cable to the Media Sensor.
4. Reinstall the Cover Assembly; see Section 4.1.
5. Perform calibration; see Section 2.1.2.
4.8 Drive Motor Assembly
Proceed with removal and replacement of the Drive Motor Assembly depending upon the type.
4.8.1 Belt Drive
Removal:
1. Turn OFF and unplug the printer.
2. Remove the Cover Assembly; see Section 4.1.
3. Disconnect the motor cable then remove the three Screws that secure the Drive Assembly to the
Centerplate Standoffs.

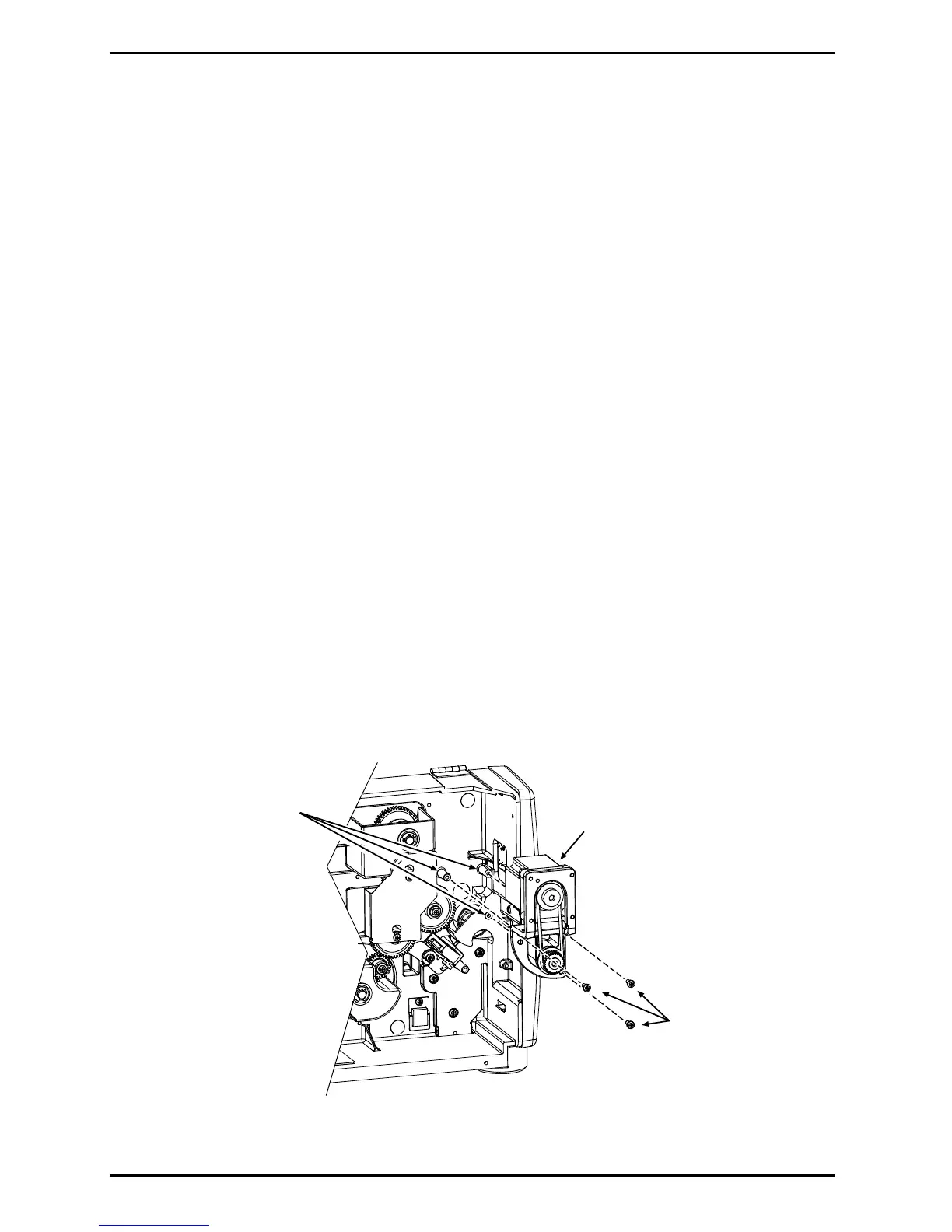

Screws
Drive
Assembly
Centerplate
Standoffs
