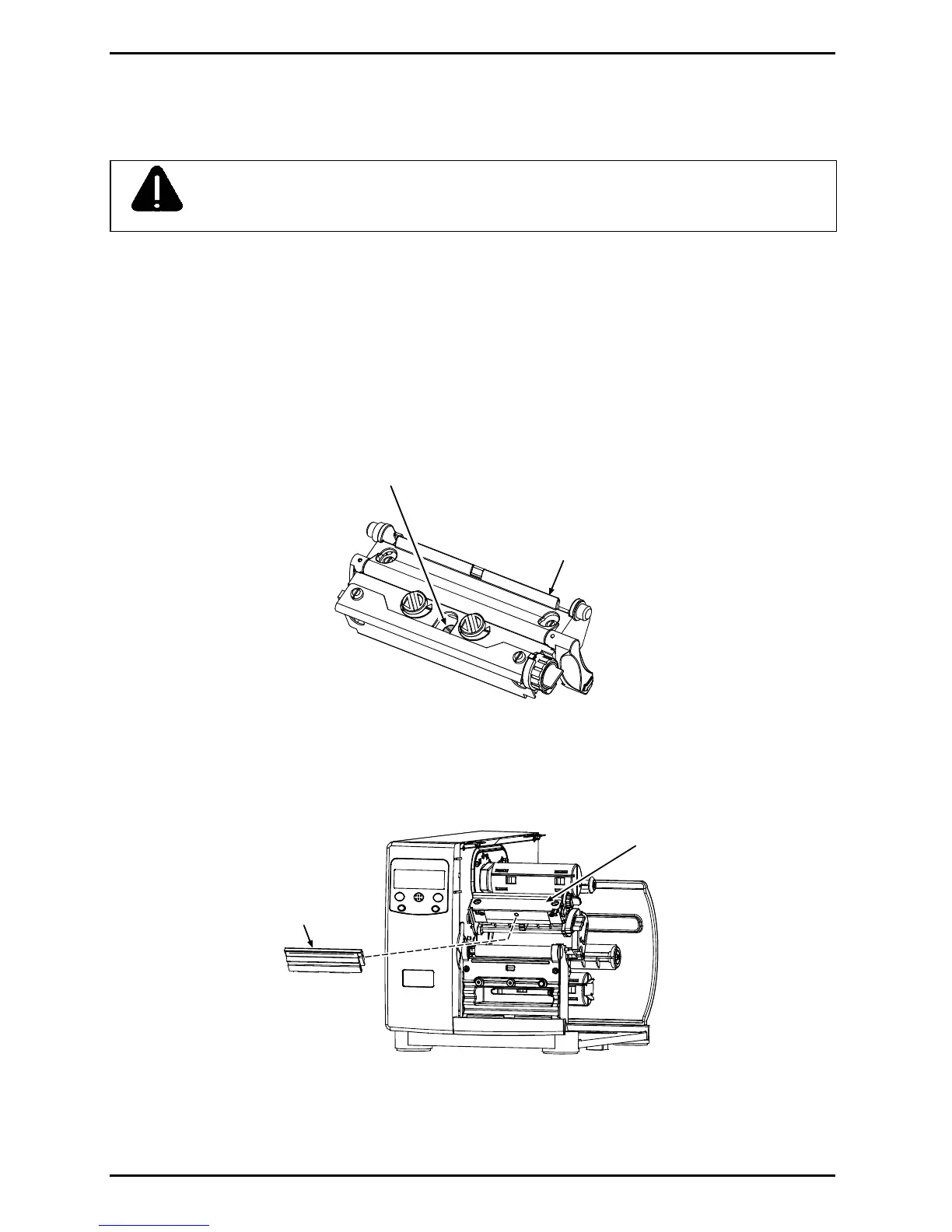

Removal and Replacement
4-7
4.4 Printhead
CAUTION
Use extreme care when handling the printhead.
If overvoltage is suspected, verify the supply voltage proceeding (see Section
2.2.4).
Removal:
1. Turn OFF and unplug the printer.
2. Raise the cover. With the Printhead Assembly lowered, loosen the Printhead Mounting Screw (it
will remain in the assembly).
Printhead
Mounting Screw
Printhead
Assembly
3. While carefully supporting the Printhead, raise the Printhead Assembly and disconnect the cables
then remove the Printhead from the Printhead Assembly.
Printhead
Printhead
Assembly
