Datamax I-Class Maintenance Manual

Removal and Replacement
4-8
Replacement:
1. Carefully reconnect both cables to the Printhead.

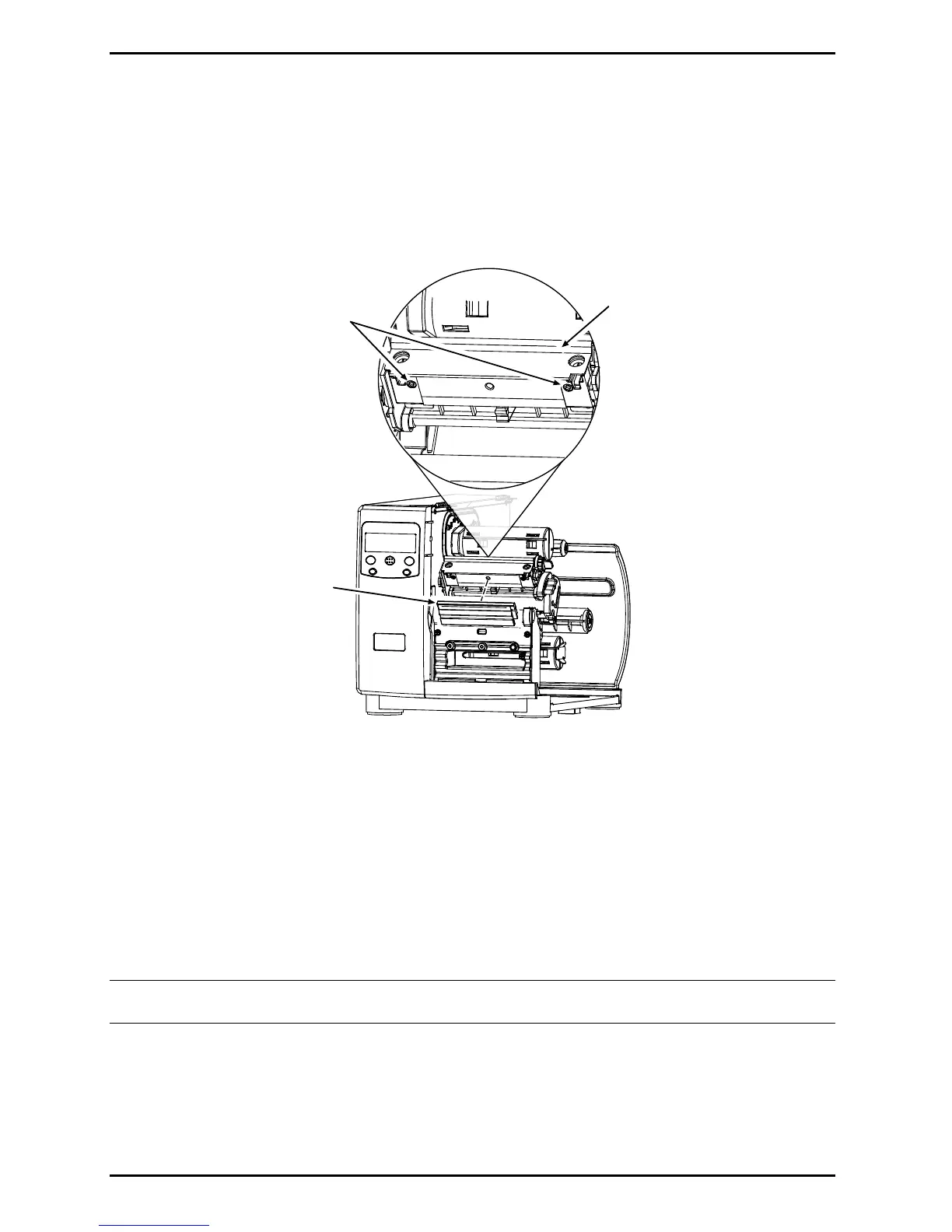

2. Position the Printhead onto the Locating Pins in the Printhead Assembly.
Printhead
Printhead
Assembly
Locating
Pins
3. Secure the Printhead to the Printhead Assembly with the Printhead Mounting Screw, but do NOT
over-tighten.
4. Clean the Printhead; see Section 2.5.1.
5. Lower and latch the Printhead Assembly.
6. Adjust the darkness; see Section 2.7.
 Note: Burn Line adjustment is not normally required as part of the replacement process;
however, if necessary, see Section 2.2.3.

Datamax I-Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi, or 600 dpi
Max Print Speed	10 inches per second (254 mm/s)
Interface	USB, Serial, Parallel
Media Types	Paper, Polyester, Polypropylene, Vinyl, Nylon
