Datamax I-Class Maintenance Manual

Removal and Replacement
4-10

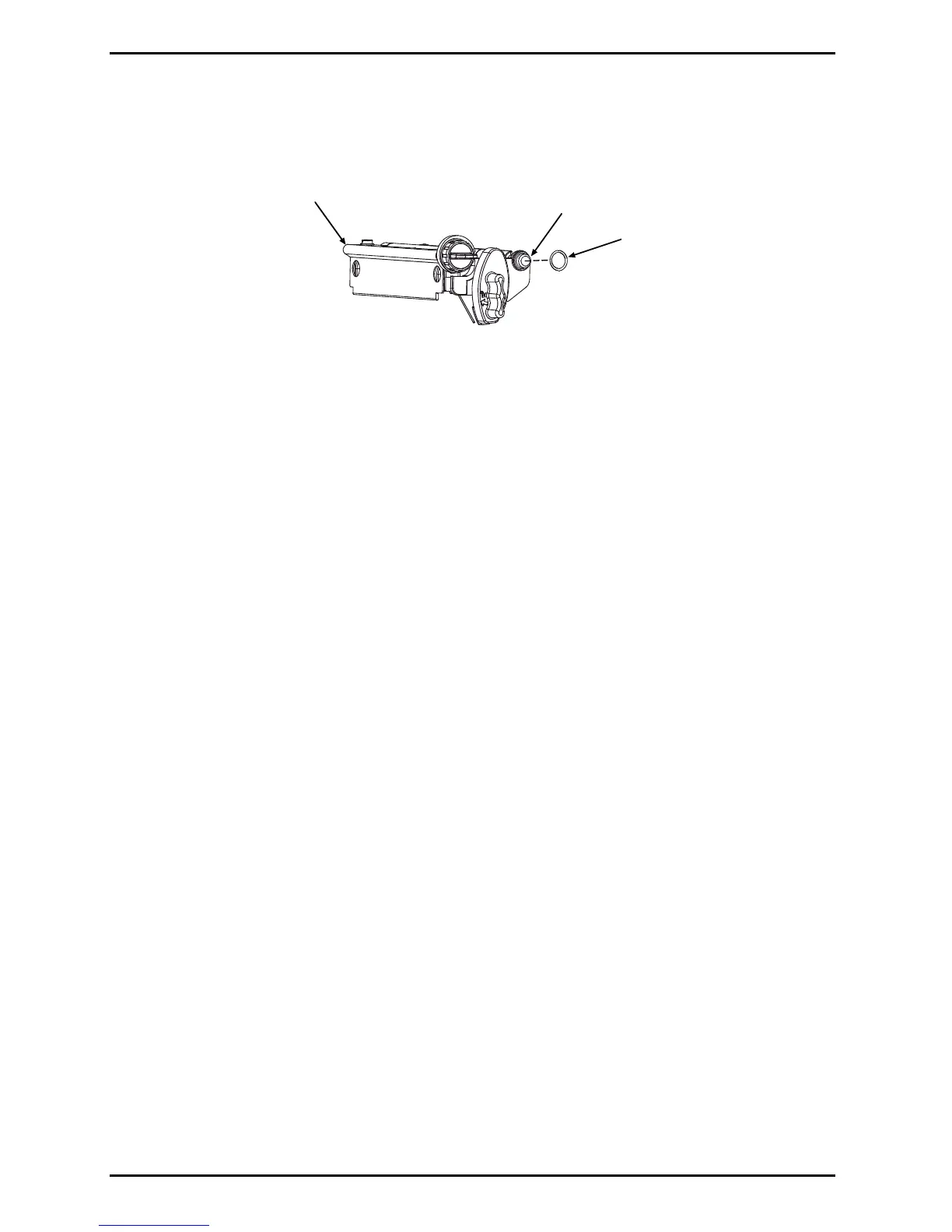

3. While holding the spring-loaded Printhead Assembly in the Centerplate bushing, place the Wavy
Washer onto the (opposite) Printhead Assembly Boss.
Printhead
Assembly
Boss
Wavy
Washer
4. Insert the Ribbon Idler shaft into the Centerplate bushing.
5. Reinstall the End Cap onto the Extrusion to captivate the Printhead Assembly Boss and Ribbon
Idler shaft then secure the End Cap with the two Screws.
6. Test the Printhead Assembly for correct movement and latching; also, check the Ribbon Idler for
proper rotation.
7. Reinstall the Printhead; see Section 4.4.

Datamax I-Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi, or 600 dpi
Max Print Speed	10 inches per second (254 mm/s)
Interface	USB, Serial, Parallel
Media Types	Paper, Polyester, Polypropylene, Vinyl, Nylon
