Datamax I-Class Maintenance Manual

Removal and Replacement
4-12

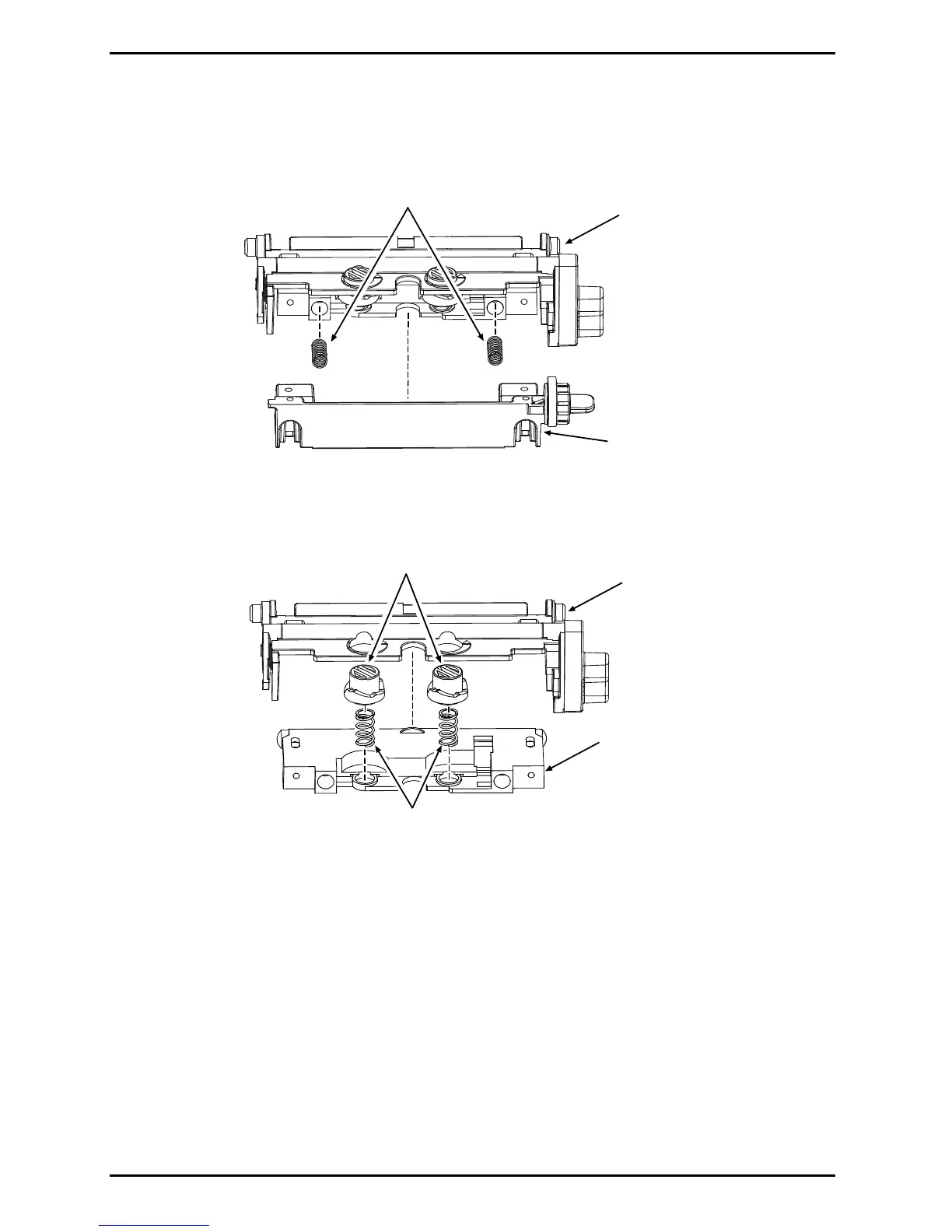

4. Carefully separate the Lower Carriage from the Printhead Assembly, compressing the spring-
loaded assembly as necessary to separate the parts, and then remove the Alignment Springs.
Printhead
Assembly
Lower
Carriage
Alignment
Springs
5. Separate the Middle Carriage from the Upper Carriage then remove the Cams and the Pressure
Springs.
Upper
Carriage
Middle
Carriage
Cams
Pressure
Springs

Datamax I-Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi, or 600 dpi
Max Print Speed	10 inches per second (254 mm/s)
Interface	USB, Serial, Parallel
Media Types	Paper, Polyester, Polypropylene, Vinyl, Nylon
