Datamax M-Class Mark II Maintenance Manual

Overview
1-1

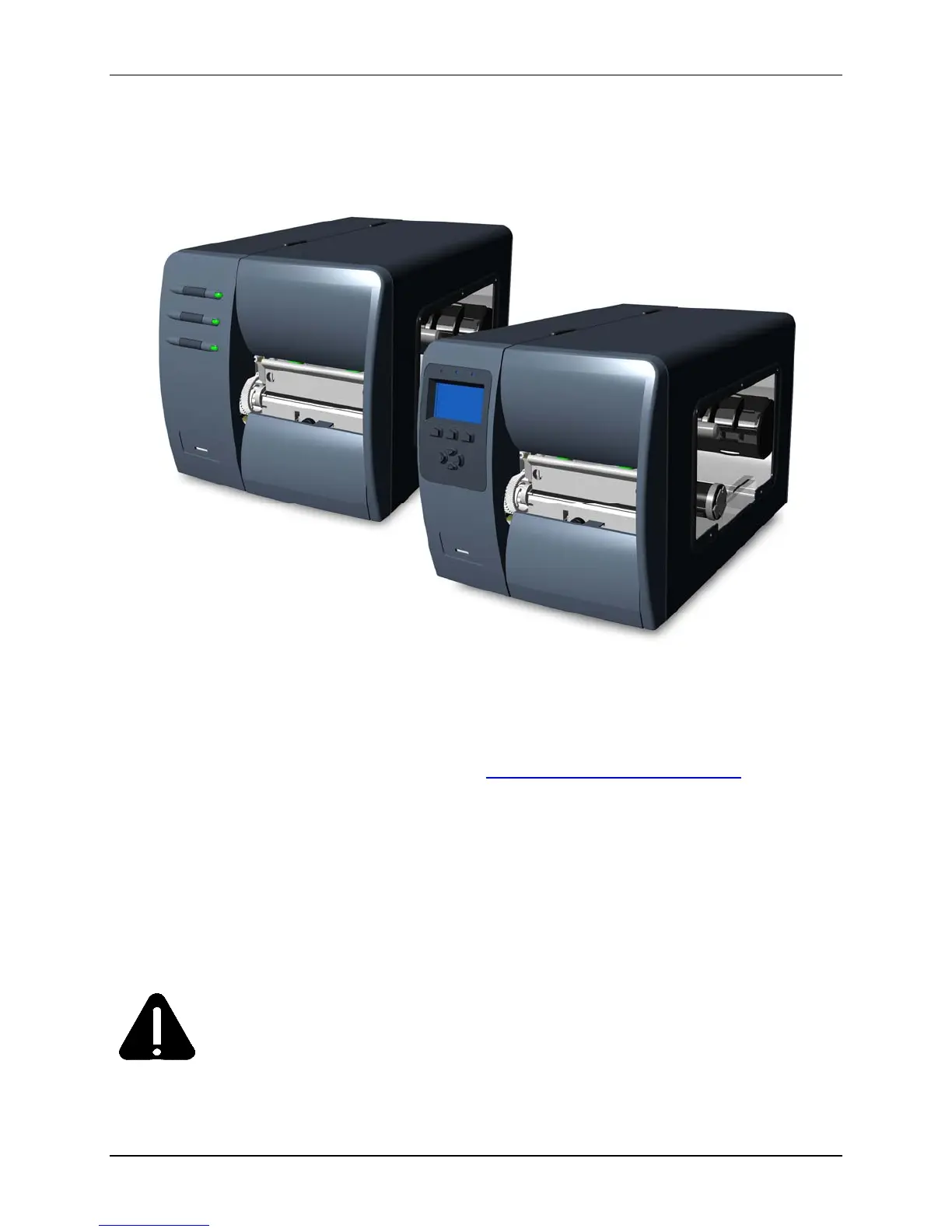

1.0 Introduction
This manual, which primarily includes technical information relating to the electrical and
mechanical components, is intended for use by qualified service personnel in the
maintenance and repair of M-Class Mark II printers. For related information, refer to the
following documents, available for download at http://www.datamax-oneil.com/
 For operating information, reference the Operator’s Manual (part number 88-2340-01).
 For software information, reference the Class Series 2 Programmer’s Manual (part
number 88-2341-01).
Important Information:
In this manual, the exclamation point inside an equilateral triangle is intended
to alert the technician to the presence of important operating, maintenance or
servicing information. Always, as with all electrical equipment, follow basic
safety precautions to avoid personal injury or printer damage.

Datamax M-Class Mark II Specifications

General

Media Sensor	Adjustable reflective and transmissive sensors
Print Method	Thermal Transfer
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Interface Options	USB, Serial, Ethernet, Parallel
Media Type	Roll-fed, die-cut, continuous, fan-fold, tags, ticket stock
Media Width	1.0 in (25.4 mm) to 4.65 in (118 mm)
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Media Roll Diameter	8 inches (203 mm) max
Ribbon Width	1 to 4.33 inches (25.4 to 110 mm)
Ribbon Length	1968 ft (600 m)
Ribbon Core	1 inch (25.4 mm)
Label Width Range	1.0 in (25.4 mm) to 4.65 in (118 mm)
Label Length Range	0.25 to 39 inches (6.35 to 991 mm)
