Datamax M-Class Mark II Maintenance Manual

Removal and Replacement
4-29
Installation:
1. Position the Media Hanger against the Centerplate and then secure it in place using the
three Screws.
2. Install the Main Logic PCB; see Section 4.4.

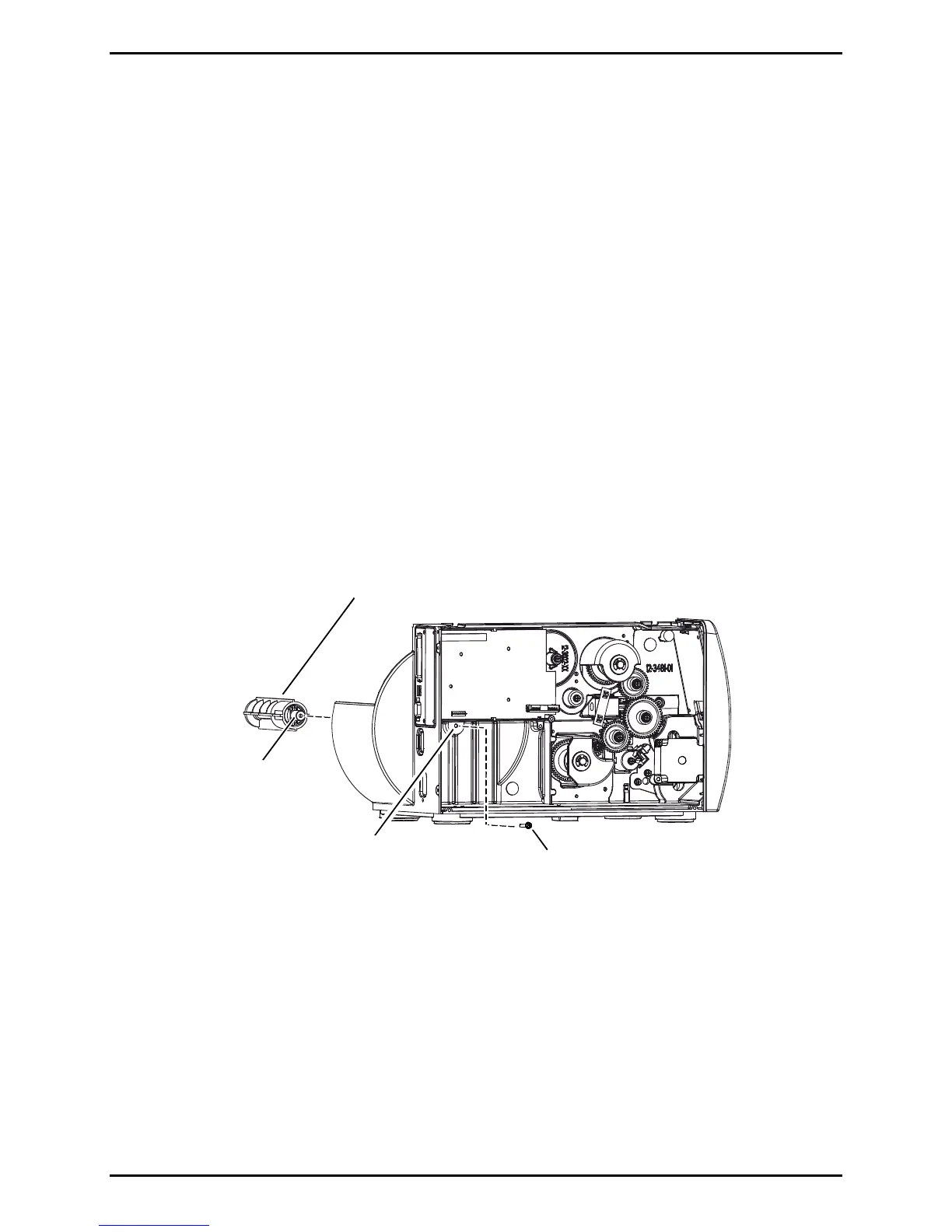

4.11.2 Media Hub
Removal:
1. Remove the Power Supply PCB; see Section 4.5.
2. Remove the Screw that secures the Media Hub Assembly to the Hub Mount and then
remove the assembly.
Media Hub Assembly
Screw
Shaft
Hub Mount
Installation:
1. Position the Media Hub Assembly into the Hub Mount and then secure it in place using
the Screw.
2. Install the Power Supply PCB; see Section 4.5.
