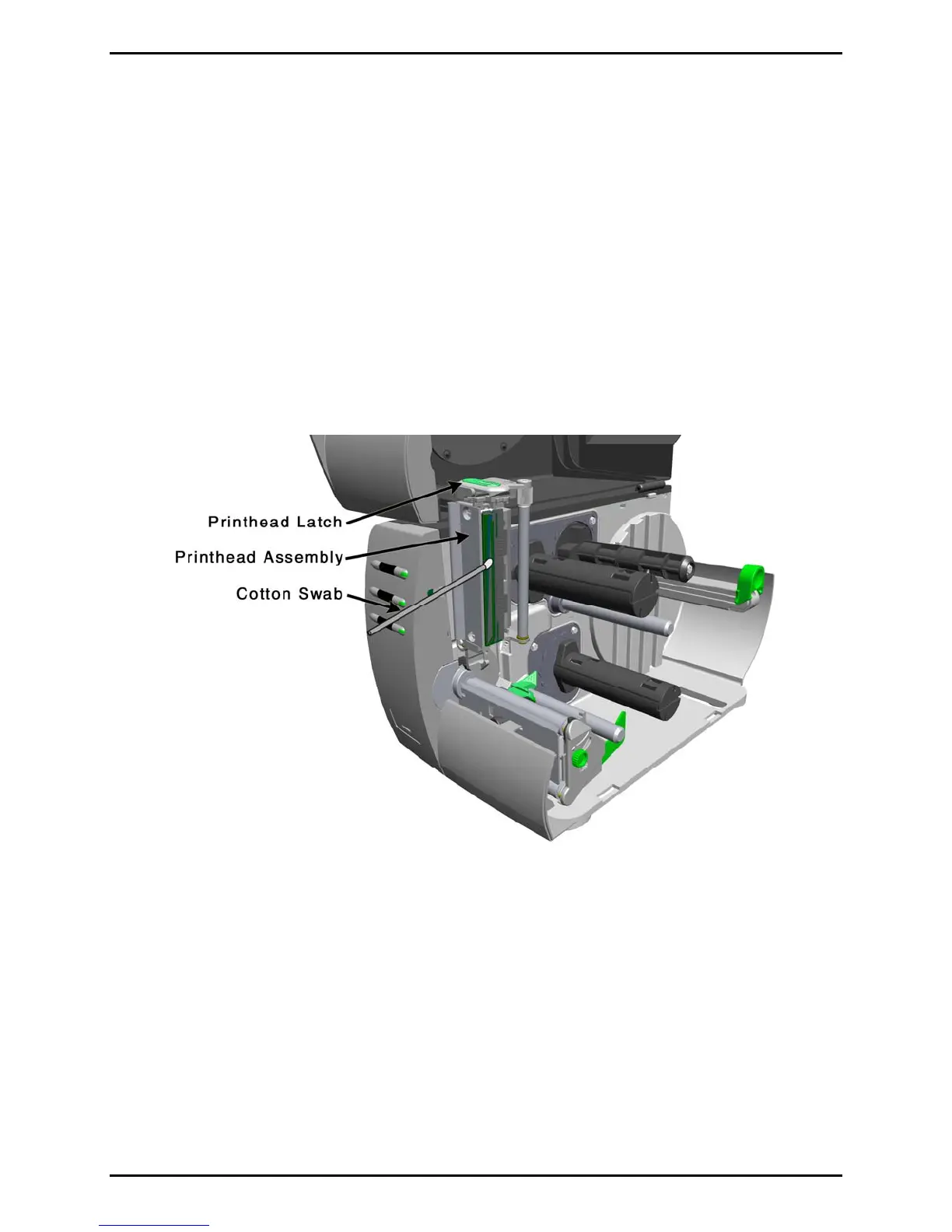

2.1.1.1 Cotton Swab Procedure
This procedure is recommended if using direct thermal media, or thermal transfer media
with a wax ribbon.
1. Perform the Preliminary Cleaning Steps, as described in Section 2.1.1.
2. Turn OFF and unplug the printer. Using a Cotton Swab moistened (not soaked) with
isopropyl alcohol, gently clean the entire Printhead surface, paying special attention to
the Burn Line, until all build-up is removed.
3. Allow the printhead to dry. Reinstall media (and ribbon, if needed). Lower and latch
the Printhead Assembly. (If necessary, perform a Media Width Adjustment; see Section
2.3.) Close the cover. Plug in and turn ON the printer. Run several sample labels and
examine the print quality. If streaks are still present, see Section 2.1.1.2; otherwise,
this completes the procedure.

Datamax M-Class Mark II Specifications

General

Media Sensor	Adjustable reflective and transmissive sensors
Print Method	Thermal Transfer
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Interface Options	USB, Serial, Ethernet, Parallel
Media Type	Roll-fed, die-cut, continuous, fan-fold, tags, ticket stock
Media Width	1.0 in (25.4 mm) to 4.65 in (118 mm)
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Media Roll Diameter	8 inches (203 mm) max
Ribbon Width	1 to 4.33 inches (25.4 to 110 mm)
Ribbon Length	1968 ft (600 m)
Ribbon Core	1 inch (25.4 mm)
Label Width Range	1.0 in (25.4 mm) to 4.65 in (118 mm)
Label Length Range	0.25 to 39 inches (6.35 to 991 mm)
