Datamax M-Class Mark II Maintenance Manual

Removal and Replacement
4-27

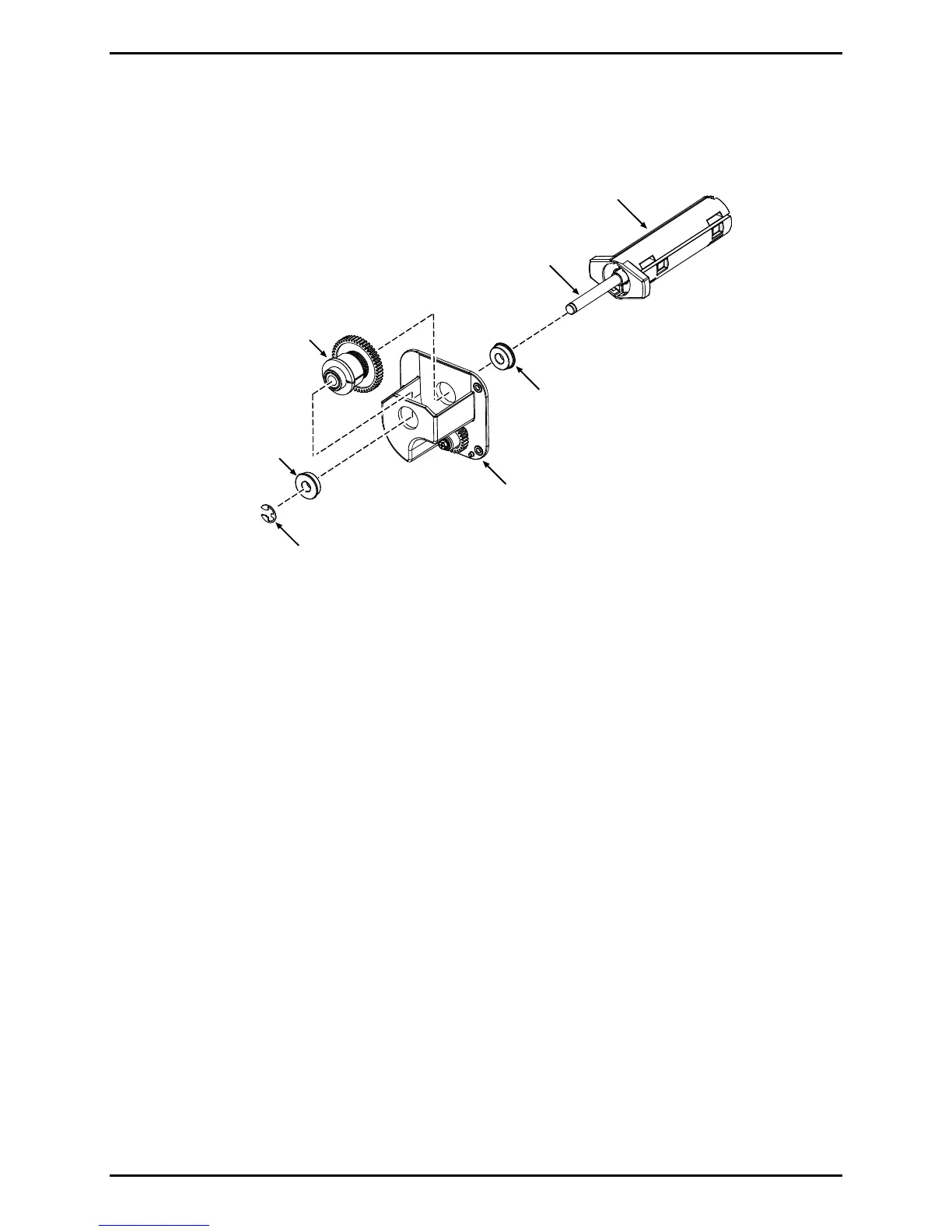

3. Slide out the Rewind Hub and Inner Bearing, and then remove the Clutch Assembly from
the Assembly Casting.
Inner
Bearing
C-Clip
Outer
Bearing
Clutch
Assembly
Rewind
Hub
Rewind
Hub Shaft
Assembly
Casting
Installation:
1. Position the Clutch Assembly in the Assembly Casting.
2. Install the Inner Bearing then slide the Rewind Hub Shaft through the Clutch Assembly
and Assembly Casting.
3. Install the Outer Bearing and secure the components with the C-Clip.
4. Install the Internal Rewinder; see Section 4.10.
4.10.2 Spur Gear
Removal:
1. Remove the Internal Rewinder; see Section 4.10.
2. Remove the Screw, Idler Post, and the Spur Gear from the Assembly Casting.

Datamax M-Class Mark II Specifications

General

Media Sensor	Adjustable reflective and transmissive sensors
Print Method	Thermal Transfer
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Interface Options	USB, Serial, Ethernet, Parallel
Media Type	Roll-fed, die-cut, continuous, fan-fold, tags, ticket stock
Media Width	1.0 in (25.4 mm) to 4.65 in (118 mm)
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Media Roll Diameter	8 inches (203 mm) max
Ribbon Width	1 to 4.33 inches (25.4 to 110 mm)
Ribbon Length	1968 ft (600 m)
Ribbon Core	1 inch (25.4 mm)
Label Width Range	1.0 in (25.4 mm) to 4.65 in (118 mm)
Label Length Range	0.25 to 39 inches (6.35 to 991 mm)
