Datamax M-Class Mark II Maintenance Manual

Adjustments and Maintenance
2-7
1. Turn OFF the Power Switch and unplug the power cord from the AC Receptacle.
2. Raise the Cover. Unlock and raise the Printhead Assembly.
3. Remove media and ribbon.

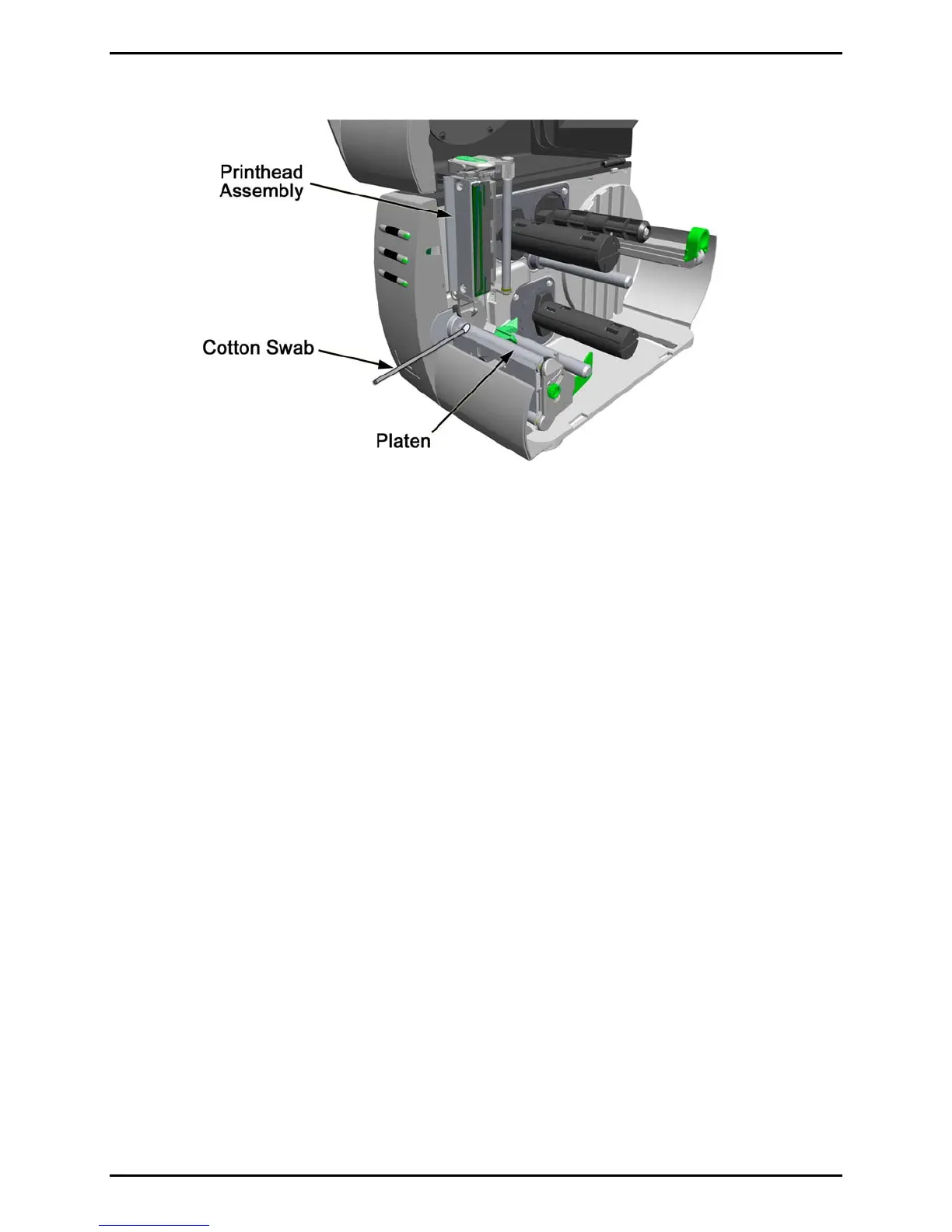

4. Using a Cotton Swab (or lint-free cloth) dampened with isopropyl alcohol, wipe the
Platen clean. Manually rotate the rollers as necessary, wiping, rotating, and repeating
until the surfaces of each are clean. Allow to dry.
2.1.4 Cleaning the Ribbon Path
Ribbon path components contaminated with ink buildup and grit can inhibit smooth flow and
result in wrinkling related problems. Clean the ribbon path components as follows:
1. Turn OFF the Power Switch and unplug the power cord from the AC Receptacle.
2. Raise the Cover. Remove media and ribbon.

Datamax M-Class Mark II Specifications

General

Media Sensor	Adjustable reflective and transmissive sensors
Print Method	Thermal Transfer
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Interface Options	USB, Serial, Ethernet, Parallel
Media Type	Roll-fed, die-cut, continuous, fan-fold, tags, ticket stock
Media Width	1.0 in (25.4 mm) to 4.65 in (118 mm)
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Media Roll Diameter	8 inches (203 mm) max
Ribbon Width	1 to 4.33 inches (25.4 to 110 mm)
Ribbon Length	1968 ft (600 m)
Ribbon Core	1 inch (25.4 mm)
Label Width Range	1.0 in (25.4 mm) to 4.65 in (118 mm)
Label Length Range	0.25 to 39 inches (6.35 to 991 mm)
